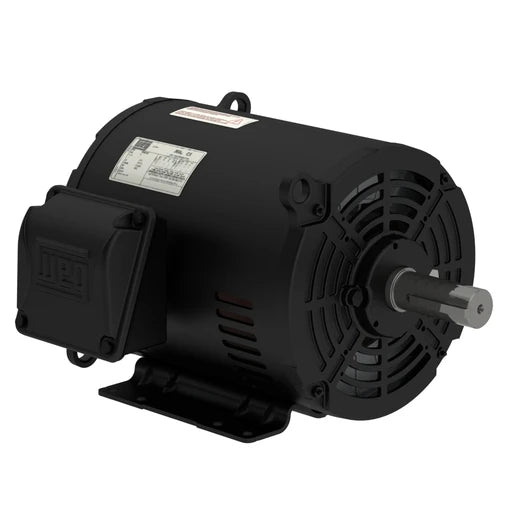

WEG 02036OT3V254T-S — Motor
Weg Electric 02036OT3V254T-S, 20 Hp, 3600 Rpm, 254/6T Frame, 200/400 Vac, ODP, 3 PH, Foot-mounted, ROLLED STEEL NEMA Premium Efficiency, 15521521
Overview
Weg Electric 02036OT3V254T-S, 20 Hp, 3600 Rpm, 254/6T Frame, 200/400 Vac, ODP, 3 PH, Foot-mounted, ROLLED STEEL NEMA Premium Efficiency, 15521521 SPECIFICATIONS Frame 254/6T Output 20 HP (15 kW) Number of Poles 2 Frequency 60 Hz Rated speed 3525 rpm Slip 2.08 % Rated voltage 200/400 V Rated current 54.7/27.4 A L. R. Amperes 328/164 A LRC 6.0x(Code G) No load current 19.6/9.78 A Rated torque 29.8 ft.lb Locked rotor torque 180 % Breakdown torque 240 % Locked rotor time 23s (cold) 13s (hot) Moment of inertia (J) 0.7848 sq.ft.lb Design B Insulation Class F Service factor 1.15 Temperature rise 80 K Duty Cycle Cont.(S1) Starting Method Direct On Line Ambient temperature -20°C to +40°C Altitude 1000 m.a.s.l. Enclosure IC01 - ODP Mounting F-1 Rotation¹ Both (CW and CCW) Noise level² 70.0 dB(A) Approx. weight³ 168 lb
Specifications
| Tag | WEG Electric |
|---|---|
| Weight | 168.0 lb |
Product details
| Manufacturer | WEG |
|---|---|
| Manufacturer part number | 02036OT3V254T-S |
| KKM catalog reference | WEG-02036OT3V254T-S |
| Product category | Motor |
| Published specifications | 2 attributes listed |
| Related part numbers | 7 other part numbers in this family |
Request a quote for this part
Email [email protected] or call (825) 454-5367 for pricing and availability.
Frequently Asked Questions
How much does 02036OT3V254T-S cost?
02036OT3V254T-S is listed at CA$2,306.09 (CAD) and can be ordered directly from this page with Add to Cart. That figure is a reference price and can change: your card is authorized at checkout and charged only once our order desk confirms the part, stock, and final price, and we email you first if anything has moved. Larger quantities or custom terms — email [email protected] for a volume quote.
Who manufactures the 02036OT3V254T-S?
02036OT3V254T-S is a WEG part. KKM Solutions sources WEG components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
Is 02036OT3V254T-S discontinued, and can I still get one?
KKM Solutions does not publish a manufacturer lifecycle status for 02036OT3V254T-S — check WEG's own product page for whether it is current, superseded, or end-of-life. It does not change what we can do: we source current-production, superseded and long-obsolete parts the same way, and where a part is genuinely unavailable we identify a form-fit-function equivalent. Send the part number through the quote form on this page, or use our obsolete part lookup at https://kkmsolutions.com/tools/obsolete-part-lookup/.
What are the key specifications of 02036OT3V254T-S?
Key specifications include Tag: WEG Electric; Weight: 168.0 lb. The full specification table on this page lists every published attribute for this part.
How quickly can 02036OT3V254T-S ship?
In-stock items are dispatched the same business day for orders placed by 11 AM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Variants & Related Part Numbers
Other WEG part numbers in this family:
- 02036OT3V254JM-S — WEG 02036OT3V254JM-S 20HP Three Phase JM Pump Motor
- 02036OT3V254JM-W40 — WEG 02036OT3V254JM-W40 20HP Three Phase JM Pump Motor
- 02036OT3V254JMV-S — WEG 02036OT3V254JMV-S 20HP Three Phase JM Pump Motor
- 02036OT3V254JP-S — WEG 02036OT3V254JP-S 20HP Three Phase JP Pump Motor
- 02036OT3V254JP-W40 — WEG 02036OT3V254JP-W40 20HP Three Phase JP Pump Motor
- 02036OT3V254JPV-S — WEG 02036OT3V254JPV-S 20HP Three Phase JP Pump Motor
- 02036OT3V254T-W40 — Weg Electric 02036OT3V254T-W40, 20 Hp, 3600 Rpm, 254T Frame, 200-208/400 Vac, ODP,…
Related Products

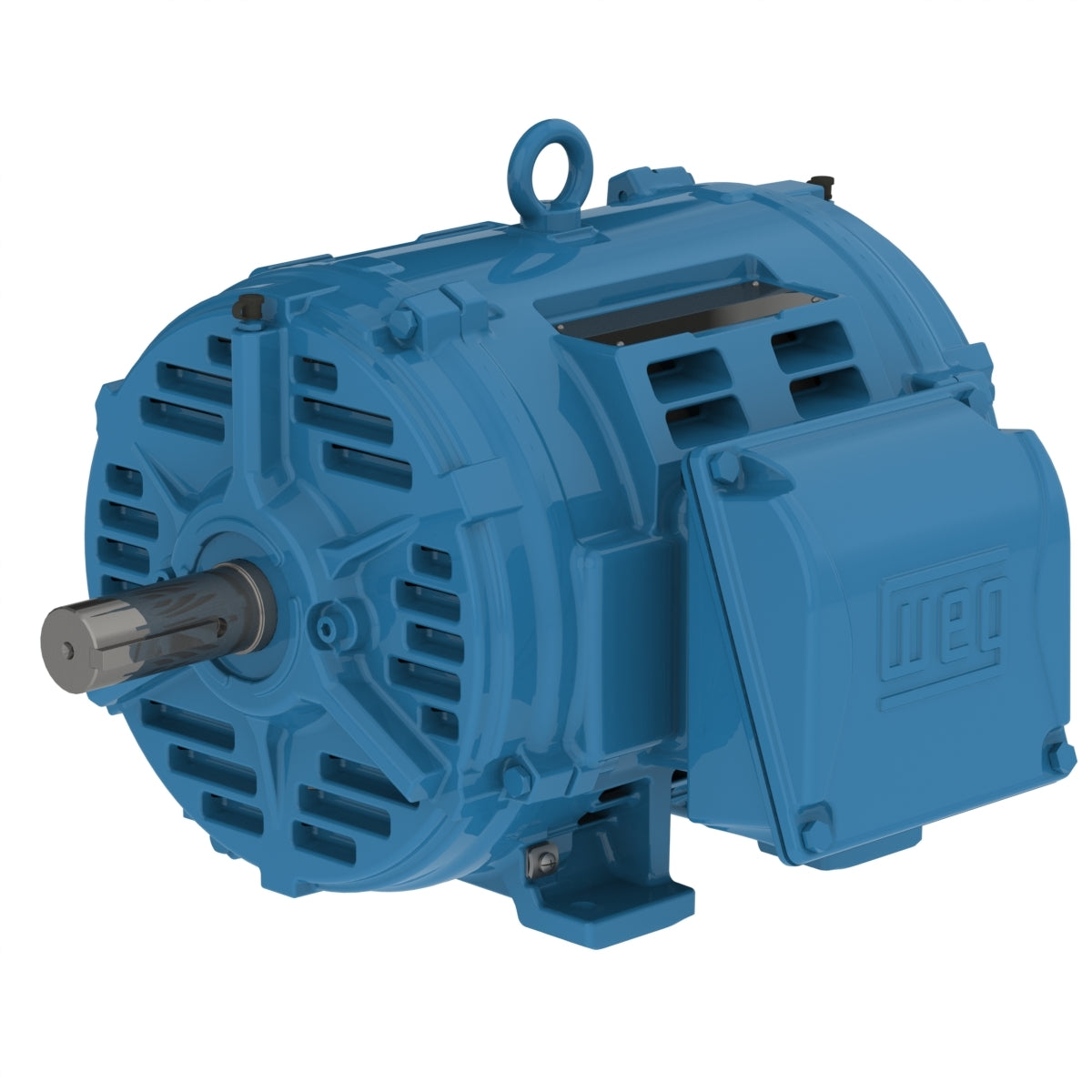

WEG Weg Electric 02036OT3P254TF2-W40, 20 Hp, 3600 Rpm, 254T Frame,…
