WEG 02036OP3EFP254T-W40 — Motor
Weg Electric 02036OP3EFP254T-W40, 20 Hp, 3600 Rpm, 254T Frame, 230/460//380 Vac, ODP, 3 PH, Foot-mounted, W40 High Efficiency.
Overview
02036OP3EFP254T-W40, 20 Hp, 3600 Rpm, 254T Frame, 230/460//380 Vac, ODP, 3 PH, Foot-mounted, W40 High Efficiency. Engineering Data W40 is a platform of Open Drip Proof motors (ODP) designed for industrial application in order to have a compact and light solution for the customer. Product features Standard NEMA MG-1 Frequency 60//50 Hz Voltage 230/460//380 V Number of poles 2 Degree of Protection IP23 Synchronous speed 3600 rpm Output rating 20 HP Mounting Foot-mounted Flange Without Mounting F-1 Terminal box¹ Left position Enclosure IC01 - ODP Frame 254T Output 20 HP (15 kW) Number of Poles 2 Frequency 60 Hz Rated speed 3530 rpm Slip 1.94 % Rated voltage 230/460 V Rated current 48.6/24.3 A L. R. Amperes 287/143 A LRC 5.9x(Code G) No load current 14.0/7.00 A Rated torque 29.8 ft.lb Locked rotor torque 170 % Breakdown torque 240 % Locked rotor time 28s (cold) 16s (hot) Moment of inertia (J) 0.8718 sq.ft.lb Design B Insulation Class F Service factor 1.15 Temperature rise 80 K Duty Cycle Cont.(S1) Starting Method Direct On Line Ambient temperature -20°C to +40°C Altitude 1000 m.a.s.l. Degree of Protection IP23 Enclosure IC01 - ODP Mounting F-1 Rotation¹ Both (CW and CCW)
Specifications
| Tag | WEG Electric |
|---|---|
| Weight | 207.0 lb |
Product details
| Manufacturer | WEG |
|---|---|
| Manufacturer part number | 02036OP3EFP254T-W40 |
| KKM catalog reference | WEG-02036OP3EFP254T-W40 |
| Product category | Motor |
| Published specifications | 2 attributes listed |
| Related part numbers | 4 other part numbers in this family |
Request a quote for this part
Email [email protected] or call (825) 454-5367 for pricing and availability.
Frequently Asked Questions
How much does 02036OP3EFP254T-W40 cost?
02036OP3EFP254T-W40 is listed at CA$1,924.80 (CAD) and can be ordered directly from this page with Add to Cart. That figure is a reference price and can change: your card is authorized at checkout and charged only once our order desk confirms the part, stock, and final price, and we email you first if anything has moved. Larger quantities or custom terms — email [email protected] for a volume quote.
Who manufactures the 02036OP3EFP254T-W40?
02036OP3EFP254T-W40 is a WEG part. KKM Solutions sources WEG components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
Is 02036OP3EFP254T-W40 discontinued, and can I still get one?
KKM Solutions does not publish a manufacturer lifecycle status for 02036OP3EFP254T-W40 — check WEG's own product page for whether it is current, superseded, or end-of-life. It does not change what we can do: we source current-production, superseded and long-obsolete parts the same way, and where a part is genuinely unavailable we identify a form-fit-function equivalent. Send the part number through the quote form on this page, or use our obsolete part lookup at https://kkmsolutions.com/tools/obsolete-part-lookup/.
What are the key specifications of 02036OP3EFP254T-W40?
Key specifications include Tag: WEG Electric; Weight: 207.0 lb. The full specification table on this page lists every published attribute for this part.
How quickly can 02036OP3EFP254T-W40 ship?
In-stock items are dispatched the same business day for orders placed by 11 AM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Variants & Related Part Numbers
Other WEG part numbers in this family:

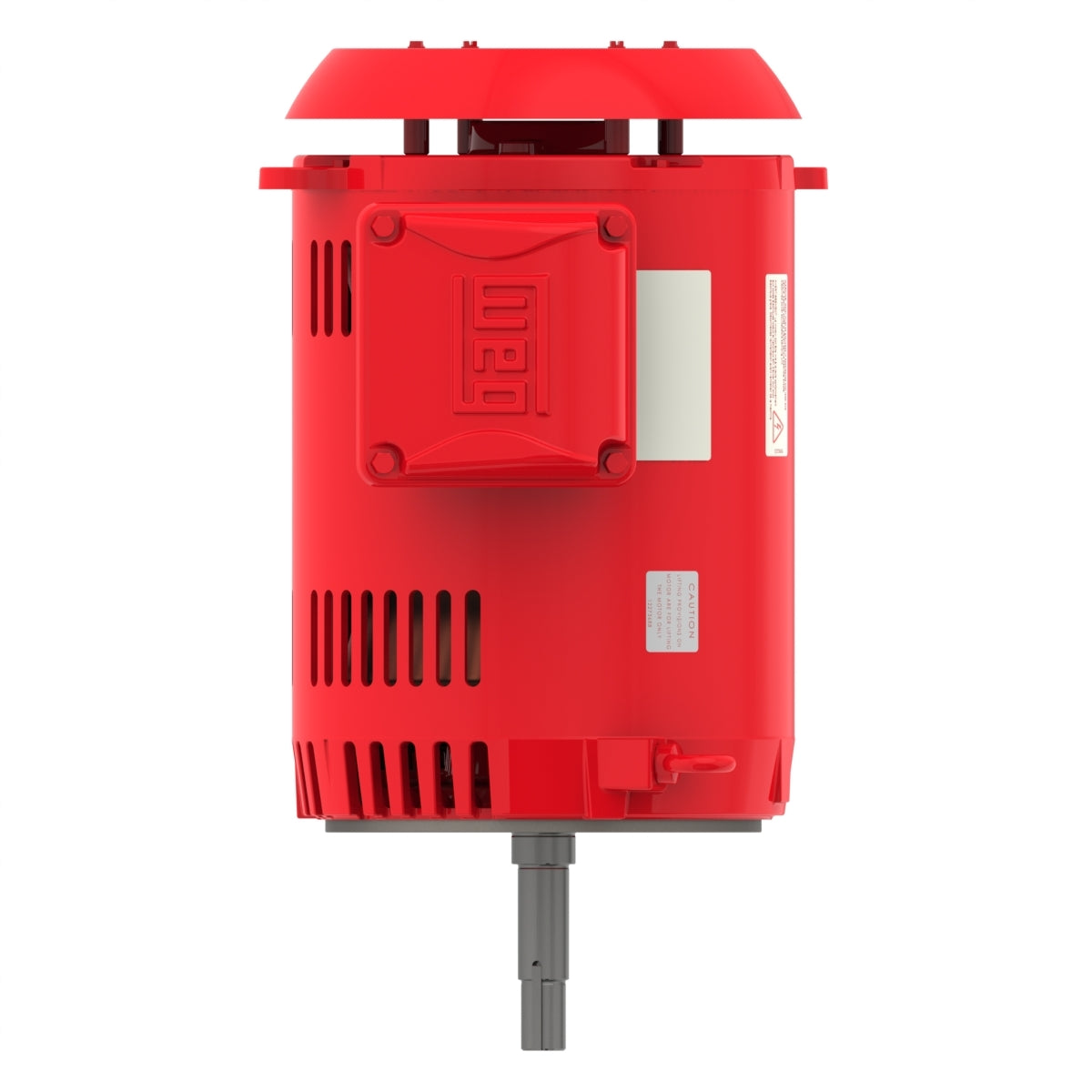

- 02036OP3EFP254JMV-S — Weg Electric 02036OP3EFP254JMV-S, 20 Hp, 3600 Rpm, 254/6JM Frame, 230/460//190-220/380-415 Vac, ODP,…
- 02036OP3EFP254T-S — Weg 02036OP3EFP254T-S 20HP 3600RPM three-phase open drip proof motor with 254T NEMA…
- 02036OP3EFP254TC-S — Weg Electric 02036OP3EFP254TC-S, 20 Hp, 3600 Rpm, 254/6TC Frame, 230/460//190-220/380-415 Vac, ODP,…
- 02036OP3EFP254TC-W40 — Weg 02036OP3EFP254TC-W40 W40 line high efficiency EPAct ODP three-phase motor, 20 HP,…
Related Products
WEG Weg Electric 02036OP3EFP254JMV-S, 20 Hp, 3600 Rpm, 254/6JM Frame,…

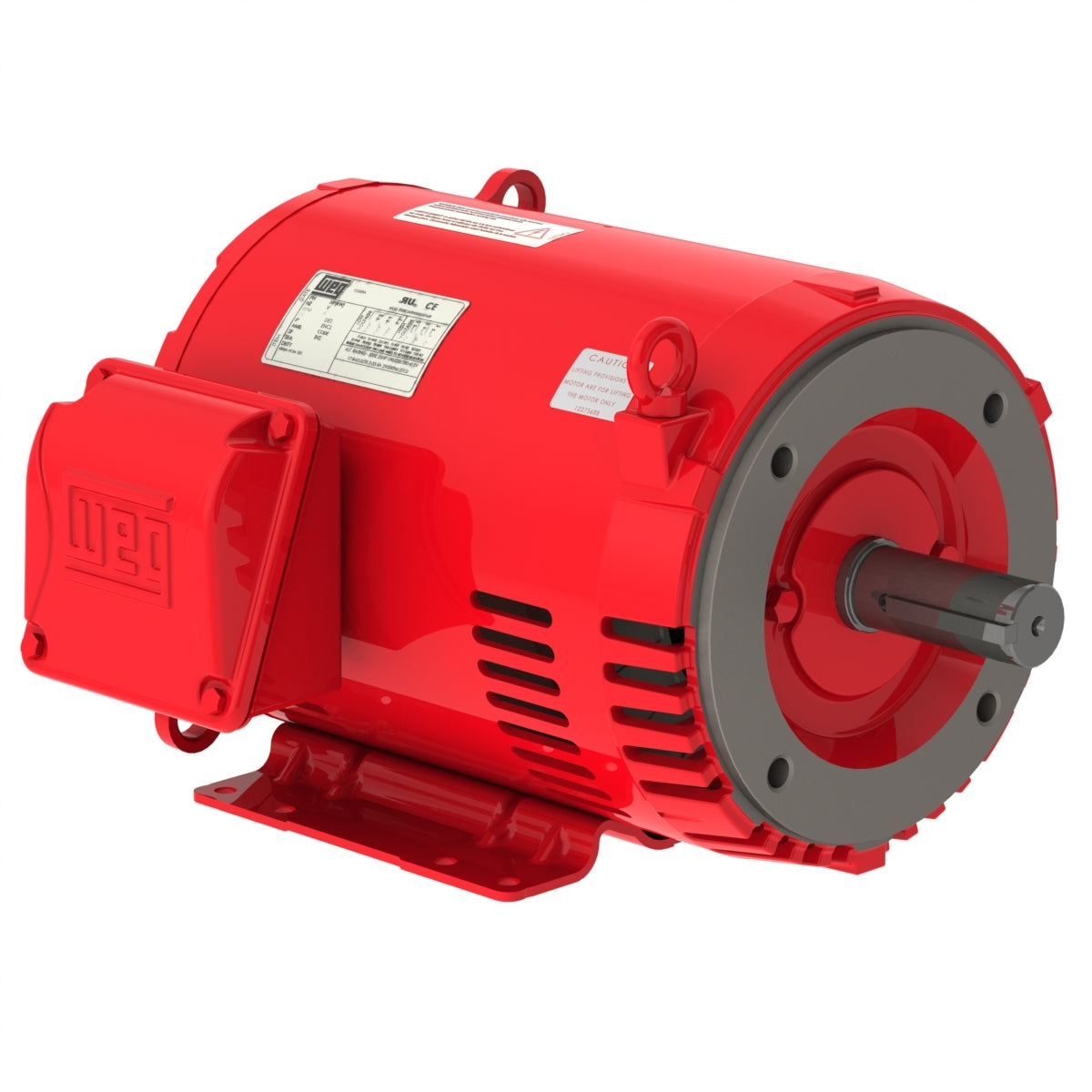

WEG Weg Electric 02036OP3EFP254TC-S, 20 Hp, 3600 Rpm, 254/6TC Frame,…
WEG Weg Electric, 02036ET3V256TC-S, 20 HP, 254/6TC FR, 3Ph, 200/400…

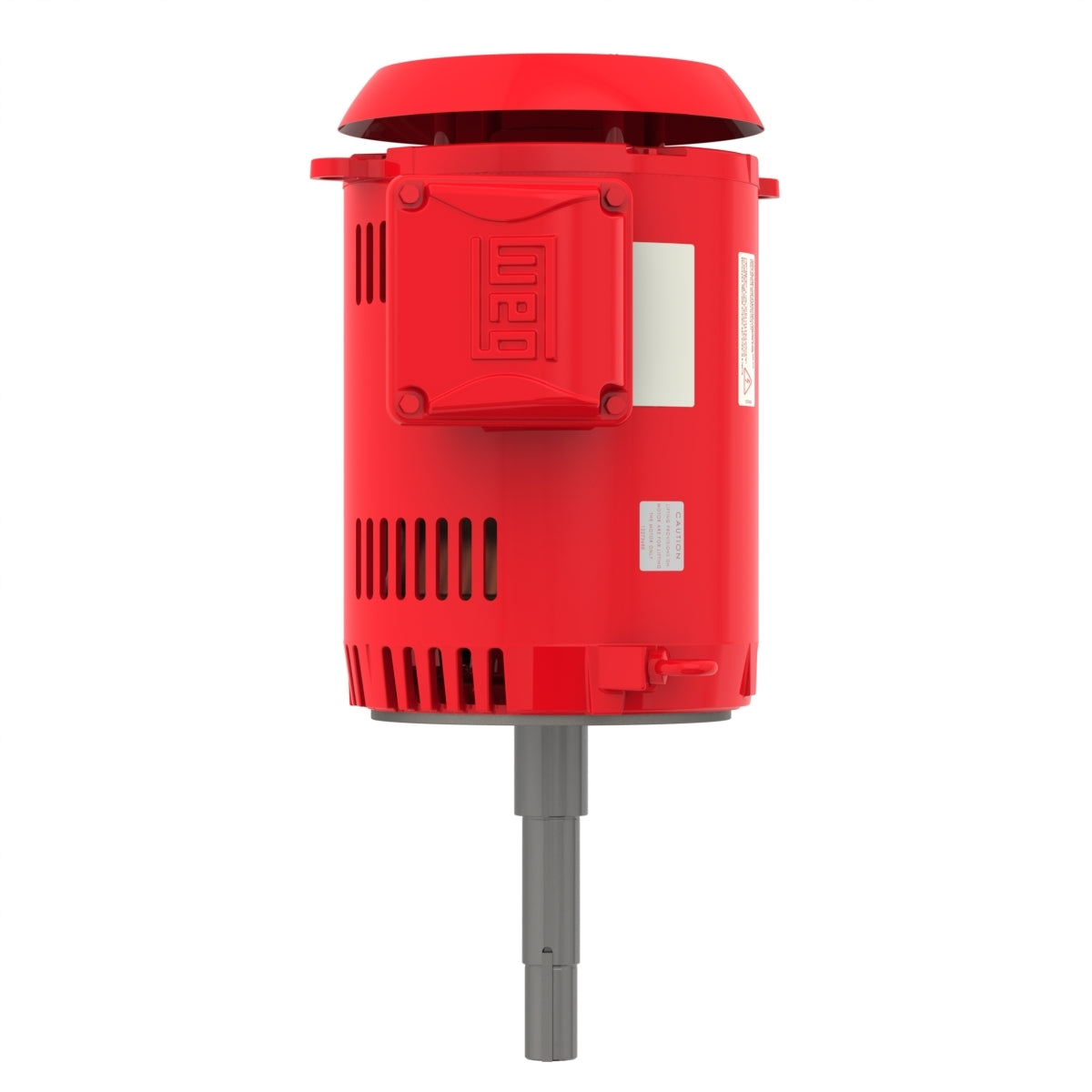

WEG Weg Electric 02036OP3HFP254JMV-S, 20 Hp, 3600 Rpm, 254/6JM Frame,…

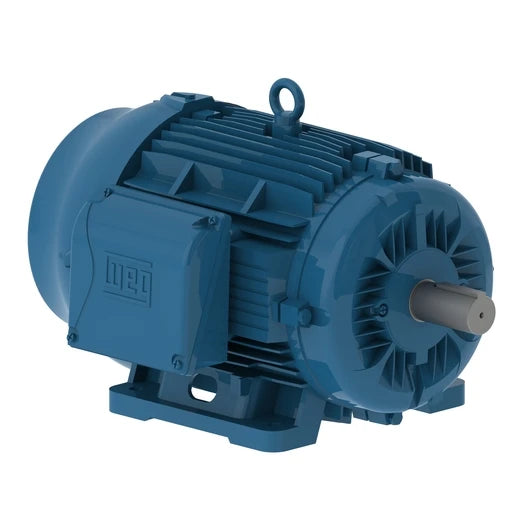

WEG Weg Electric 02036ET3V256T-W22, 20 Hp, 3600 Rpm, 254/6T Frame,…
