WEG 02036ET3H256JM-S — Close Coupled Pump Motors
WEG 02036ET3H256JM-S WEG Close Coupled Pump Motor (20 HP, 3 Phase, 575 Voltage, TEFC Enclosure, 3600 RPM, 254/6JM Frame)
Overview
WEG 02036ET3H256JM-S, Close-Coupled Pump Motors Type, 20 HP, 3 Phase, 575 Voltage, TEFC Enclosure, 3600 RPM, 254/6JM Frame, Applications High performance with maximum energy efficiency, this is the meaning of the new WEG electric motor. High efficiency and Low cost of Ownership throughout the entire motor lifetime have been the basis for the W22 development. A design created to anticipate concepts on performance and energy savings. Features Class F insulation (Impregnation Resin and Magnet wire are class H) Regreasable ball bearings (Frames 254JM/JP and up) Gasketed conduit box Optimized ventilation system for cooler operation and reduced noise levels Solid base for reduced vibration levels Specifications Brand WEG Catalog Number 02036ET3H256JM-S Type Close-Coupled Pump Motors HP 20 Phase 3 Voltage 575 Enclosure TEFC RPM 3600 Service Factor 1 .15 Frame 254/6JM FL Amps @ High 18 .2 FL. Eff (%) 91 .0 C Dimension (in) 24 .843 Notes See Support Documents Support Documents (pdf)
Specifications
| Tag | WEG Pump Motors |
|---|---|
| Weight | 262.0 lb |
Product details
| Manufacturer | WEG |
|---|---|
| Manufacturer part number | 02036ET3H256JM-S |
| KKM catalog reference | WEG-02036ET3H256JM-S |
| Product category | Close Coupled Pump Motors |
| Published specifications | 2 attributes listed |
| Related part numbers | 10 other part numbers in this family |
Request a quote for this part
Email [email protected] or call (825) 454-5367 for pricing and availability.
Frequently Asked Questions
How much does 02036ET3H256JM-S cost?
02036ET3H256JM-S is listed at CA$3,884.98 (CAD) and can be ordered directly from this page with Add to Cart. That figure is a reference price and can change: your card is authorized at checkout and charged only once our order desk confirms the part, stock, and final price, and we email you first if anything has moved. Larger quantities or custom terms — email [email protected] for a volume quote.
Who manufactures the 02036ET3H256JM-S?
02036ET3H256JM-S is a WEG part. KKM Solutions sources WEG components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
Is 02036ET3H256JM-S discontinued, and can I still get one?
KKM Solutions does not publish a manufacturer lifecycle status for 02036ET3H256JM-S — check WEG's own product page for whether it is current, superseded, or end-of-life. It does not change what we can do: we source current-production, superseded and long-obsolete parts the same way, and where a part is genuinely unavailable we identify a form-fit-function equivalent. Send the part number through the quote form on this page, or use our obsolete part lookup at https://kkmsolutions.com/tools/obsolete-part-lookup/.
What are the key specifications of 02036ET3H256JM-S?
Key specifications include Tag: WEG Pump Motors; Weight: 262.0 lb. The full specification table on this page lists every published attribute for this part.
How quickly can 02036ET3H256JM-S ship?
In-stock items are dispatched the same business day for orders placed by 11 AM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Variants & Related Part Numbers
Other WEG part numbers in this family:
- 02036ET3H256JM-SG — Weg Electric 02036ET3H256JM-SG, 20 Hp, 3600 Rpm, 254/6JM Frame, 575 Vac, TEFC,…
- 02036ET3H256JM-W22 — Weg 02036ET3H256JM-W22 20HP 3600RPM NEMA Premium TEFC three-phase motor with 256JM close-coupled…
- 02036ET3H256JP-S — Weg Electric 02036ET3H256JP-S, 20 Hp, 3600 Rpm, 254/6JP Frame, 575 Vac, TEFC,…
- 02036ET3H256JP-W22 — Weg 02036ET3H256JP-W22 20HP 3600RPM NEMA Premium efficiency three-phase TEFC motor with 256JP…
- 02036ET3H256T-S — WEG 02036ET3H256T-S WEG Motor (20 HP, 3600 RPM, 3 Phase, 60 Hz,…
- 02036ET3H256T-SG — Weg Electric 02036ET3H256T-SG, 20 Hp, 3600 Rpm, 254/6T Frame, 575 Vac, TEFC,…
- 02036ET3H256T-W22 — Weg 02036ET3H256T-W22 20HP 3600RPM NEMA Premium efficiency three-phase motor with 256T frame…
- 02036ET3H256T-W22G — Weg Electric 02036ET3H256T-W22G, 20 Hp, 3600 Rpm, 254/6T Frame, 575 Vac, TEFC,…
- 02036ET3H256TC-S — WEG 02036ET3H256TC-S WEG Motor (20 HP, 3600 RPM, 3 Phase, 60 Hz,…
- 02036ET3H256TC-W22 — Weg 02036ET3H256TC-W22 NEMA Premium TEFC three-phase motor, 20 HP, 3600 RPM, 575V,…
Related Products
WEG WEG 02018ET3H256JM-W22 WEG Motor, Close Coupled Pump Motor (20…
WEG WEG 02018ET3H256JM-S WEG Close Coupled Pump Motor (20 HP,…
WEG WEG 01536ET3V254JM-S WEG Close Coupled Pump Motor (15 HP,…

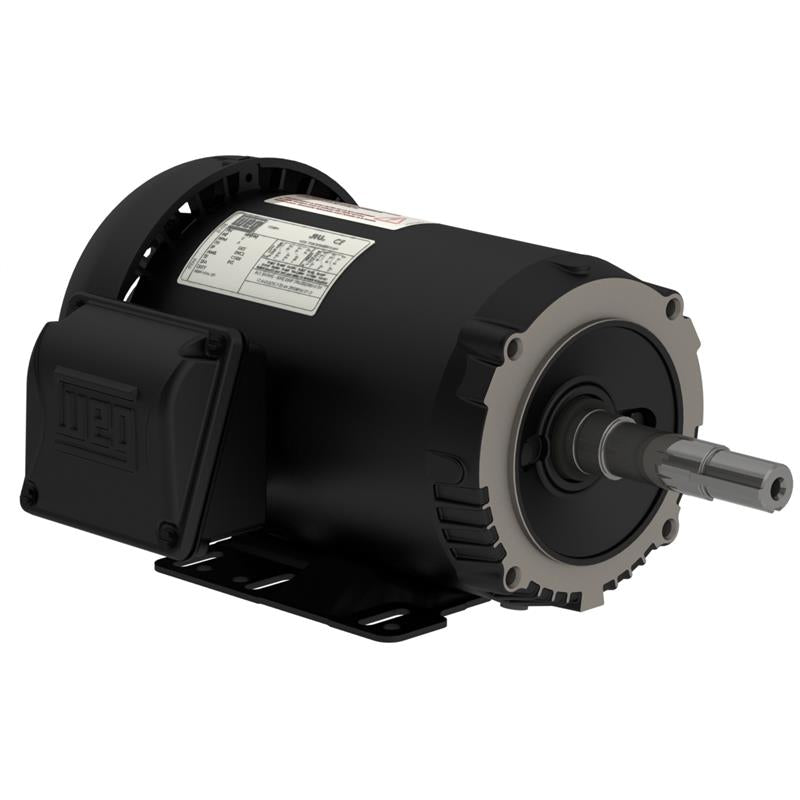

WEG WEG 01536ET3H254JM-S WEG Close Coupled Pump Motor (15 HP,…
