WEG 02018OT3V256JM-S — Motor
Weg Electric 02018OT3V256JM-S, 20 Hp, 1800 Rpm, 254/6JM Frame, 200/400 Vac, ODP, 3 PH, Foot-mounted, Rolled Steel JM Pump NEMA Premium Efficiency.
Overview
02018OT3V256JM-S, 20 Hp, 1800 Rpm, 254/6JM Frame, 200/400 Vac, ODP, 3 PH, Foot-mounted, Rolled Steel JM Pump NEMA Premium Efficiency. Engineering Data The Rolled Steel motors line were developed for applications that demand performance, robustness and low weight integrated into a single product. The electrical and mechanical concept of the line make the motor present an optimum cost-benefit, providing reliability and energy savings. Product features Standard NEMA MG-1 Frequency 60 Hz Voltage 200/400 V Number of poles 4 Synchronous speed 1800 rpm Output rating 20 HP Mounting Foot-mounted Flange C Mounting F-1 Terminal box¹ Left position Enclosure IC01 - ODP Frame 254/6JM Output 20 HP (15 kW) Number of Poles 4 Frequency 60 Hz Rated speed 1770 rpm Slip 1.67 % Rated voltage 200/400 V Rated current 57.5/28.8 A L. R. Amperes 362/181 A LRC 6.3x(Code G) No load current 26.3/13.1 A Rated torque 59.3 ft.lb Locked rotor torque 240 % Breakdown torque 290 % Locked rotor time 27s (cold) 15s (hot) Moment of inertia (J) 2.23 sq.ft.lb Design B Insulation Class F Service factor 1.15 Temperature rise 80 K Duty Cycle Cont.(S1) Starting Method Direct On Line Ambient temperature -20°C to +40°C Altitude 1000 m.a.s.l. Enclosure IC01 - ODP Mounting F-1 Rotation¹ Both (CW and CCW) Noise level² 64.0 dB(A)
Specifications
| Tag | WEG Electric |
|---|---|
| Weight | 228.0 lb |
Product details
| Manufacturer | WEG |
|---|---|
| Manufacturer part number | 02018OT3V256JM-S |
| KKM catalog reference | WEG-02018OT3V256JM-S |
| Product category | Motor |
| Published specifications | 2 attributes listed |
| Related part numbers | 6 other part numbers in this family |
Request a quote for this part
Email [email protected] or call (825) 454-5367 for pricing and availability.
Frequently Asked Questions
How much does 02018OT3V256JM-S cost?
02018OT3V256JM-S is listed at CA$3,161.71 (CAD) and can be ordered directly from this page with Add to Cart. That figure is a reference price and can change: your card is authorized at checkout and charged only once our order desk confirms the part, stock, and final price, and we email you first if anything has moved. Larger quantities or custom terms — email [email protected] for a volume quote.
Who manufactures the 02018OT3V256JM-S?
02018OT3V256JM-S is a WEG part. KKM Solutions sources WEG components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
Is 02018OT3V256JM-S discontinued, and can I still get one?
KKM Solutions does not publish a manufacturer lifecycle status for 02018OT3V256JM-S — check WEG's own product page for whether it is current, superseded, or end-of-life. It does not change what we can do: we source current-production, superseded and long-obsolete parts the same way, and where a part is genuinely unavailable we identify a form-fit-function equivalent. Send the part number through the quote form on this page, or use our obsolete part lookup at https://kkmsolutions.com/tools/obsolete-part-lookup/.
What are the key specifications of 02018OT3V256JM-S?
Key specifications include Tag: WEG Electric; Weight: 228.0 lb. The full specification table on this page lists every published attribute for this part.
How quickly can 02018OT3V256JM-S ship?
In-stock items are dispatched the same business day for orders placed by 11 AM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Variants & Related Part Numbers
Other WEG part numbers in this family:
- 02018OT3V256T-S — WEG 02018OT3V256T-S WEG Motor (20 HP, 1800 RPM, 3 Phase, 60 Hz,…
- 02018OT3V256T-SG — WEG 02018OT3V256T-SG 20HP Three Phase AEGIS Shaft Grounding Ring Rolled Steel Motor
- 02018OT3V256T-W40 — Weg Electric 02018OT3V256T-W40, 20 Hp, 1800 Rpm, 254/6T Frame, 200-208/400 Vac, ODP,…
- 02018OT3V256TC-S — WEG 02018OT3V256TC-S WEG Motor (20 HP, 1800 RPM, 3 Phase, 254/6TC, ODP,…
- 02018OT3V256TC-SG — WEG 02018OT3V256TC-SG 20HP Three Phase AEGIS Shaft Grounding Ring Rolled Steel Motor
- 02018OT3V256TC-W40 — WEG 02018OT3V256TC-W40 WEG Motor (20 HP, 1800 RPM, 3 Phase, 256TC Frame,…
Related Products
WEG Weg Electric 02018OT3P256T-W40, 20 Hp, 254/6T Frame, 1800 RPM,…
WEG Weg Electric 02018OT3V256T-W40, 20 Hp, 1800 Rpm, 254/6T Frame,…

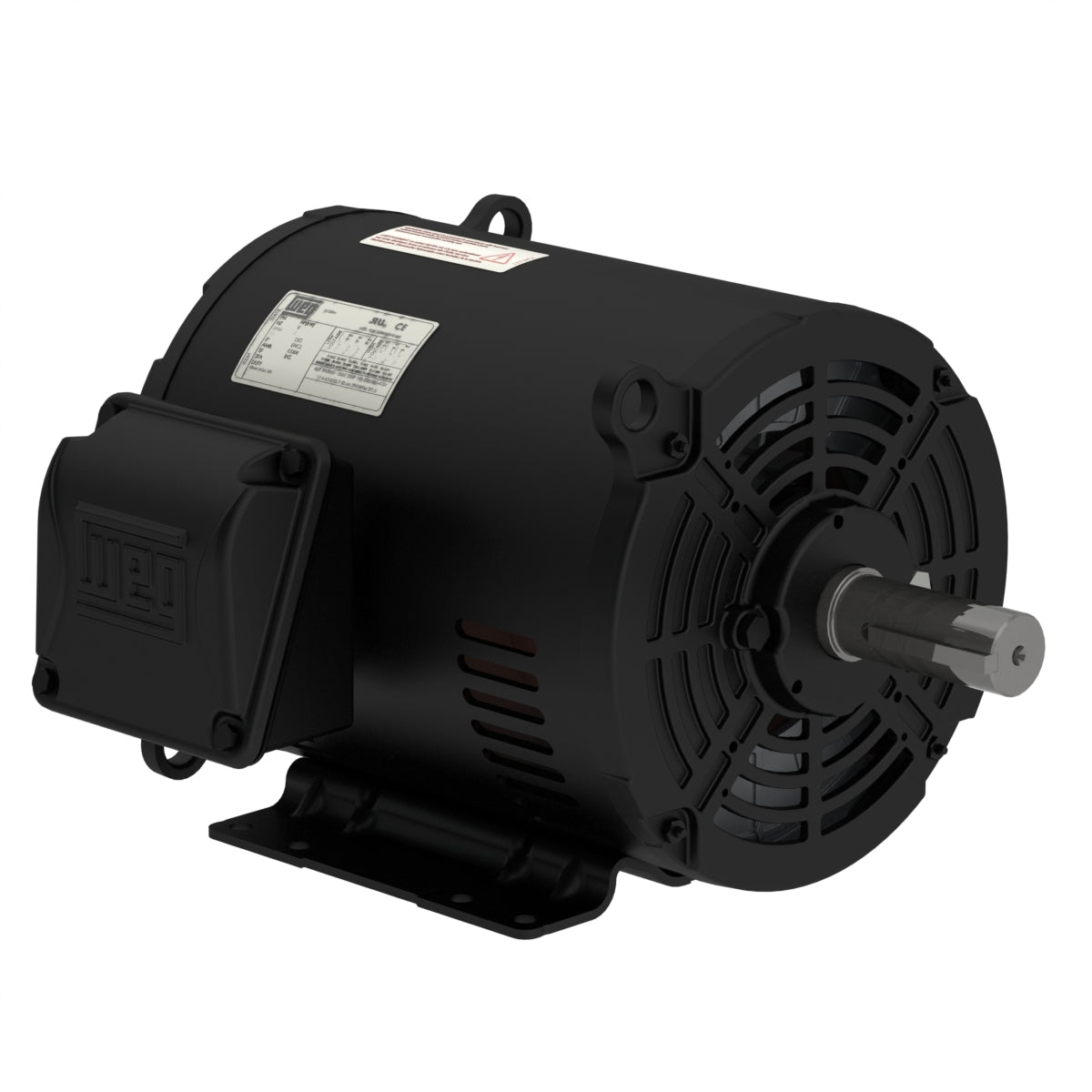

WEG Weg Electric 02018OT3H256T-SG, 20 Hp, 1800 Rpm, 254/6T Frame,…
