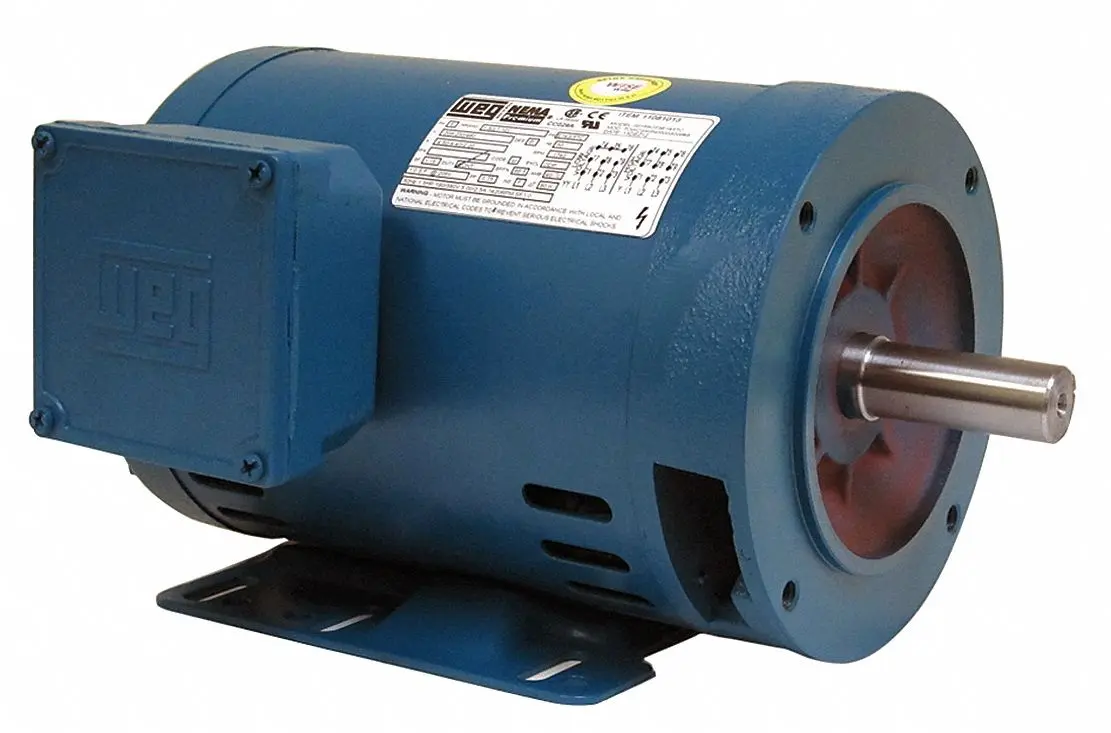

WEG 02018OT3H256TC — General Purpose Motor C1487789

02018OT3H256TC WEG 20 HP, General Purpose Motor, 3-Phase, 1770 Nameplate RPM, 575 Voltage, 256TC

Brand: WEG SKU: 02018OT3H256TC Mfr Part #: 02018OT3H256TC
Ships Same Day* Worldwide Shipping

WEG 20 HP, General Purpose Motor, 3-Phase, 1770 Nameplate RPM, 575 Voltage, 256TC Frame - 02018OT3H256TC

Sourced to exact specCross-checked against manufacturer part data
Fast quote turnaroundOur order desk replies within 1 business day
Worldwide shippingWe ship to your site, warehouse, or freight forwarder

Overview

General Purpose Motor; Motor Application: General Application; Motor Design: 3-Phase; Motor Enclosure Design: Open Dripproof; HP: 20; Nameplate RPM: 1770; Frame: 256TC; Voltage: 575; Hz: 60/50; Phase: 3; Full Load Amps: 20; No. of Speeds: 1; Motor Mounting Type: Rigid Base; Motor Thermal Protection: None; Ins. Class: F; Motor Service Factor: 1.15; Motor Bearings: Ball; Motor Frame Material: Cast Iron; Max. Ambient Temp.: 40 Degrees C; Motor Shaft Rotation: CW/CCW; Shaft Dia.: 1 5/8 in; Shaft Length: 4 in; Length Less Shaft: 18 3/8 in; Overall Length: 22 3/8 in; Motor Shaft Design: Keyed; Standards: CE, CSA, UL; Duty: Continuous; Motor Efficiency Group: NEMA Premium Efficient; Nominal Efficiency: 93 %; CC Number: CC029A; Manufacturers Warranty Length: 3 yr

Specifications

Weight 289.9998 lb

Product details

Manufacturer WEG
Manufacturer part number 02018OT3H256TC
KKM catalog reference WEG-02018OT3H256TC
Product category General Purpose Motor
Published specifications 1 attribute listed
Related part numbers 11 other part numbers in this family

Request a quote for this part

Email [email protected] or call (825) 454-5367 for pricing and availability.

Quotes back within 1 business day — usually the same day. Need it faster? Call (825) 454-5367, answered 24/7.

Frequently Asked Questions

How much does 02018OT3H256TC cost?

02018OT3H256TC is listed at CA$3,133.46 (CAD) and can be ordered directly from this page with Add to Cart. That figure is a reference price and can change: your card is authorized at checkout and charged only once our order desk confirms the part, stock, and final price, and we email you first if anything has moved. Larger quantities or custom terms — email [email protected] for a volume quote.

Who manufactures the 02018OT3H256TC?

02018OT3H256TC is a WEG part. KKM Solutions sources WEG components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.

What is the lifecycle status of 02018OT3H256TC?

We do not hold a published lifecycle status for 02018OT3H256TC. WEG's publishes whether a catalog number is current, superseded or end-of-life on its own product page, and our order desk confirms the current status with the manufacturer at quote time — you are told if the part is superseded or discontinued before you commit. Either way we source current-production, superseded and long-obsolete parts the same way; where a part is genuinely unavailable we identify a form-fit-function equivalent. Send the part number through the quote form on this page, or use our obsolete part lookup at https://kkmsolutions.com/tools/obsolete-part-lookup/.

How quickly can 02018OT3H256TC ship?

In-stock items are dispatched the same business day for orders placed by 11 AM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
