WEG 02018ET3H256JP-S — Motor
Weg Electric 02018ET3H256JP-S, 20 Hp, 1800 Rpm, 254/6JP Frame, 575 Vac, TEFC, 3 PH, Foot-mounted, Rolled Steel JP Pump NEMA Premium Efficiency.
Overview
02018ET3H256JP-S, 20 Hp, 1800 Rpm, 254/6JP Frame, 575 Vac, TEFC, 3 PH, Foot-mounted, Rolled Steel JP Pump NEMA Premium Efficiency. Engineering Data The W01 “JP” (gasket) motors were especially developed for application on pumps with direct coupling. Ensure maximum performance and robustness in a variety of applications. Product features Standard NEMA MG-1 Frequency 60 Hz Voltage 575 V Number of poles 4 Degree of Protection IP55 Synchronous speed 1800 rpm Output rating 20 HP Mounting Foot-mounted Flange C Mounting F-1 Terminal box¹ Left position Enclosure IC411 - TEFC Frame 254/6JP Output 20 HP (15 kW) Number of Poles 4 Frequency 60 Hz Rated speed 1765 rpm Slip 1.94 % Rated voltage 575 V Rated current 19.8 A L. R. Amperes 132 A LRC 6.7x(Code H) No load current 8.89 A Rated torque 59.5 ft.lb Locked rotor torque 270 % Breakdown torque 300 % Locked rotor time 28s (cold) 16s (hot) Moment of inertia (J) 2.64 sq.ft.lb Design B Insulation Class F Service factor 1.15 Temperature rise 80 K Duty Cycle Cont.(S1) Starting Method Direct On Line Ambient temperature -20°C to +40°C Altitude 1000 m.a.s.l. Degree of Protection IP55 Enclosure IC411 - TEFC Mounting F-1 Rotation¹ Both (CW and CCW) Noise level² 68.0 dB(A)
Specifications
| Tag | WEG Electric |
|---|---|
| Weight | 258.0 lb |
Product details
| Manufacturer | WEG |
|---|---|
| Manufacturer part number | 02018ET3H256JP-S |
| KKM catalog reference | WEG-02018ET3H256JP-S |
| Product category | Motor |
| Published specifications | 2 attributes listed |
| Related part numbers | 10 other part numbers in this family |
Request a quote for this part
Email [email protected] or call (825) 454-5367 for pricing and availability.
Frequently Asked Questions
How much does 02018ET3H256JP-S cost?
02018ET3H256JP-S is listed at CA$3,810.29 (CAD) and can be ordered directly from this page with Add to Cart. That figure is a reference price and can change: your card is authorized at checkout and charged only once our order desk confirms the part, stock, and final price, and we email you first if anything has moved. Larger quantities or custom terms — email [email protected] for a volume quote.
Who manufactures the 02018ET3H256JP-S?
02018ET3H256JP-S is a WEG part. KKM Solutions sources WEG components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
Is 02018ET3H256JP-S discontinued, and can I still get one?
KKM Solutions does not publish a manufacturer lifecycle status for 02018ET3H256JP-S — check WEG's own product page for whether it is current, superseded, or end-of-life. It does not change what we can do: we source current-production, superseded and long-obsolete parts the same way, and where a part is genuinely unavailable we identify a form-fit-function equivalent. Send the part number through the quote form on this page, or use our obsolete part lookup at https://kkmsolutions.com/tools/obsolete-part-lookup/.
What are the key specifications of 02018ET3H256JP-S?
Key specifications include Tag: WEG Electric; Weight: 258.0 lb. The full specification table on this page lists every published attribute for this part.
How quickly can 02018ET3H256JP-S ship?
In-stock items are dispatched the same business day for orders placed by 11 AM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Variants & Related Part Numbers
Other WEG part numbers in this family:
- 02018ET3H256JM-S — WEG 02018ET3H256JM-S WEG Close Coupled Pump Motor (20 HP, 3 Phase, 575…
- 02018ET3H256JM-SG — Weg Electric 02018ET3H256JM-SG, 20 Hp, 1800 Rpm, 254/6JM Frame, 575 Vac, TEFC,…
- 02018ET3H256JM-W22 — WEG 02018ET3H256JM-W22 WEG Motor, Close Coupled Pump Motor (20 HP, 256JM FRAME,…
- 02018ET3H256JP-W22 — Weg 02018ET3H256JP-W22 20HP 1800RPM NEMA Premium TEFC three-phase motor with 256JP close-coupled…
- 02018ET3H256T-S — Weg 02018ET3H256T-S 20HP 1800 RPM NEMA Premium TEFC three-phase motor, 575V, 60Hz,…
- 02018ET3H256T-SG — Weg Electric 02018ET3H256T-SG, 20 Hp, 1800 Rpm, 254/6T Frame, 575 Vac, TEFC,…
- 02018ET3H256T-W22 — Weg 02018ET3H256T-W22 20HP 1800RPM three-phase NEMA Premium efficiency motor with 254/6T frame…
- 02018ET3H256T-W22G — Weg Electric 02018ET3H256T-W22G, 20 Hp, 1800 Rpm, 254/6T Frame, 575 Vac, TEFC,…
- 02018ET3H256TC-S — WEG 02018ET3H256TC-S WEG Motor (20 HP, 3 RPM, 3 Phase, 60 Hz,…
- 02018ET3H256TC-W22 — Weg 02018ET3H256TC-W22 20HP 1800RPM NEMA Premium efficiency three-phase motor with 256TC frame…
Related Products

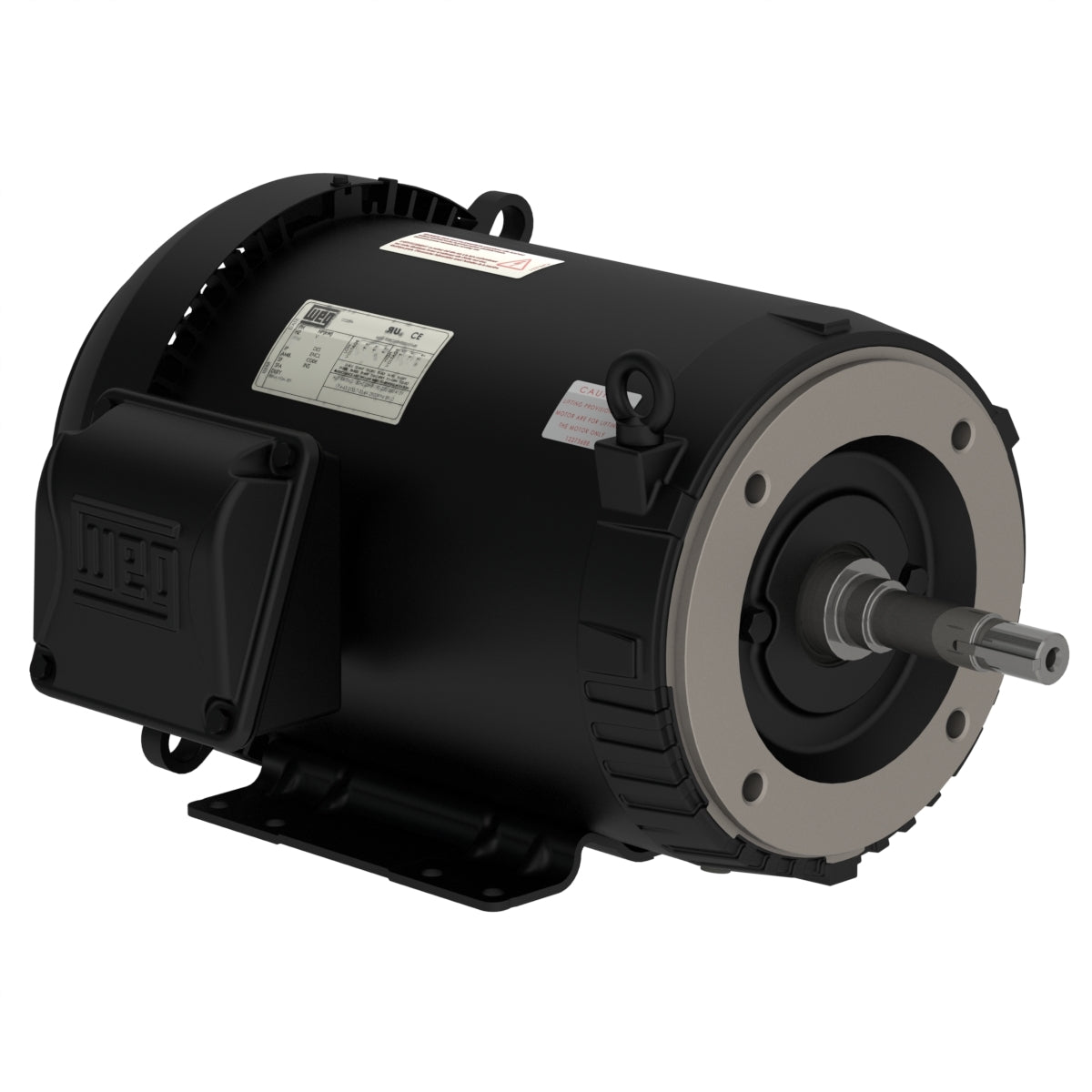

WEG Weg Electric 02018ET3H256JM-SG, 20 Hp, 1800 Rpm, 254/6JM Frame,…

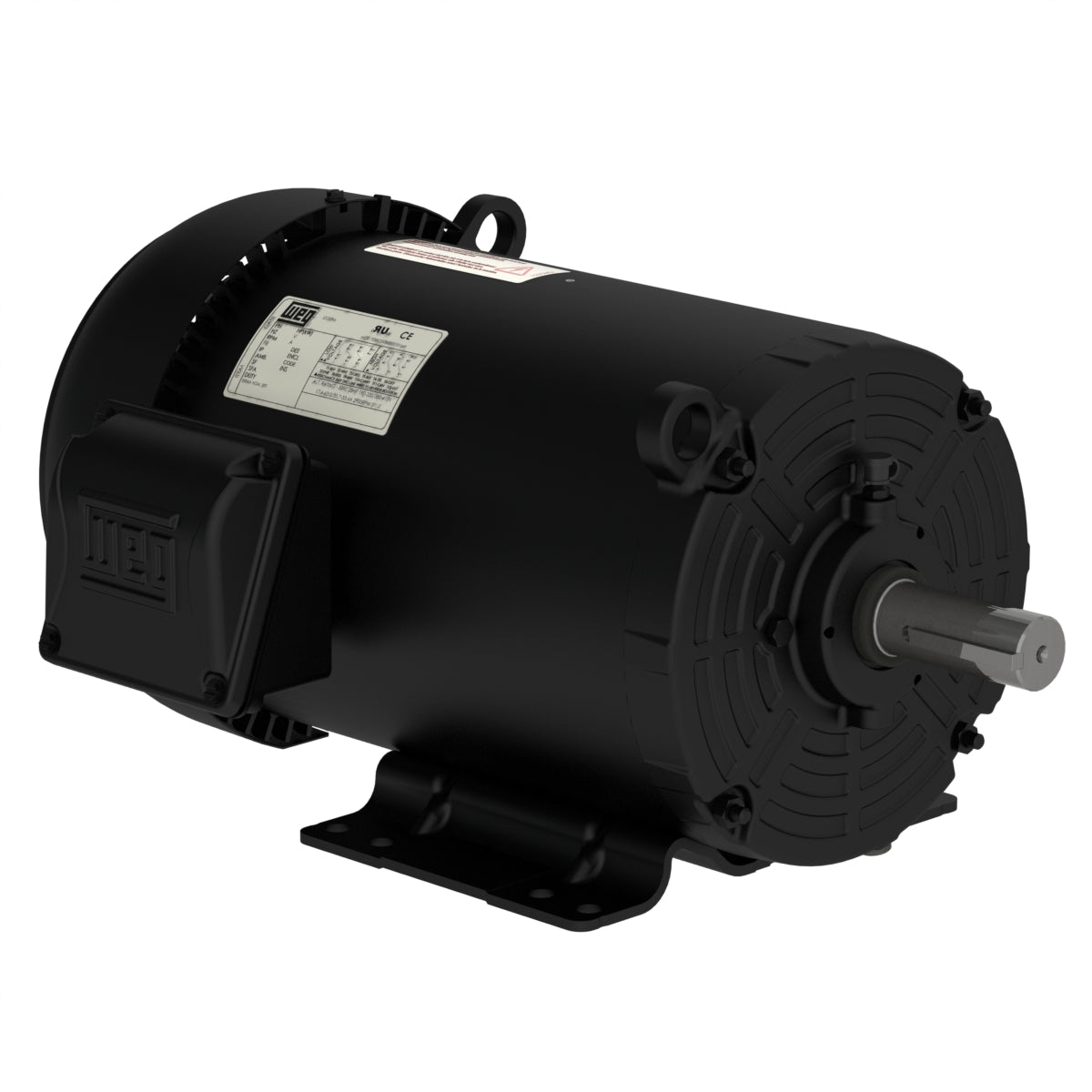

WEG Weg Electric 02018ET3H256T-SG, 20 Hp, 1800 Rpm, 254/6T Frame,…
