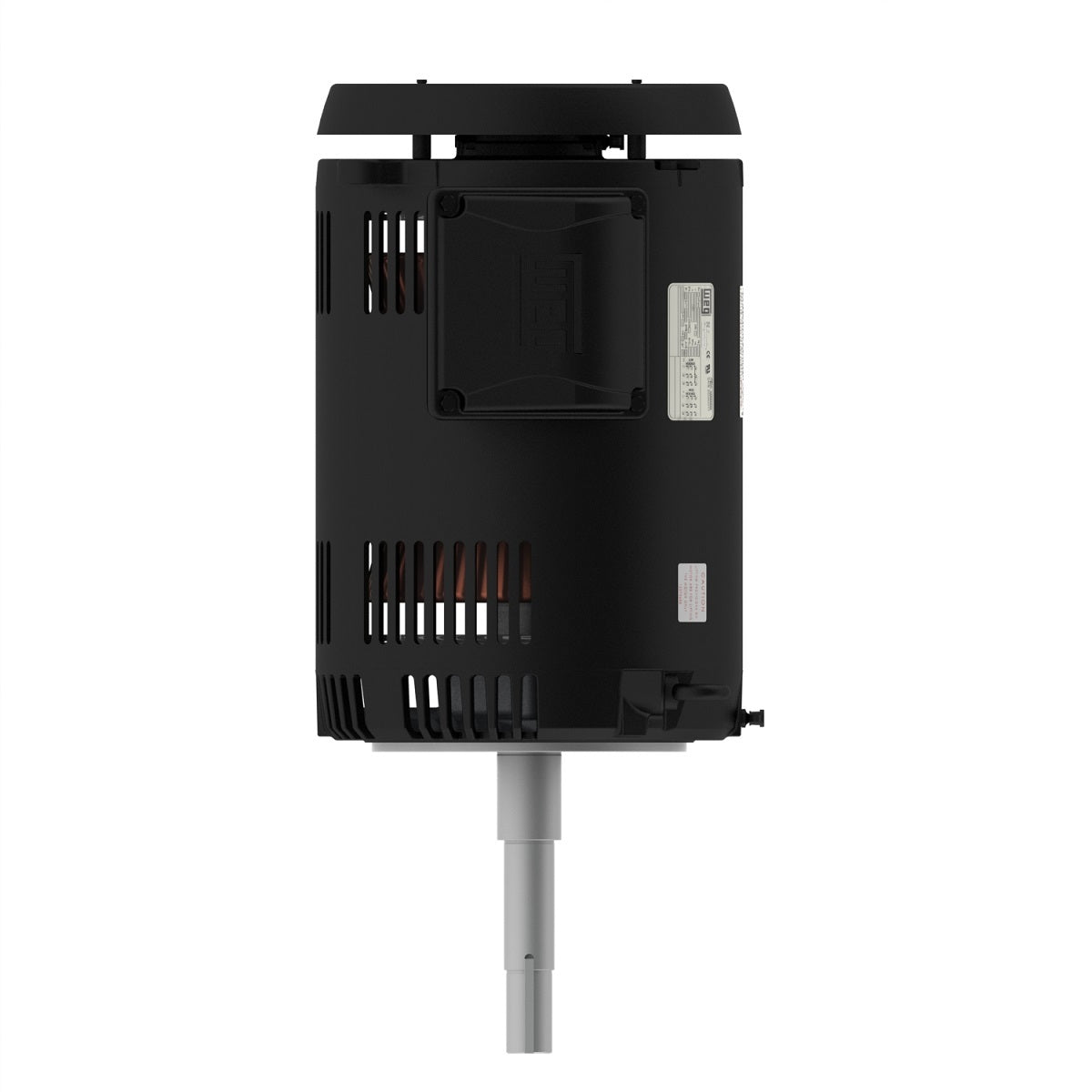

WEG 01536OT3H215JPV-S — Motor
Weg Electric 01536OT3H215JPV-S, 15 Hp, 3600 Rpm, 213/5JP Frame, 575 Vac, ODP, 3 PH, Footless, Rolled Steel JP Pump NEMA Efficiency.
Overview
01536OT3H215JPV-S, 15 Hp, 3600 Rpm, 213/5JP Frame, 575 Vac, ODP, 3 PH, Footless, Rolled Steel JP Pump NEMA Efficiency. Engineering Data Standard NEMA MG-1 Frequency 60 Hz Voltage 575 V Number of poles 2 Synchronous speed 3600 rpm Output rating 15 HP Mounting Footless Flange C Mounting W-6 Terminal box¹ Left position Enclosure IC01 - ODP Frame 213/5JP Output 15 HP (11 kW) Number of Poles 2 Frequency 60 Hz Rated speed 3535 rpm Slip 1.81 % Rated voltage 575 V Rated current 13.8 A L. R. Amperes 93.6 A LRC 6.8x(Code G) No load current 4.93 A Rated torque 22.3 ft.lb Locked rotor torque 210 % Breakdown torque 280 % Locked rotor time 14s (cold) 8s (hot) Moment of inertia (J) 0.5512 sq.ft.lb Design B Insulation Class F Service factor 1.15 Temperature rise 80 K Duty Cycle Cont.(S1) Starting Method Direct On Line Ambient temperature -20°C to +40°C Altitude 1000 m.a.s.l. Enclosure IC01 - ODP Mounting W-6 Rotation¹ Both (CW and CCW) Noise level² 66.0 dB(A)
Specifications
| Tag | WEG Electric |
|---|---|
| Weight | 140.0 lb |
Product details
| Manufacturer | WEG |
|---|---|
| Manufacturer part number | 01536OT3H215JPV-S |
| KKM catalog reference | WEG-01536OT3H215JPV-S |
| Product category | Motor |
| Published specifications | 2 attributes listed |
| Related part numbers | 7 other part numbers in this family |
Request a quote for this part
Email [email protected] or call (825) 454-5367 for pricing and availability.
Frequently Asked Questions
How much does 01536OT3H215JPV-S cost?
01536OT3H215JPV-S is listed at CA$2,344.09 (CAD) and can be ordered directly from this page with Add to Cart. That figure is a reference price and can change: your card is authorized at checkout and charged only once our order desk confirms the part, stock, and final price, and we email you first if anything has moved. Larger quantities or custom terms — email [email protected] for a volume quote.
Who manufactures the 01536OT3H215JPV-S?
01536OT3H215JPV-S is a WEG part. KKM Solutions sources WEG components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
Is 01536OT3H215JPV-S discontinued, and can I still get one?
KKM Solutions does not publish a manufacturer lifecycle status for 01536OT3H215JPV-S — check WEG's own product page for whether it is current, superseded, or end-of-life. It does not change what we can do: we source current-production, superseded and long-obsolete parts the same way, and where a part is genuinely unavailable we identify a form-fit-function equivalent. Send the part number through the quote form on this page, or use our obsolete part lookup at https://kkmsolutions.com/tools/obsolete-part-lookup/.
What are the key specifications of 01536OT3H215JPV-S?
Key specifications include Tag: WEG Electric; Weight: 140.0 lb. The full specification table on this page lists every published attribute for this part.
How quickly can 01536OT3H215JPV-S ship?
In-stock items are dispatched the same business day for orders placed by 11 AM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Variants & Related Part Numbers
Other WEG part numbers in this family:
- 01536OT3H215JM-S — Weg Electric 01536OT3H215JM-S, 15 Hp, 3600 Rpm, 213/5JM FR, 575 Vac, ODP,…
- 01536OT3H215JM-SG — Weg Electric 01536OT3H215JM-SG, 15 Hp, 3600 Rpm, 213/5JM Frame, 575 Vac, ODP,…
- 01536OT3H215JMV-S — Weg Electric 01536OT3H215JMV-S, 15 Hp, 3600 Rpm, 213/5JM Frame, 575 Vac, ODP,…

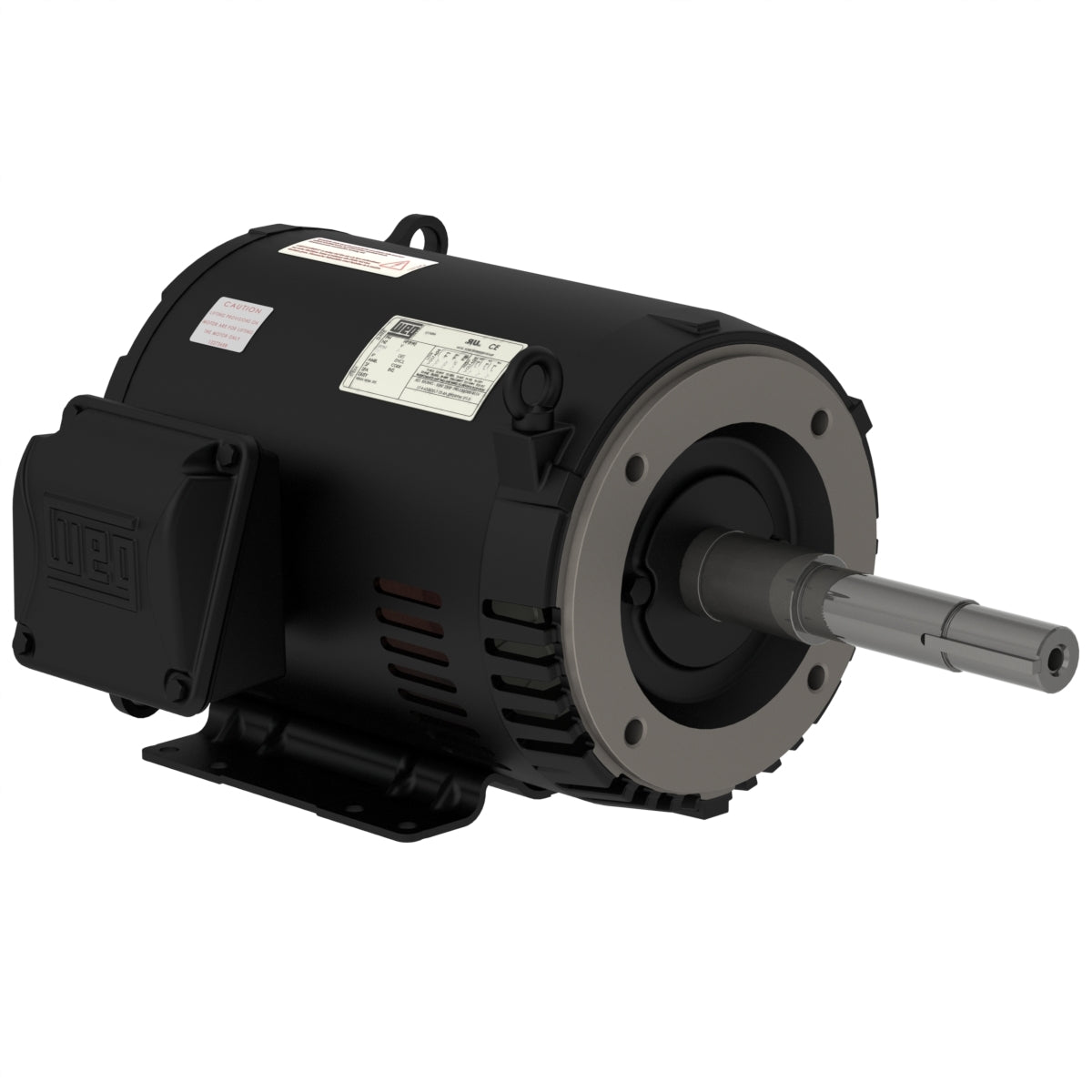

- 01536OT3H215JP-S — Weg Electric 01536OT3H215JP-S, 15 Hp, 3600 Rpm, 213/5JP Frame, 575 Vac, ODP,…
- 01536OT3H215JP-SG — Weg Electric 01536OT3H215JP-SG, 15 Hp, 3600 Rpm, 213/5JP Frame, 575 Vac, ODP,…
- 01536OT3H215T-S — Weg 01536OT3H215T-S NEMA Premium ODP three-phase motor, 15HP, 3600RPM, 215T frame, 575V,…
- 01536OT3H215TC-S — WEG 01536OT3H215TC-S WEG Motor (15 HP, 3600 RPM, 3 Phase, 213/5TC, ODP,…
Related Products
WEG Weg Electric 01536OT3H215JP-SG, 15 Hp, 3600 Rpm, 213/5JP Frame,…

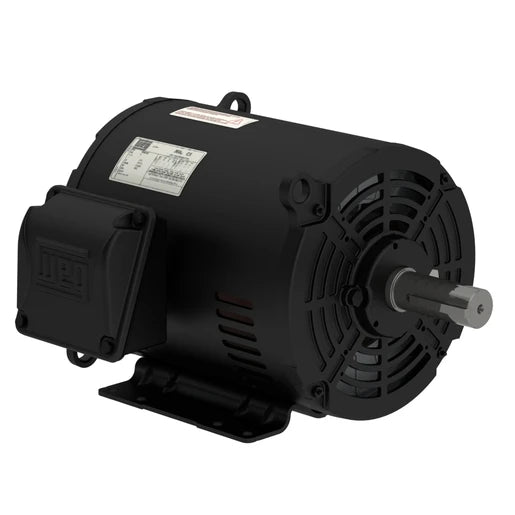

WEG Weg Electric 01536OT3V213T-S, 15 Hp, 3600 Rpm, 213/5T Frame,…
WEG Weg Electric 01536OT3H215JP-S, 15 Hp, 3600 Rpm, 213/5JP Frame,…

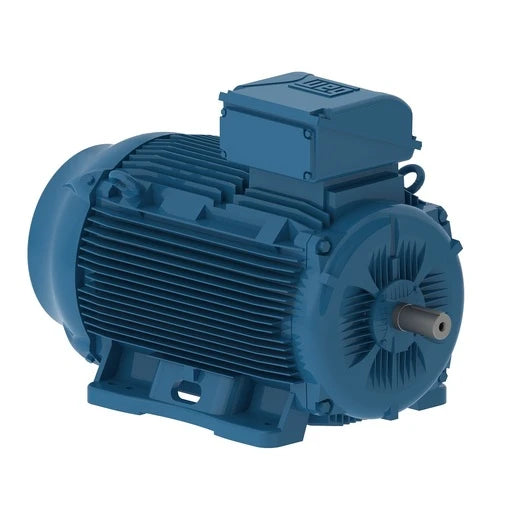

WEG Weg Electric, 01812ET3E200LF3-W22, 25 HP, 200L FR, 3Ph, 208-230/460//380-415…
