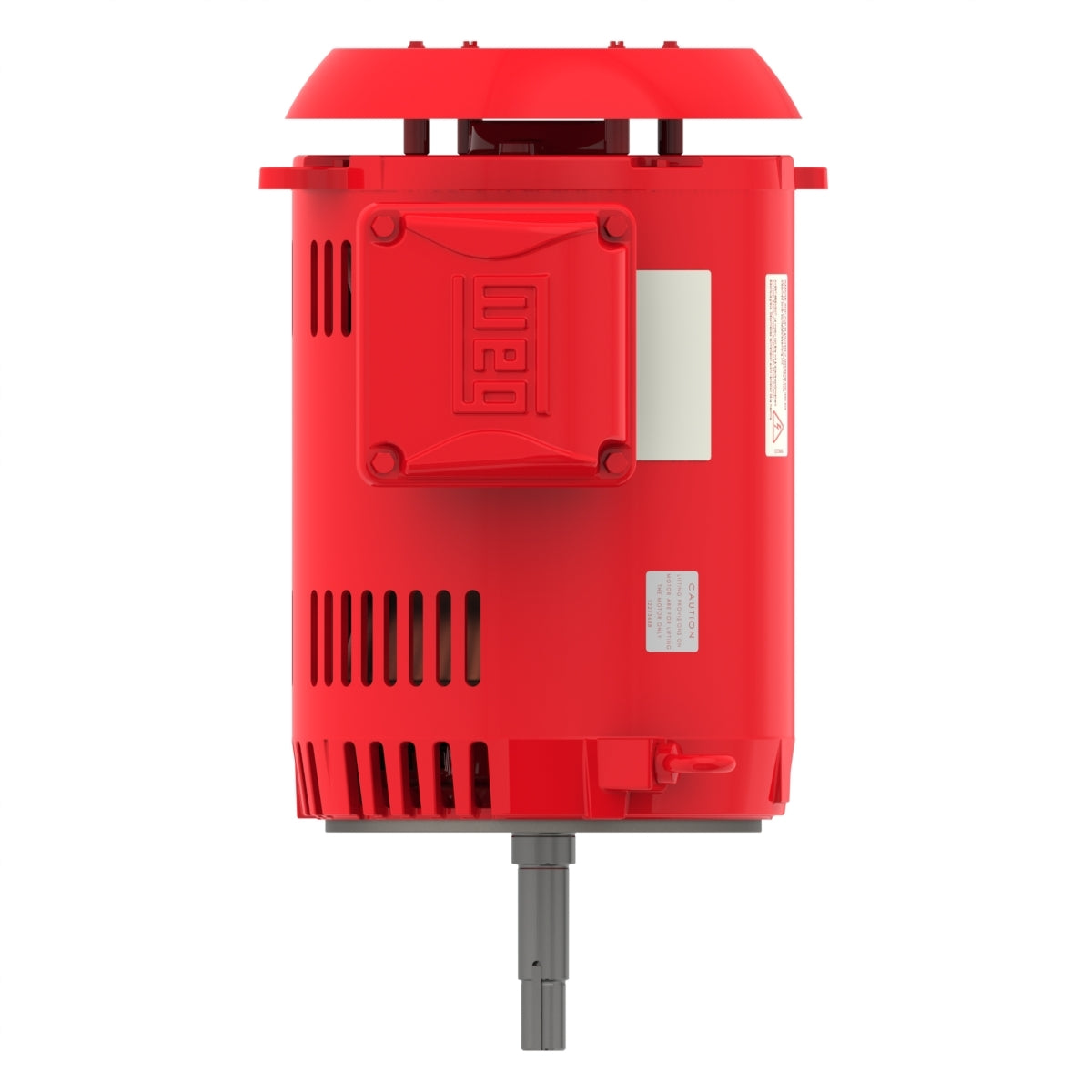

WEG 01536OP3HFP215JPV-S — Motor
Weg Electric 01536OP3HFP215JPV-S, 15 Hp, 3600 Rpm, 213/5JP Frame, 575 Vac, ODP, 3 PH, Footless, Rolled Steel JP Pump High Efficiency.
Overview
01536OP3HFP215JPV-S, 15 Hp, 3600 Rpm, 213/5JP Frame, 575 Vac, ODP, 3 PH, Footless, Rolled Steel JP Pump High Efficiency. Engineering Data The W01 “JP” (gasket) motors were especially developed for fire pump application. They ensure maximum performance and robustness in environments where dirt and humidity are minimal. Product features Standard NEMA MG-1 Frequency 60 Hz Voltage 575 V Number of poles 2 Synchronous speed 3600 rpm Output rating 15 HP Mounting Footless Flange C Mounting W-6 Terminal box¹ Left position Enclosure IC01 - ODP Frame 213/5JP Output 15 HP (11 kW) Number of Poles 2 Frequency 60 Hz Rated speed 3525 rpm Slip 2.08 % Rated voltage 575 V Rated current 14.0 A L. R. Amperes 91.0 A LRC 6.5x(Code G) No load current 5.89 A Rated torque 22.3 ft.lb Locked rotor torque 190 % Breakdown torque 260 % Locked rotor time 10s (cold) 6s (hot) Moment of inertia (J) 0.4651 sq.ft.lb Design B Insulation Class F Service factor 1.15 Temperature rise 80 K Duty Cycle Cont.(S1) Starting Method Direct On Line Ambient temperature -20°C to +40°C Altitude 1000 m.a.s.l. Enclosure IC01 - ODP Mounting W-6 Rotation¹ Both (CW and CCW) Noise level² 66.0 dB(A)
Specifications
| Tag | WEG Electric |
|---|---|
| Weight | 126.0 lb |
Product details
| Manufacturer | WEG |
|---|---|
| Manufacturer part number | 01536OP3HFP215JPV-S |
| KKM catalog reference | WEG-01536OP3HFP215JPV-S |
| Product category | Motor |
| Published specifications | 2 attributes listed |
| Related part numbers | 3 other part numbers in this family |
Request a quote for this part
Email [email protected] or call (825) 454-5367 for pricing and availability.
Frequently Asked Questions
How much does 01536OP3HFP215JPV-S cost?
01536OP3HFP215JPV-S is listed at CA$2,118.72 (CAD) and can be ordered directly from this page with Add to Cart. That figure is a reference price and can change: your card is authorized at checkout and charged only once our order desk confirms the part, stock, and final price, and we email you first if anything has moved. Larger quantities or custom terms — email [email protected] for a volume quote.
Who manufactures the 01536OP3HFP215JPV-S?
01536OP3HFP215JPV-S is a WEG part. KKM Solutions sources WEG components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
Is 01536OP3HFP215JPV-S discontinued, and can I still get one?
KKM Solutions does not publish a manufacturer lifecycle status for 01536OP3HFP215JPV-S — check WEG's own product page for whether it is current, superseded, or end-of-life. It does not change what we can do: we source current-production, superseded and long-obsolete parts the same way, and where a part is genuinely unavailable we identify a form-fit-function equivalent. Send the part number through the quote form on this page, or use our obsolete part lookup at https://kkmsolutions.com/tools/obsolete-part-lookup/.
What are the key specifications of 01536OP3HFP215JPV-S?
Key specifications include Tag: WEG Electric; Weight: 126.0 lb. The full specification table on this page lists every published attribute for this part.
How quickly can 01536OP3HFP215JPV-S ship?
In-stock items are dispatched the same business day for orders placed by 11 AM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Variants & Related Part Numbers
Other WEG part numbers in this family:
- 01536OP3HFP215JMV-S — Weg Electric 01536OP3HFP215JMV-S, 15 Hp, 3600 Rpm, 213/5JM Frame, 575 Vac, ODP,…
- 01536OP3HFP215T — Weg 01536OP3HFP215T 15HP 3600RPM three-phase open drip proof fire pump motor, 575V,…
- 01536OP3HFP215T-S — Weg 01536OP3HFP215T-S 15HP 3600RPM three-phase open drip proof fire pump motor, 575V,…
Related Products
WEG Weg Electric 01536OP3HFP215JMV-S, 15 Hp, 3600 Rpm, 213/5JM Frame,…
WEG Weg Electric 01536OP3VFP215JMV-S, 15 Hp, 3600 Rpm, 213/5JM Frame,…

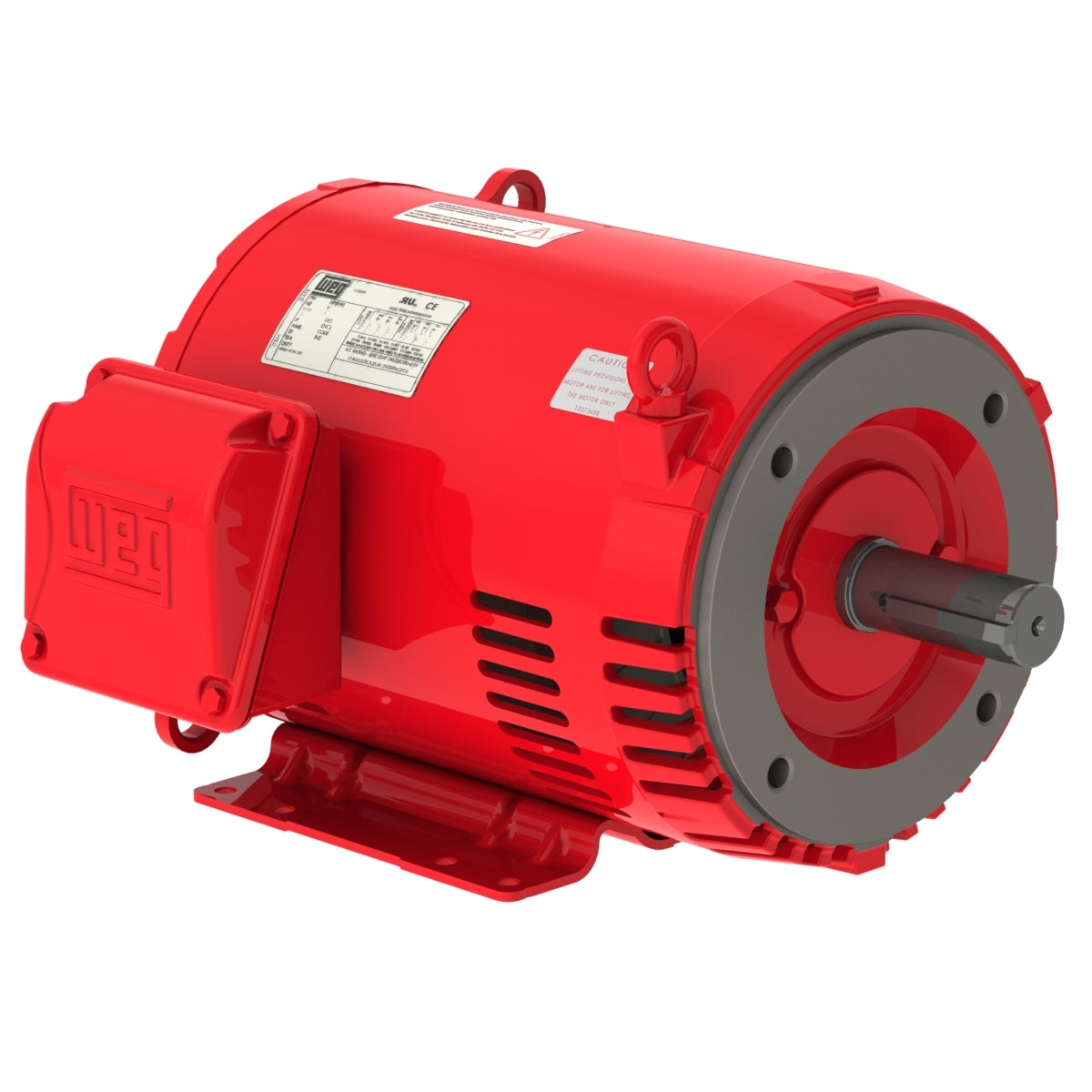

WEG Weg Electric 01536OP3EFP215TC-S, 15 Hp, 3600 Rpm, 213/5TC Frame,…

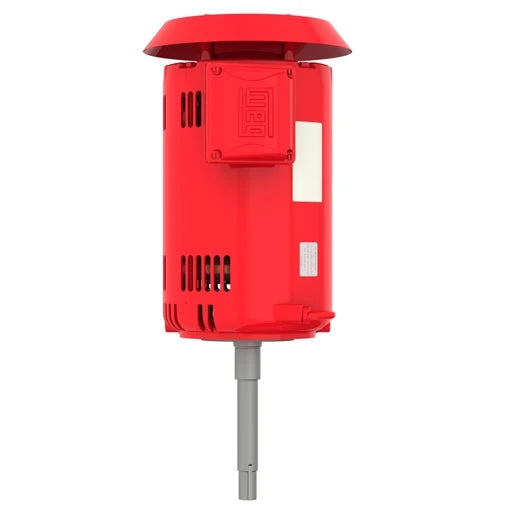

WEG Weg Electric 01536OP3VFP215JPV-S, 15 Hp, 3600 Rpm, 213/5JP FR,…
