WEG 01518OT3H254T-SG — Motor
Weg Electric 01518OT3H254T-SG, 15 Hp, 1800 Rpm, 254/6T Frame, 575 Vac, ODP, 3 PH, Foot-mounted, Rolled Steel NEMA Premium Efficiency.
Overview
01518OT3H254T-SG, 15 Hp, 1800 Rpm, 254/6T Frame, 575 Vac, ODP, 3 PH, Foot-mounted, Rolled Steel NEMA Premium Efficiency. Engineering Data Standard NEMA MG-1 Frequency 60 Hz Voltage 575 V Number of poles 4 Synchronous speed 1800 rpm Output rating 15 HP Mounting Foot-mounted Flange Without Mounting F-1 Terminal box¹ Left position Enclosure IC01 - ODP Frame 254/6T Output 15 HP (11 kW) Number of Poles 4 Frequency 60 Hz Rated speed 1775 rpm Slip 1.39 % Rated voltage 575 V Rated current 14.9 A L. R. Amperes 100 A LRC 6.7x(Code H) No load current 7.60 A Rated torque 44.4 ft.lb Locked rotor torque 240 % Breakdown torque 300 % Locked rotor time 30s (cold) 17s (hot) Moment of inertia (J) 1.82 sq.ft.lb Design B Insulation Class F Service factor 1.15 Temperature rise 80 K Duty Cycle Cont.(S1) Starting Method Direct On Line Ambient temperature -20°C to +40°C Altitude 1000 m.a.s.l. Enclosure IC01 - ODP Mounting F-1 Rotation¹ Both (CW and CCW) Noise level² 64.0 dB(A)
Specifications
| Tag | WEG Electric |
|---|---|
| Weight | 190.0 lb |
Product details
| Manufacturer | WEG |
|---|---|
| Manufacturer part number | 01518OT3H254T-SG |
| KKM catalog reference | WEG-01518OT3H254T-SG |
| Product category | Motor |
| Published specifications | 2 attributes listed |
| Related part numbers | 11 other part numbers in this family |
Request a quote for this part
Email [email protected] or call (825) 454-5367 for pricing and availability.
Frequently Asked Questions
How much does 01518OT3H254T-SG cost?
01518OT3H254T-SG is listed at CA$2,302.16 (CAD) and can be ordered directly from this page with Add to Cart. That figure is a reference price and can change: your card is authorized at checkout and charged only once our order desk confirms the part, stock, and final price, and we email you first if anything has moved. Larger quantities or custom terms — email [email protected] for a volume quote.
Who manufactures the 01518OT3H254T-SG?
01518OT3H254T-SG is a WEG part. KKM Solutions sources WEG components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
Is 01518OT3H254T-SG discontinued, and can I still get one?
KKM Solutions does not publish a manufacturer lifecycle status for 01518OT3H254T-SG — check WEG's own product page for whether it is current, superseded, or end-of-life. It does not change what we can do: we source current-production, superseded and long-obsolete parts the same way, and where a part is genuinely unavailable we identify a form-fit-function equivalent. Send the part number through the quote form on this page, or use our obsolete part lookup at https://kkmsolutions.com/tools/obsolete-part-lookup/.
What are the key specifications of 01518OT3H254T-SG?
Key specifications include Tag: WEG Electric; Weight: 190.0 lb. The full specification table on this page lists every published attribute for this part.
How quickly can 01518OT3H254T-SG ship?
In-stock items are dispatched the same business day for orders placed by 11 AM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Variants & Related Part Numbers
Other WEG part numbers in this family:

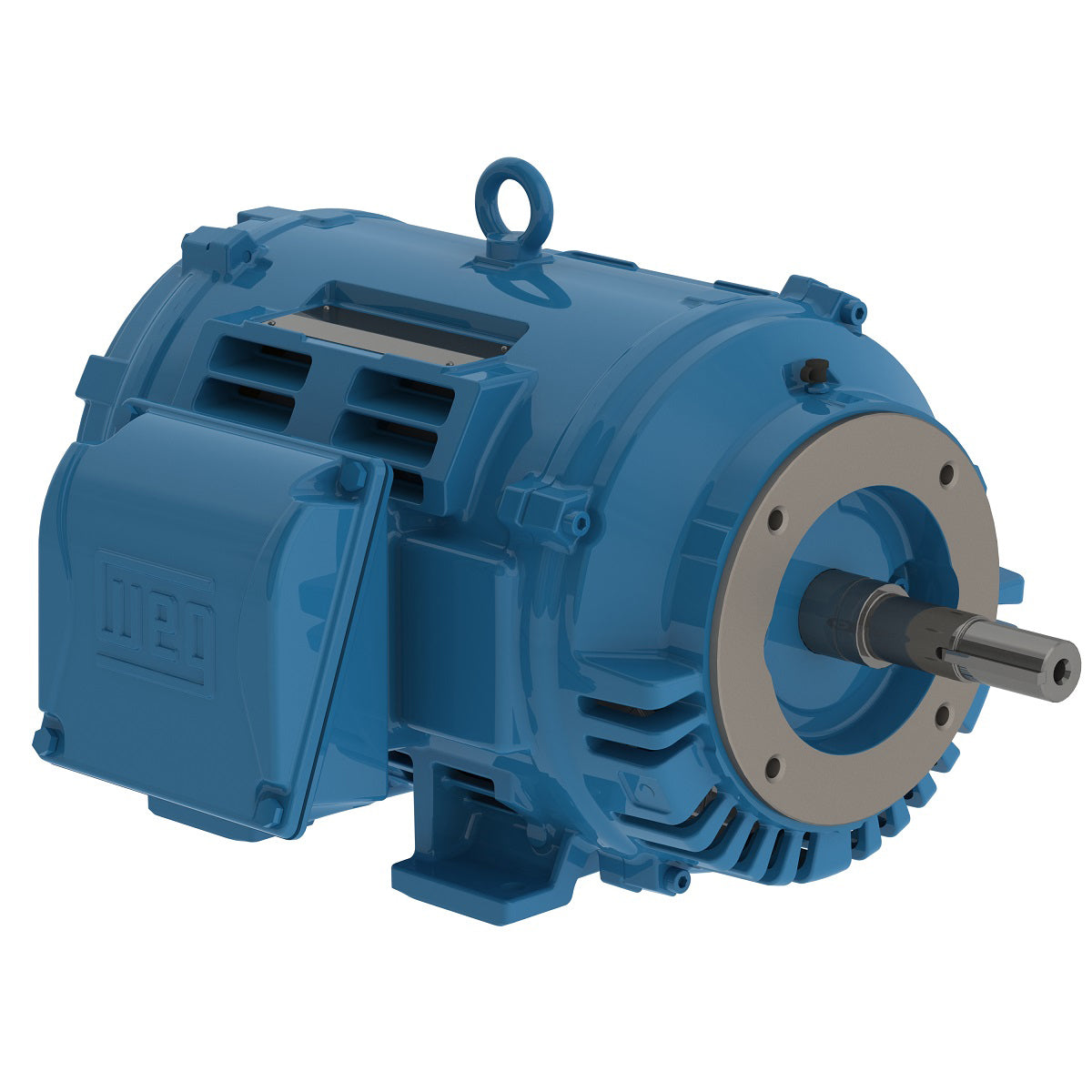

- 01518OT3H254JM — Weg Electric 01518OT3H254JM, 15 Hp, 1800 Rpm, 254JM Frame, 575 Vac, ODP,…
- 01518OT3H254JM-S — Weg Electric 01518OT3H254JM-S, 15 Hp, 1800 Rpm, 254/6JM Frame, 575 Vac, ODP,…

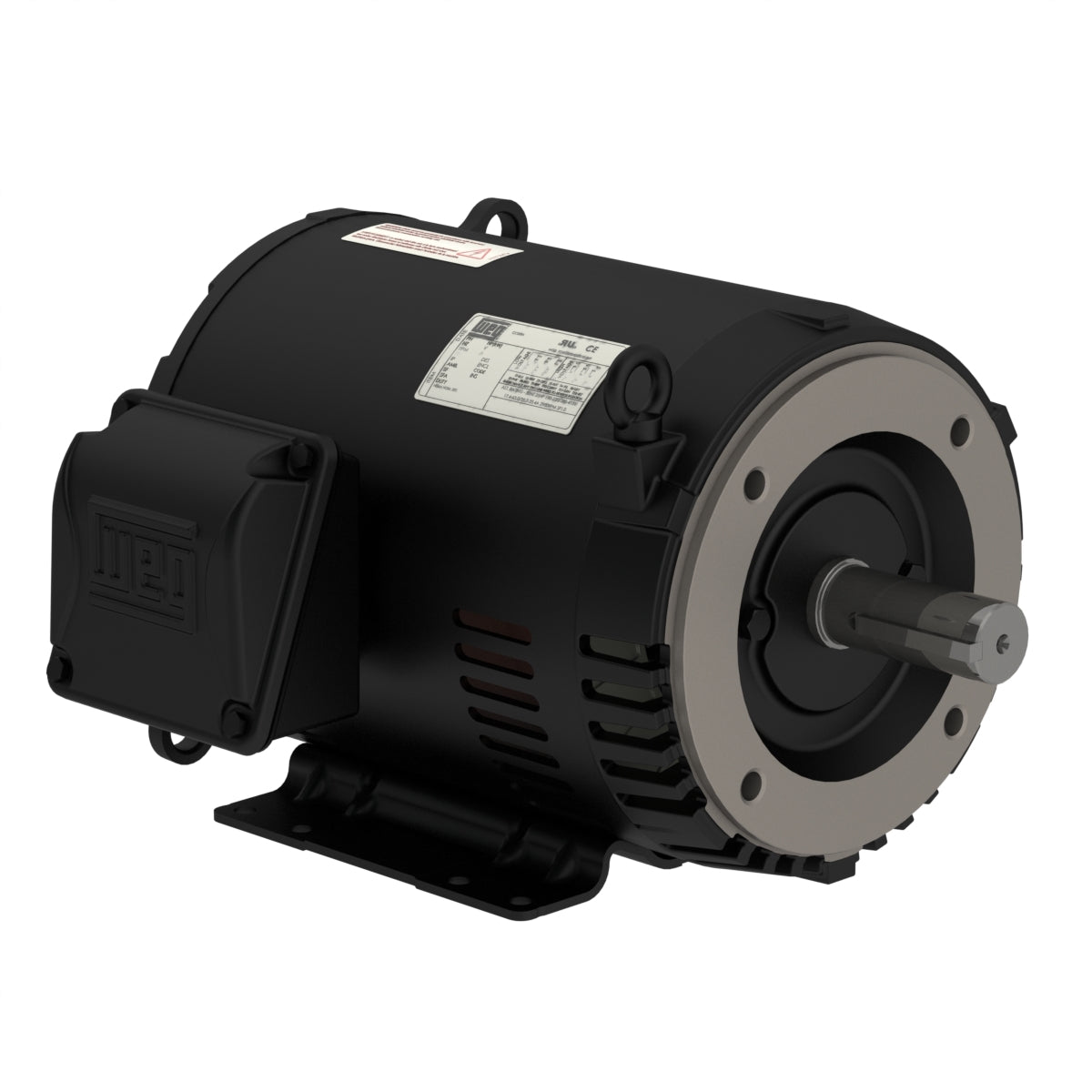

- 01518OT3H254JM-SG — Weg Electric 01518OT3H254JM-SG, 15 Hp, 1800 Rpm, 254/6JM Frame, 575 Vac, ODP,…
