WEG 01518ET3EPM254/6Y-W2 — Motor
Weg Electric 01518ET3EPM254/6Y-W2, 15 Hp, 256TZ Frame, 1800 RPM, 208-230/460//380 Vac, TEAO, 3 PH, Pad mounted, W22 NEMA Premium Efficiency.
Overview
01518ET3EPM254/6Y-W2, 15 Hp, 256TZ Frame, 1800 RPM, 208-230/460//380 Vac, TEAO, 3 PH, Pad mounted, W22 NEMA Premium Efficiency. Engineering Data With cast iron frame, flexible mounting, solid and whole feet, and lower noise levels and operating temperatures, the W22 motors are perfectly suitable for a great variety of industrial applications. Product features Standard NEMA MG-1 Frequency 60//50 Hz Voltage 208-230/460//380 V Number of poles 4 Degree of Protection IP55 Synchronous speed 1800 rpm Output rating 15 HP Mounting Pad mounted Flange Without Mounting F-1 Terminal box¹ Left position Enclosure IC410 - TEAO Frame 256TZ Output 15 HP (11 kW) Number of Poles 4 Frequency 60 Hz Rated speed 1770 rpm Slip 1.67 % Rated voltage 208-230/460 V Rated current 39.8-36.0/18.0 A L. R. Amperes 255-230/115 A LRC 6.4x(Code G) No load current 11.7-14.4/7.20 A Rated torque 6.15 kgfm Locked rotor torque 220 % Breakdown torque 260 % Locked rotor time 30s (cold) 17s (hot) Design B Insulation Class F Service factor 1.25 Temperature rise 80 K Duty Cycle Cont.(S1) Starting Method Direct On Line Ambient temperature -20°C to +40°C Altitude 1000 m.a.s.l. Degree of Protection IP55 Enclosure IC410 - TEAO Mounting F-1 Rotation¹ Both (CW and CCW)
Specifications
| Tag | WEG Electric |
|---|---|
| Weight | 297.0 lb |
Product details
| Manufacturer | WEG |
|---|---|
| Manufacturer part number | 01518ET3EPM254/6Y-W2 |
| KKM catalog reference | WEG-01518ET3EPM254/6Y-W2 |
| Product category | Motor |
| Published specifications | 2 attributes listed |
Request a quote for this part
Email [email protected] or call (825) 454-5367 for pricing and availability.
Frequently Asked Questions
How much does 01518ET3EPM254/6Y-W2 cost?
01518ET3EPM254/6Y-W2 is listed at CA$2,686.07 (CAD) and can be ordered directly from this page with Add to Cart. That figure is a reference price and can change: your card is authorized at checkout and charged only once our order desk confirms the part, stock, and final price, and we email you first if anything has moved. Larger quantities or custom terms — email [email protected] for a volume quote.
Who manufactures the 01518ET3EPM254/6Y-W2?
01518ET3EPM254/6Y-W2 is a WEG part. KKM Solutions sources WEG components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
Is 01518ET3EPM254/6Y-W2 discontinued, and can I still get one?
KKM Solutions does not publish a manufacturer lifecycle status for 01518ET3EPM254/6Y-W2 — check WEG's own product page for whether it is current, superseded, or end-of-life. It does not change what we can do: we source current-production, superseded and long-obsolete parts the same way, and where a part is genuinely unavailable we identify a form-fit-function equivalent. Send the part number through the quote form on this page, or use our obsolete part lookup at https://kkmsolutions.com/tools/obsolete-part-lookup/.
What are the key specifications of 01518ET3EPM254/6Y-W2?
Key specifications include Tag: WEG Electric; Weight: 297.0 lb. The full specification table on this page lists every published attribute for this part.
How quickly can 01518ET3EPM254/6Y-W2 ship?
In-stock items are dispatched the same business day for orders placed by 11 AM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Related Products
WEG Weg Electric, 01518ET3EHW254JM-S, 15 HP, 254/6JM FR, 3Ph, 230/460//190-220/380-415…

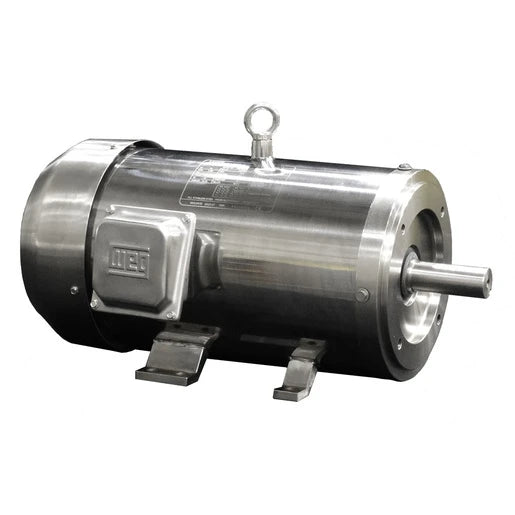

WEG Weg Electric, 01518ET3ESS254TC, 15 HP, 254TC FR, 3Ph, 230/460…

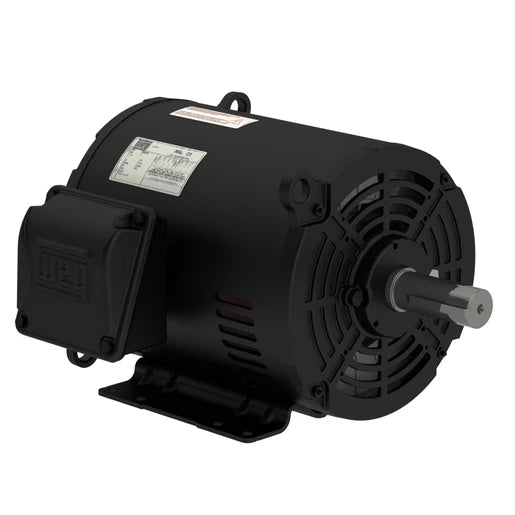

WEG Weg Electric 01518ET3EGD254TZ-S, MOTOR, 15HP, 1800 rpm, 230/460//190-220/380-415 V,…
WEG Weg Electric 01518ET3H254JM-SG, 15 Hp, 254/6JM Frame, 1800 RPM,…

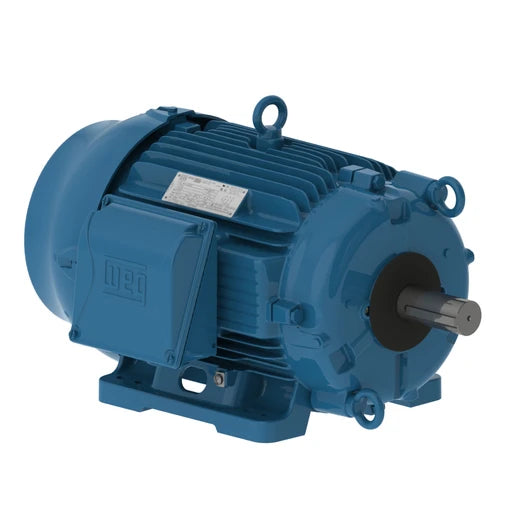

WEG Weg Electric 01518ET3ECT254TF1-WG, 15 Hp, 254T Frame, 1800 RPM,…
