WEG 01512OT3H284T-W40 — Motor
Weg Electric 01512OT3H284T-W40, 15 Hp, 284T Frame, 1200 RPM, 575 Vac, ODP, 3 PH, Foot-mounted, W40 NEMA Premium Efficiency.
Overview
01512OT3H284T-W40, 15 Hp, 284T Frame, 1200 RPM, 575 Vac, ODP, 3 PH, Foot-mounted, W40 NEMA Premium Efficiency. Engineering Data The W40 motor is a general purpose line designed for environments where dirt and moisture are minimal. The W40 cast iron frame is designed to provide maximum ventilation and heat dissipation, offering low vibration levels, high mechanical stiffness and durability. Product features Standard NEMA MG-1 Frequency 60 Hz Voltage 575 V Number of poles 6 Degree of Protection IP23 Synchronous speed 1200 rpm Output rating 15 HP Mounting Foot-mounted Flange Without Mounting F-1 Terminal box¹ Left position Enclosure IC01 - ODP Frame 284T Output 15 HP (11 kW) Number of Poles 6 Frequency 60 Hz Rated speed 1180 rpm Slip 1.67 % Rated voltage 575 V Rated current 14.7 A L. R. Amperes 92.7 A LRC 6.3x(Code G) No load current 6.24 A Rated torque 66.8 ft.lb Locked rotor torque 260 % Breakdown torque 260 % Locked rotor time 28s (cold) 16s (hot) Moment of inertia (J) 4.80 sq.ft.lb Design B Insulation Class F Service factor 1.25 Temperature rise 80 K Duty Cycle Cont.(S1) Starting Method Direct On Line Ambient temperature -20°C to +40°C Altitude 1000 m.a.s.l. Degree of Protection IP23 Enclosure IC01 - ODP Mounting F-1 Rotation¹ Both (CW and CCW) Noise level² 59.0 dB(A)
Specifications
| Tag | WEG Electric |
|---|---|
| Weight | 315.0 lb |
Product details
| Manufacturer | WEG |
|---|---|
| Manufacturer part number | 01512OT3H284T-W40 |
| KKM catalog reference | WEG-01512OT3H284T-W40 |
| Product category | Motor |
| Published specifications | 2 attributes listed |
| Related part numbers | 1 other part number in this family |
Request a quote for this part
Email [email protected] or call (825) 454-5367 for pricing and availability.
Frequently Asked Questions
How much does 01512OT3H284T-W40 cost?
01512OT3H284T-W40 is listed at CA$3,160.40 (CAD) and can be ordered directly from this page with Add to Cart. That figure is a reference price and can change: your card is authorized at checkout and charged only once our order desk confirms the part, stock, and final price, and we email you first if anything has moved. Larger quantities or custom terms — email [email protected] for a volume quote.
Who manufactures the 01512OT3H284T-W40?
01512OT3H284T-W40 is a WEG part. KKM Solutions sources WEG components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
Is 01512OT3H284T-W40 discontinued, and can I still get one?
KKM Solutions does not publish a manufacturer lifecycle status for 01512OT3H284T-W40 — check WEG's own product page for whether it is current, superseded, or end-of-life. It does not change what we can do: we source current-production, superseded and long-obsolete parts the same way, and where a part is genuinely unavailable we identify a form-fit-function equivalent. Send the part number through the quote form on this page, or use our obsolete part lookup at https://kkmsolutions.com/tools/obsolete-part-lookup/.
What are the key specifications of 01512OT3H284T-W40?
Key specifications include Tag: WEG Electric; Weight: 315.0 lb. The full specification table on this page lists every published attribute for this part.
How quickly can 01512OT3H284T-W40 ship?
In-stock items are dispatched the same business day for orders placed by 11 AM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Variants & Related Part Numbers
Other WEG part numbers in this family:
- 01512OT3H284TC-W40 — WEG 01512OT3H284TC-W40 WEG Motor (15 HP, 1200 RPM, 3 Phase, 284TC Frame,…
Related Products
WEG Weg Electric 01512ET3V284TS-W22, 15 Hp, 1200 Rpm, 284/6TS FR,…
WEG Weg Electric 01512ST3QAP284T-W22, 15 Hp, 1200 Rpm, 284/6T Frame,…
WEG Weg Electric 01512ET3V284T-W22, 15 Hp, 1200 Rpm, 284/6T FR,…

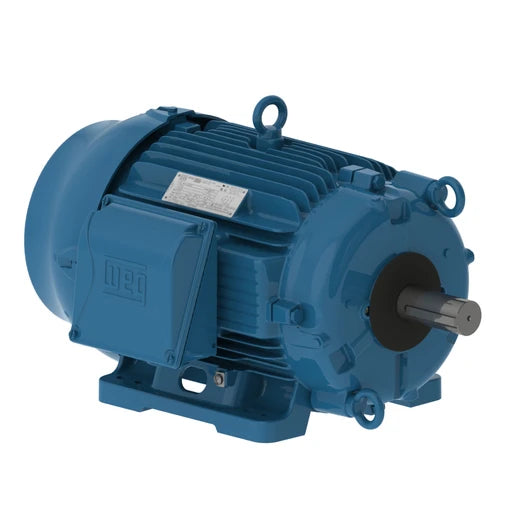

WEG Weg Electric 01518AT3ECT254T-W22G, 15 Hp, 1800 Rpm, 254T FR,…
