WEG 01018ET3E215TF2-W22 — Motor
Weg Electric 01018ET3E215TF2-W22, 10 Hp, 1800 Rpm, 213/5T Frame, 230/460//380 Vac, TEFC, 3 PH, Foot-mounted, W22 NEMA Premium Efficiency.
Overview
01018ET3E215TF2-W22, 10 Hp, 1800 Rpm, 213/5T Frame, 230/460//380 Vac, TEFC, 3 PH, Foot-mounted, W22 NEMA Premium Efficiency. Engineering Data With cast iron frame, flexible mounting, solid and whole feet, and lower noise levels and operating temperatures, the W22 motors are perfectly suitable for a great variety of industrial applications. Product features Standard NEMA MG-1 Frequency 60//50 Hz Voltage 230/460//380 V Number of poles 4 Degree of Protection IP55 Synchronous speed 1800 rpm Output rating 10 HP Mounting Foot-mounted Flange Without Mounting F-2 Terminal box¹ Right position Enclosure IC411 - TEFC Frame 213/5T Output 10 HP (7.5 kW) Number of Poles 4 Frequency 60 Hz Rated speed 1765 rpm Slip 1.94 % Rated voltage 230/460 V Rated current 24.8/12.4 A L. R. Amperes 159/79.4 A LRC 6.4x(Code H) No load current 11.3/5.65 A Rated torque 29.8 ft.lb Locked rotor torque 200 % Breakdown torque 295 % Locked rotor time 30s (cold) 17s (hot) Moment of inertia (J) 1.51 sq.ft.lb Design B Insulation Class F Service factor 1.25 Temperature rise 80 K Duty Cycle Cont.(S1) Starting Method Direct On Line Ambient temperature -20°C to +40°C Altitude 1000 m.a.s.l. Degree of Protection IP55 Enclosure IC411 - TEFC Mounting F-2 Rotation¹ Both (CW and CCW) Noise level² 58.0 dB(A)
Specifications
| Tag | WEG Electric |
|---|---|
| Weight | 176.0 lb |
Product details
| Manufacturer | WEG |
|---|---|
| Manufacturer part number | 01018ET3E215TF2-W22 |
| KKM catalog reference | WEG-01018ET3E215TF2-W22 |
| Product category | Motor |
| Published specifications | 2 attributes listed |
| Related part numbers | 14 other part numbers in this family |
Request a quote for this part
Email [email protected] or call (825) 454-5367 for pricing and availability.
Frequently Asked Questions
How much does 01018ET3E215TF2-W22 cost?
01018ET3E215TF2-W22 is listed at CA$1,667.99 (CAD) and can be ordered directly from this page with Add to Cart. That figure is a reference price and can change: your card is authorized at checkout and charged only once our order desk confirms the part, stock, and final price, and we email you first if anything has moved. Larger quantities or custom terms — email [email protected] for a volume quote.
Who manufactures the 01018ET3E215TF2-W22?
01018ET3E215TF2-W22 is a WEG part. KKM Solutions sources WEG components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
Is 01018ET3E215TF2-W22 discontinued, and can I still get one?
KKM Solutions does not publish a manufacturer lifecycle status for 01018ET3E215TF2-W22 — check WEG's own product page for whether it is current, superseded, or end-of-life. It does not change what we can do: we source current-production, superseded and long-obsolete parts the same way, and where a part is genuinely unavailable we identify a form-fit-function equivalent. Send the part number through the quote form on this page, or use our obsolete part lookup at https://kkmsolutions.com/tools/obsolete-part-lookup/.
What are the key specifications of 01018ET3E215TF2-W22?
Key specifications include Tag: WEG Electric; Weight: 176.0 lb. The full specification table on this page lists every published attribute for this part.
How quickly can 01018ET3E215TF2-W22 ship?
In-stock items are dispatched the same business day for orders placed by 11 AM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Variants & Related Part Numbers
Other WEG part numbers in this family:
- 01018ET3E215HP-W22 — WEG 01018ET3E215HP-W22
- 01018ET3E215JM-W22 — WEG 01018ET3E215JM-W22
- 01018ET3E215JP-S — WEG 01018ET3E215JP-S
- 01018ET3E215JP-SG — WEG 01018ET3E215JP-SG
- 01018ET3E215JP-W22 — WEG 01018ET3E215JP-W22
- 01018ET3E215T-S — WEG 01018ET3E215T-S
- 01018ET3E215T-SG — WEG 01018ET3E215T-SG
- 01018ET3E215T-W22 — WEG 01018ET3E215T-W22
- 01018ET3E215T-W22G — WEG 01018ET3E215T-W22G
- 01018ET3E215TC-S — WEG 01018ET3E215TC-S
- 01018ET3E215TC-SG — WEG 01018ET3E215TC-SG
- 01018ET3E215TC-W22 — WEG 01018ET3E215TC-W22
- 01018ET3E215TC-W22G — Weg Electric 01018ET3E215TC-W22G, 10 Hp, 1800 Rpm, 213/5TC FR, 230/460//380 Vac, TEFC,…
- 01018ET3E215TF3-W22 — WEG 01018ET3E215TF3-W22
Related Products

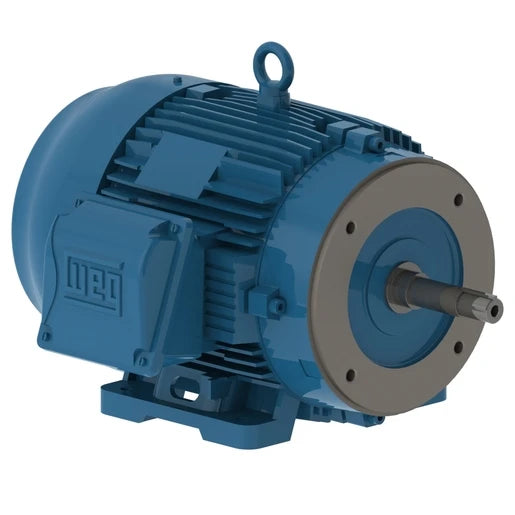

WEG Weg Electric 01018ET3E215TC-W22G, 10 Hp, 1800 Rpm, 213/5TC FR,…
WEG Weg Electric 01018ET3ECT215TF1-WG, 10 Hp, 1800 Rpm, 213/5T FR,…
WEG Weg Electric 01018ET3E215JM-W22G, 10 Hp, 1800 Rpm, 213/5JM FR,…

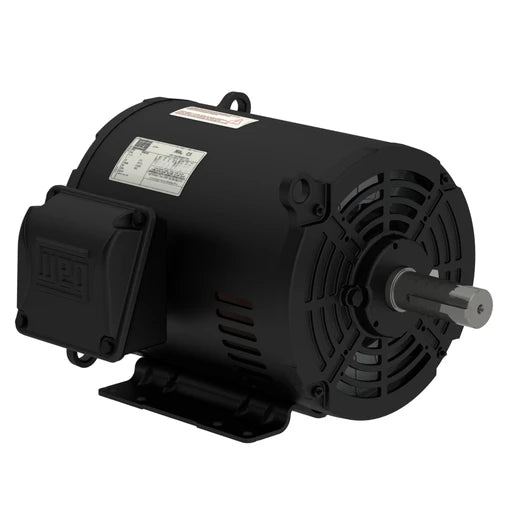

WEG Weg Electric 01018ET3EGD215TZ-S, MOTOR, 10HP, 1800 rpm, 230/460//190-220/380-415 V,…
