WEG 00736OP3HFP184JMV-S — Motor
Weg Electric 00736OP3HFP184JMV-S, 7 1/2 Hp, 3600 Rpm, 182/4JM Frame, 575 Vac, ODP, 3 PH, Footless, Rolled Steel JM Pump High Efficiency.
Overview
00736OP3HFP184JMV-S, 7 1/2 Hp, 3600 Rpm, 182/4JM Frame, 575 Vac, ODP, 3 PH, Footless, Rolled Steel JM Pump High Efficiency. Engineering Data The W01 Rolled Steel motors were especially developed for fire pump application. They ensure maximum performance and robustness in environments where dirt and humidity are minimal. Product features Standard NEMA MG-1 Frequency 60 Hz Voltage 575 V Number of poles 2 Synchronous speed 3600 rpm Output rating 7.5 HP Mounting Footless Flange C Mounting W-6 Terminal box¹ Left position Enclosure IC01 - ODP Frame 182/4JM Output 7.5 HP (5.5 kW) Number of Poles 2 Frequency 60 Hz Rated speed 3500 rpm Slip 2.78 % Rated voltage 575 V Rated current 7.09 A L. R. Amperes 49.6 A LRC 7.0x(Code H) No load current 2.80 A Rated torque 11.3 ft.lb Locked rotor torque 180 % Breakdown torque 280 % Locked rotor time 14s (cold) 8s (hot) Moment of inertia (J) 0.1559 sq.ft.lb Design B Insulation Class F Service factor 1.15 Temperature rise 80 K Duty Cycle Cont.(S1) Starting Method Direct On Line Ambient temperature -20°C to +40°C Altitude 1000 m.a.s.l. Enclosure IC01 - ODP Mounting W-6 Rotation¹ Both (CW and CCW) Noise level² 65.0 dB(A)
Specifications
| Tag | WEG Electric |
|---|---|
| Weight | 71.0 lb |
Product details
| Manufacturer | WEG |
|---|---|
| Manufacturer part number | 00736OP3HFP184JMV-S |
| KKM catalog reference | WEG-00736OP3HFP184JMV-S |
| Product category | Motor |
| Published specifications | 2 attributes listed |
| Related part numbers | 2 other part numbers in this family |
Request a quote for this part
Email [email protected] or call (825) 454-5367 for pricing and availability.
Frequently Asked Questions
How much does 00736OP3HFP184JMV-S cost?
00736OP3HFP184JMV-S is listed at CA$1,472.23 (CAD) and can be ordered directly from this page with Add to Cart. That figure is a reference price and can change: your card is authorized at checkout and charged only once our order desk confirms the part, stock, and final price, and we email you first if anything has moved. Larger quantities or custom terms — email [email protected] for a volume quote.
Who manufactures the 00736OP3HFP184JMV-S?
00736OP3HFP184JMV-S is a WEG part. KKM Solutions sources WEG components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
Is 00736OP3HFP184JMV-S discontinued, and can I still get one?
KKM Solutions does not publish a manufacturer lifecycle status for 00736OP3HFP184JMV-S — check WEG's own product page for whether it is current, superseded, or end-of-life. It does not change what we can do: we source current-production, superseded and long-obsolete parts the same way, and where a part is genuinely unavailable we identify a form-fit-function equivalent. Send the part number through the quote form on this page, or use our obsolete part lookup at https://kkmsolutions.com/tools/obsolete-part-lookup/.
What are the key specifications of 00736OP3HFP184JMV-S?
Key specifications include Tag: WEG Electric; Weight: 71.0 lb. The full specification table on this page lists every published attribute for this part.
How quickly can 00736OP3HFP184JMV-S ship?
In-stock items are dispatched the same business day for orders placed by 11 AM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Variants & Related Part Numbers
Other WEG part numbers in this family:

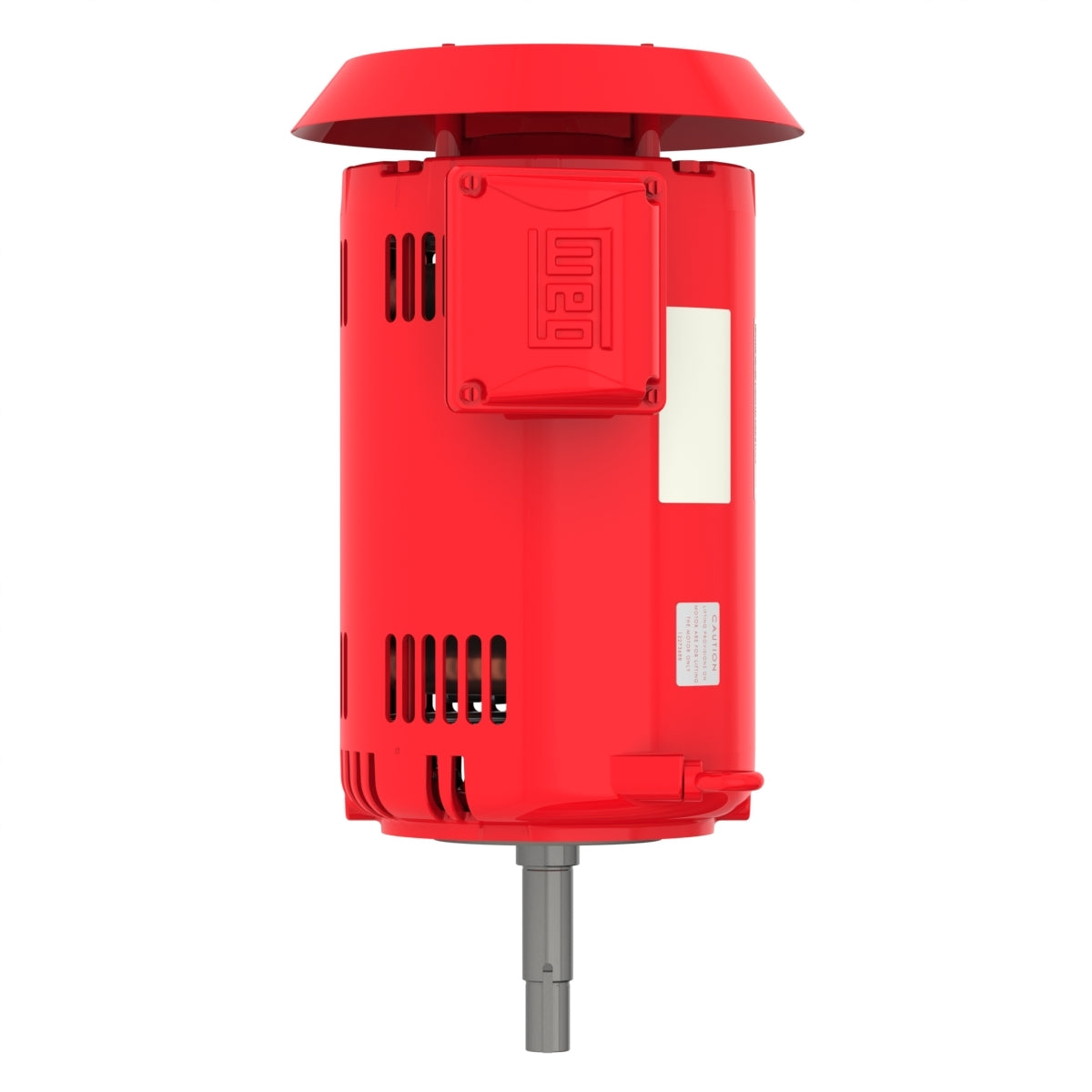

- 00736OP3HFP184JPV-S — Weg Electric 00736OP3HFP184JPV-S, 7 1/2 Hp, 3600 Rpm, 182/4JP Frame, 575 Vac,…
