WEG 00736ET3H213JM-SG — Motor
Weg Electric 00736ET3H213JM-SG, 7 1/2 Hp, 213/5JM Frame, 3600 RPM, 575 Vac, TEFC, 3 PH, Foot-mounted, Rolled Steel JM Pump NEMA Premium Efficiency.
Overview
00736ET3H213JM-SG, 7 1/2 Hp, 213/5JM Frame, 3600 RPM, 575 Vac, TEFC, 3 PH, Foot-mounted, Rolled Steel JM Pump NEMA Premium Efficiency. Engineering Data The W01 motor is the perfect option for applications that require robustness, low weight and high performance in a single product. The W01 Rolled Steel platform has good thermal performance and easy installation and maintenance. Product features Standard NEMA MG-1 Frequency 60 Hz Voltage 575 V Number of poles 2 Degree of Protection IP55 Synchronous speed 3600 rpm Output rating 7.5 HP Mounting Foot-mounted Flange C Mounting F-1 Terminal box¹ Left position Enclosure IC411 - TEFC Frame 213/5JM Output 7.5 HP (5.5 kW) Number of Poles 2 Frequency 60 Hz Rated speed 3530 rpm Slip 1.94 % Rated voltage 575 V Rated current 6.94 A L. R. Amperes 52.7 A LRC 7.6x(Code H) No load current 2.65 A Rated torque 11.2 ft.lb Locked rotor torque 260 % Breakdown torque 300 % Locked rotor time 27s (cold) 15s (hot) Moment of inertia (J) 0.5496 sq.ft.lb Design B Insulation Class F Service factor 1.15 Temperature rise 80 K Duty Cycle Cont.(S1) Starting Method Direct On Line Ambient temperature -20°C to +40°C Altitude 1000 m.a.s.l. Degree of Protection IP55 Enclosure IC411 - TEFC Mounting F-1 Rotation¹ Both (CW and CCW) Noise level² 70.0 dB(A)
Specifications
| Tag | WEG Electric |
|---|---|
| Weight | 142.0 lb |
Product details
| Manufacturer | WEG |
|---|---|
| Manufacturer part number | 00736ET3H213JM-SG |
| KKM catalog reference | WEG-00736ET3H213JM-SG |
| Product category | Motor |
| Published specifications | 2 attributes listed |
| Related part numbers | 11 other part numbers in this family |
Request a quote for this part
Email [email protected] or call (825) 454-5367 for pricing and availability.
Frequently Asked Questions
How much does 00736ET3H213JM-SG cost?
00736ET3H213JM-SG is listed at CA$2,155.41 (CAD) and can be ordered directly from this page with Add to Cart. That figure is a reference price and can change: your card is authorized at checkout and charged only once our order desk confirms the part, stock, and final price, and we email you first if anything has moved. Larger quantities or custom terms — email [email protected] for a volume quote.
Who manufactures the 00736ET3H213JM-SG?
00736ET3H213JM-SG is a WEG part. KKM Solutions sources WEG components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
Is 00736ET3H213JM-SG discontinued, and can I still get one?
KKM Solutions does not publish a manufacturer lifecycle status for 00736ET3H213JM-SG — check WEG's own product page for whether it is current, superseded, or end-of-life. It does not change what we can do: we source current-production, superseded and long-obsolete parts the same way, and where a part is genuinely unavailable we identify a form-fit-function equivalent. Send the part number through the quote form on this page, or use our obsolete part lookup at https://kkmsolutions.com/tools/obsolete-part-lookup/.
What are the key specifications of 00736ET3H213JM-SG?
Key specifications include Tag: WEG Electric; Weight: 142.0 lb. The full specification table on this page lists every published attribute for this part.
How quickly can 00736ET3H213JM-SG ship?
In-stock items are dispatched the same business day for orders placed by 11 AM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Variants & Related Part Numbers
Other WEG part numbers in this family:
- 00736ET3H213JM-S — WEG 00736ET3H213JM-S WEG Close Coupled Pump Motor (7 .5 HP, 3 Phase,…
- 00736ET3H213JM-W22 — Weg Electric 00736ET3H213JM-W22, 7 1/2 Hp, 3600 Rpm, 213/5JM Frame, 575 Vac,…
- 00736ET3H213JP-S — Weg 00736ET3H213JP-S NEMA Premium TEFC three-phase motor, 7.5 HP, 3600 RPM, 213JP…
- 00736ET3H213JP-W22 — Weg 00736ET3H213JP-W22 7.5HP 3600RPM NEMA Premium three-phase TEFC motor with 213JP close-coupled…
- 00736ET3H213T-S — Weg 00736ET3H213T-S 7.5HP 3600RPM NEMA Premium TEFC three-phase motor, 575V 60Hz, 213T…
- 00736ET3H213T-SG — Weg Electric 00736ET3H213T-SG, 7 1/2 Hp, 3600 Rpm, 213/5T Frame, 575 Vac,…
- 00736ET3H213T-W22 — Weg 00736ET3H213T-W22 7.5HP 3520RPM 213/5T frame TEFC three-phase motor, 575V 60Hz, NEMA…
- 00736ET3H213T-W22G — Weg Electric 00736ET3H213T-W22G, 7.5 Hp, 3600 Rpm, 213/5T FR, 575 Vac, TEFC,…
- 00736ET3H213TC-S — Weg 00736ET3H213TC-S NEMA Premium TEFC three-phase motor, 7.5 HP, 3600 RPM, 575V,…
- 00736ET3H213TC-W22 — Weg 00736ET3H213TC-W22 7.5HP 3600RPM NEMA Premium TEFC three-phase motor with 213TC C-face…
- 00736ET3H213TF2-W22 — Weg 00736ET3H213TF2-W22 7.5HP 3600RPM three-phase TEFC motor, 575V 60Hz, NEMA 213T frame.…
Related Products
WEG Weg Electric 00736ET3H184TC-S, 7 1/2 Hp, 3600 Rpm, 182/4TC…

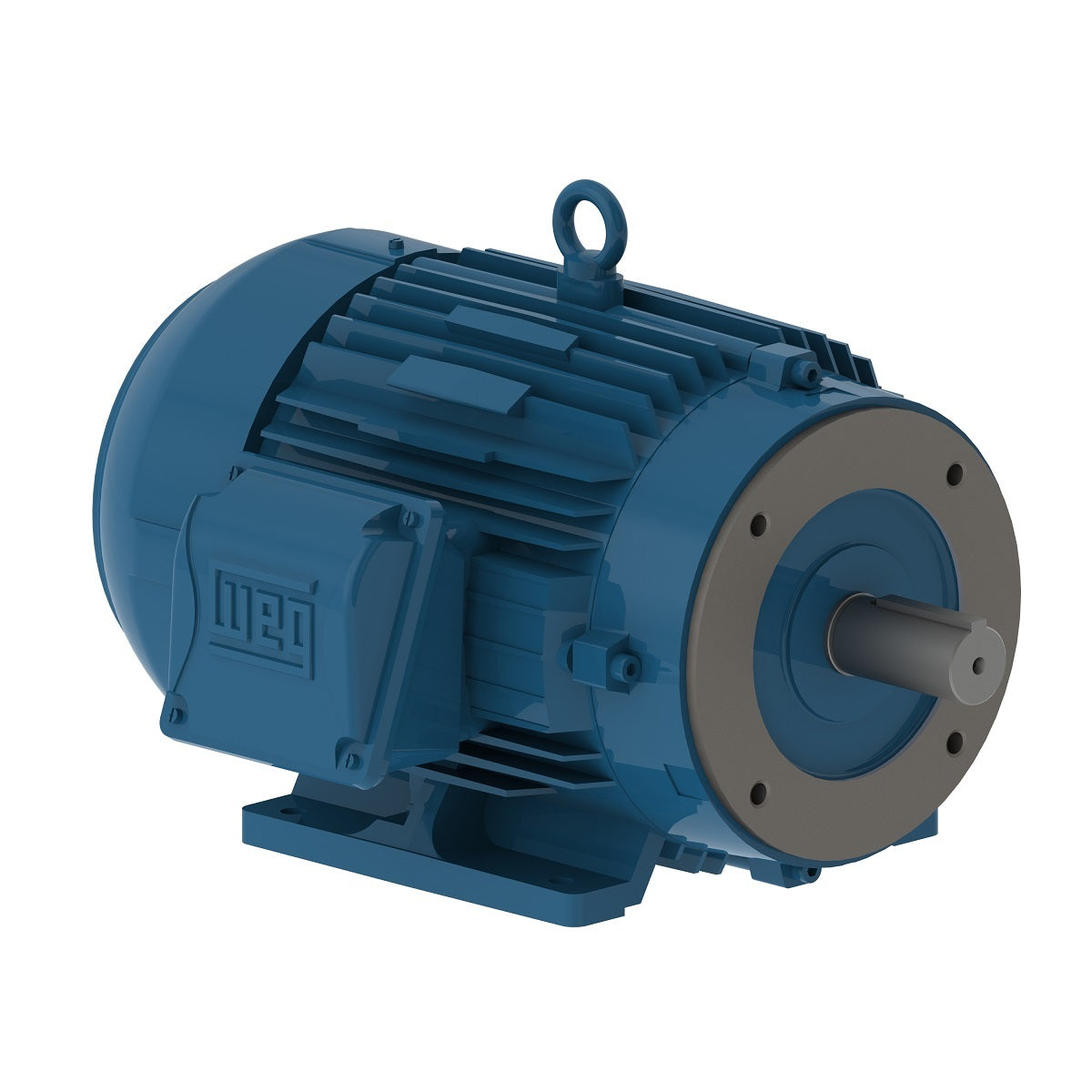

WEG Weg Electric 00736ET3H213JM-W22, 7 1/2 Hp, 3600 Rpm, 213/5JM…

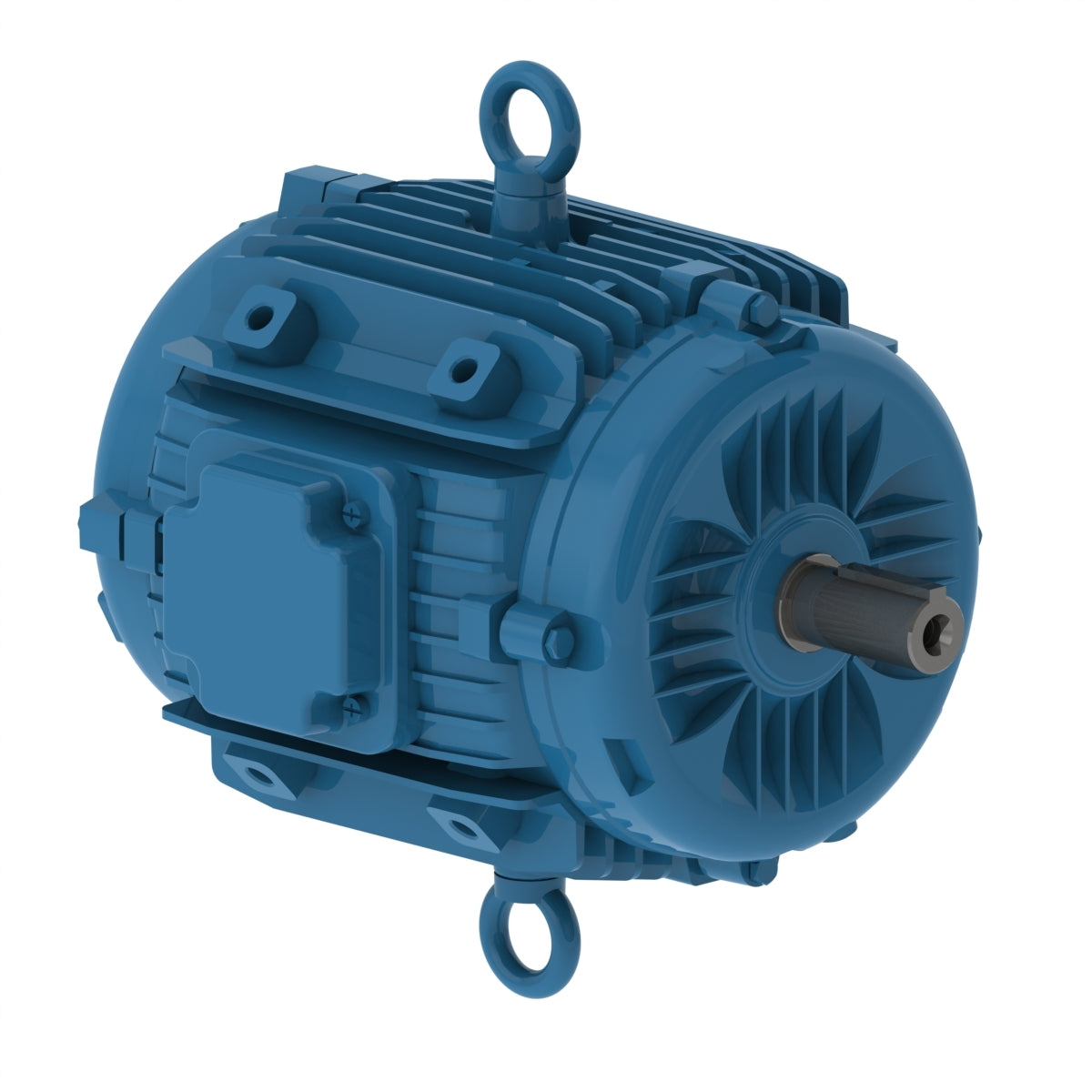

WEG Weg Electric 00736ET3EPM213/5Y-W2, 7 1/2 Hp, 3600 Rpm, 215YZ…
WEG Weg Electric 00736ET3H213T-SG, 7 1/2 Hp, 3600 Rpm, 213/5T…

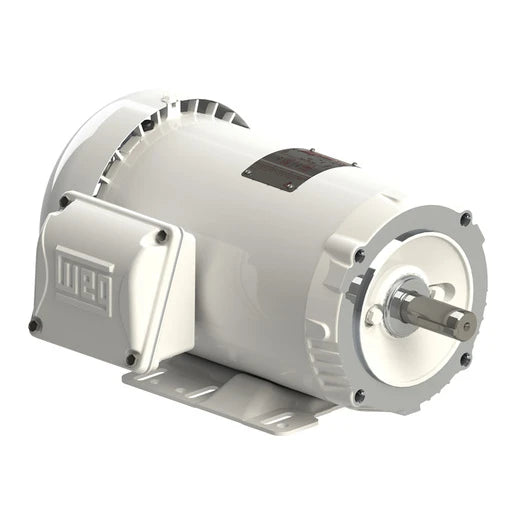

WEG Weg Electric, 00736ET3EHW213JM-S, 7.5 HP, 213/5JM FR, 3Ph, 230/460//190-220/380-415…
