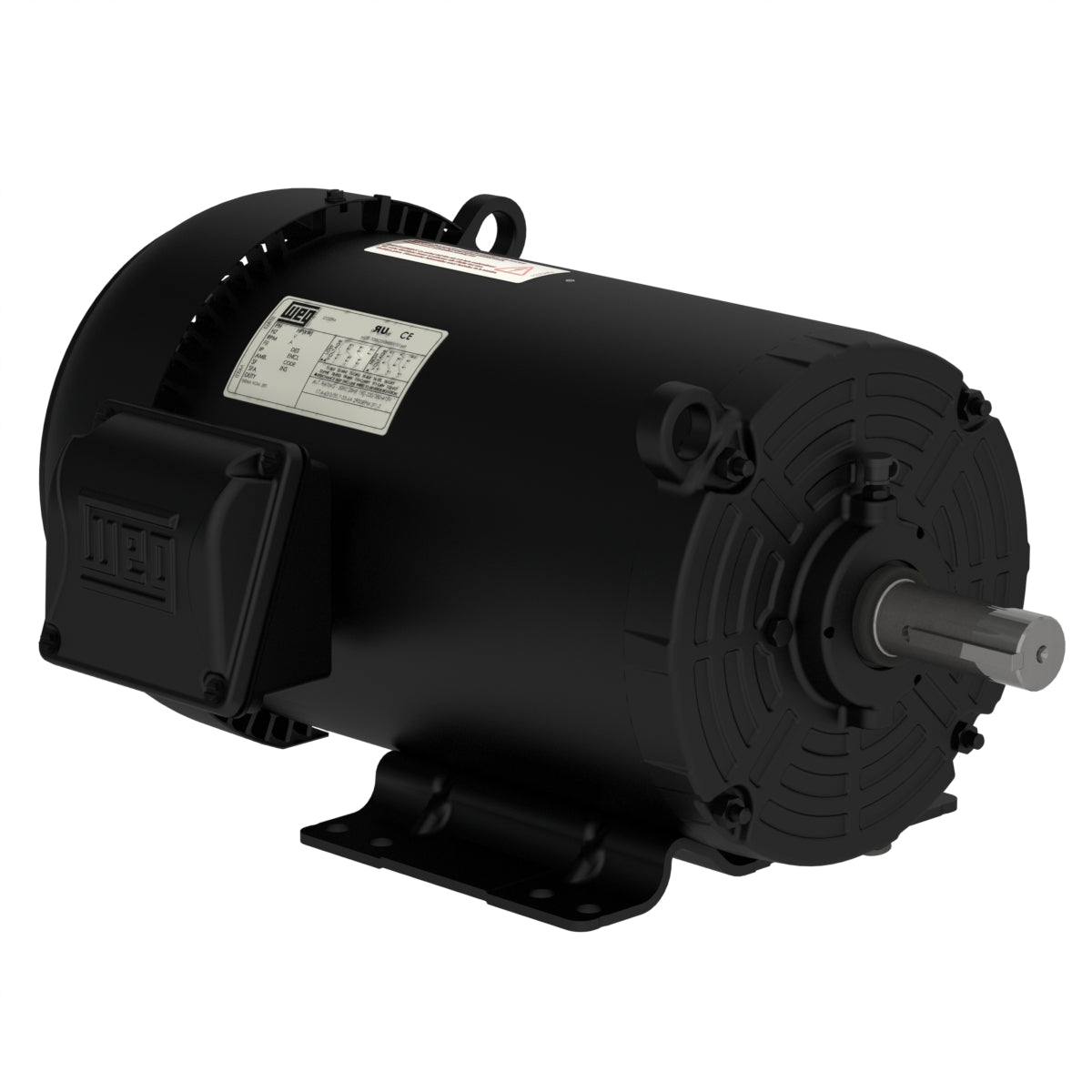

WEG 00518ET3H184JM-SG — Motor
Weg Electric 00518ET3H184JM-SG, 5 Hp, 1800 Rpm, 182/4JM FR, 575 Vac, TEFC, 3 PH, Foot-mounted, Rolled Steel JM Pump.
Overview
00518ET3H184JM-SG, 5 Hp, 1800 Rpm, 182/4JM FR, 575 Vac, TEFC, 3 PH, Foot-mounted, Rolled Steel JM Pump. Engineering Data Standard NEMA MG-1 Frequency 60 Hz Voltage 575 V Number of poles 4 Degree of Protection IP55 Synchronous speed 1800 rpm Output rating 5 HP Mounting Foot-mounted Flange C Mounting F-1 Terminal box¹ Left position Enclosure IC411 - TEFC Frame 182/4JM Output 5 HP (3.7 kW) Number of Poles 4 Frequency 60 Hz Rated speed 1750 rpm Slip 2.78 % Rated voltage 575 V Rated current 5.19 A L. R. Amperes 36.3 A LRC 7.0x(Code J) No load current 2.75 A Rated torque 15.0 ft.lb Locked rotor torque 220 % Breakdown torque 300 % Locked rotor time 28s (cold) 16s (hot) Moment of inertia (J) 0.3080 sq.ft.lb Design B Insulation Class F Service factor 1.15 Temperature rise 80 K Duty Cycle Cont.(S1) Starting Method Direct On Line Ambient temperature -20°C to +40°C Altitude 1000 m.a.s.l. Degree of Protection IP55 Enclosure IC411 - TEFC Mounting F-1 Rotation¹ Both (CW and CCW) Noise level² 56.0 dB(A)
Specifications
| Tag | WEG Electric |
|---|---|
| Weight | 94.0 lb |
Product details
| Manufacturer | WEG |
|---|---|
| Manufacturer part number | 00518ET3H184JM-SG |
| KKM catalog reference | WEG-00518ET3H184JM-SG |
| Product category | Motor |
| Published specifications | 2 attributes listed |
| Related part numbers | 10 other part numbers in this family |
Request a quote for this part
Email [email protected] or call (825) 454-5367 for pricing and availability.
Frequently Asked Questions
How much does 00518ET3H184JM-SG cost?
00518ET3H184JM-SG is listed at CA$1,743.98 (CAD) and can be ordered directly from this page with Add to Cart. That figure is a reference price and can change: your card is authorized at checkout and charged only once our order desk confirms the part, stock, and final price, and we email you first if anything has moved. Larger quantities or custom terms — email [email protected] for a volume quote.
Who manufactures the 00518ET3H184JM-SG?
00518ET3H184JM-SG is a WEG part. KKM Solutions sources WEG components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
Is 00518ET3H184JM-SG discontinued, and can I still get one?
KKM Solutions does not publish a manufacturer lifecycle status for 00518ET3H184JM-SG — check WEG's own product page for whether it is current, superseded, or end-of-life. It does not change what we can do: we source current-production, superseded and long-obsolete parts the same way, and where a part is genuinely unavailable we identify a form-fit-function equivalent. Send the part number through the quote form on this page, or use our obsolete part lookup at https://kkmsolutions.com/tools/obsolete-part-lookup/.
What are the key specifications of 00518ET3H184JM-SG?
Key specifications include Tag: WEG Electric; Weight: 94.0 lb. The full specification table on this page lists every published attribute for this part.
How quickly can 00518ET3H184JM-SG ship?
In-stock items are dispatched the same business day for orders placed by 11 AM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Variants & Related Part Numbers
Other WEG part numbers in this family:
- 00518ET3H184JM-S — WEG 00518ET3H184JM-S WEG Close Coupled Pump Motor (5 HP, 3 Phase, 575…
- 00518ET3H184JM-W22 — Weg 00518ET3H184JM-W22
- 00518ET3H184JP-W22 — Weg 00518ET3H184JP-W22 5HP 1800RPM NEMA Premium efficiency three-phase motor, 575V 60Hz, 184JP…
- 00518ET3H184T-S — Weg 00518ET3H184T-S
- 00518ET3H184T-SG — Weg Electric 00518ET3H184T-SG, 5 Hp, 1800 Rpm, 182/4T FR, 575 Vac, TEFC,…
- 00518ET3H184T-SRT — Weg 00518ET3H184T-SRT 5HP 1800 RPM three-phase TEFC motor, 575V 60Hz, NEMA 184T…
- 00518ET3H184T-W22 — Weg 00518ET3H184T-W22 5HP 1800RPM NEMA Premium TEFC three-phase motor, 575V, 60Hz, 184T…
- 00518ET3H184T-W22G — Weg Electric 00518ET3H184T-W22G, 5 Hp, 1800 Rpm, 182/4TC FR, 575 Vac, TEFC,…
- 00518ET3H184TC-S — WEG 00518ET3H184TC-S WEG Motor (5 HP, 1800 RPM, 3 Phase, 60 Hz,…
- 00518ET3H184TC-W22 — Weg 00518ET3H184TC-W22 5HP 1800RPM 184TC TEFC three-phase motor, 575V 60Hz NEMA Premium…
Related Products
WEG Weg Electric, 00518ET3EHW184JM-S, 5 HP, 182/4JM FR, 3Ph, 230/460//190-220/380-415…
WEG Weg Electric 00518ET3H184T-SG, 5 Hp, 1800 Rpm, 182/4T FR,…

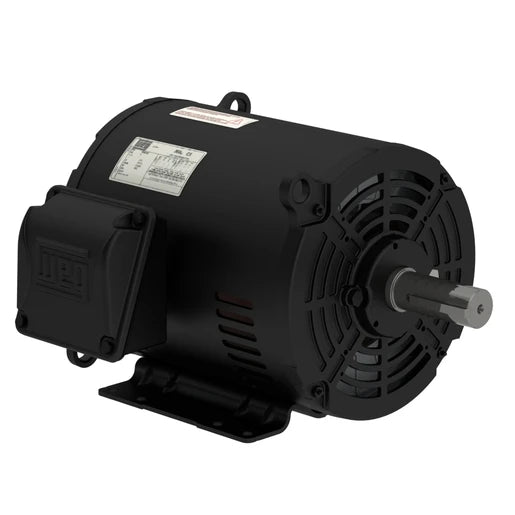

WEG Weg Electric 00518ET3EGD184TZ-S, MOTOR, 5HP, 1800 rpm, 230/460//190-220/380-415 V,…
WEG Weg Electric 00518ET3H184T-W22G, 5 Hp, 1800 Rpm, 182/4TC FR,…

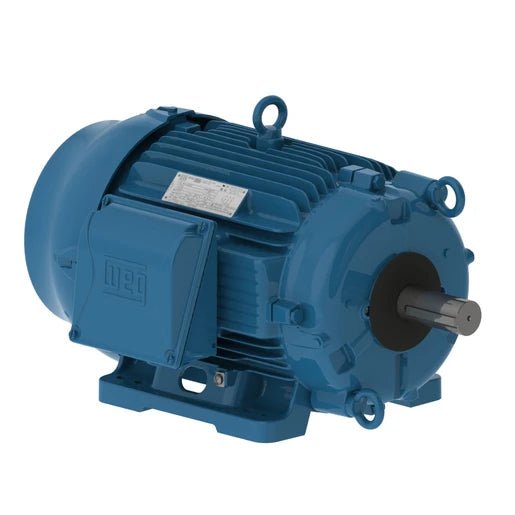

WEG Weg Electric 00518ET3ECT184TF1-WG, 5 Hp, 1800 Rpm, 182/4T Frame,…
