WEG 00318OT3H182T-SGH — Motor
Weg Electric 00318OT3H182T-SGH, 3 Hp, 1800 Rpm, 182/4T Frame, 575 Vac, ODP, 3 PH, Foot-Mounted, ROLLED STEEL NEMA Premium Efficiency, 15379007
Overview
Weg Electric 00318OT3H182T-SGH, 3 Hp, 1800 Rpm, 182/4T Frame, 575 Vac, ODP, 3 PH, Foot-Mounted, ROLLED STEEL NEMA Premium Efficiency, 15379007 SPECIFICATIONS Frame 182/4T Output 3 HP (2.2 kW) Number of Poles 4 Frequency 60 Hz Rated speed 1765 rpm Slip 1.94 % Rated voltage 575 V Rated current 3.09 A L. R. Amperes 25.9 A LRC 8.4x(Code K) No load current 1.66 A Rated torque 8.93 ft.lb Locked rotor torque 220 % Breakdown torque 330 % Locked rotor time 27s (cold) 15s (hot) Moment of inertia (J) 0.3092 sq.ft.lb Design B Insulation Class H Service factor 1.15 Temperature rise 80 K Duty Cycle Cont.(S1) Starting Method Direct On Line Ambient temperature -20°C to +40°C Altitude 1000 m.a.s.l. Enclosure IC01 - ODP Mounting F-1 Rotation¹ Both (CW and CCW) Noise level² 55.0 dB(A) Approx. weight³ 65.0 lb
Specifications
| Tag | WEG Electric |
|---|---|
| Weight | 65.0 lb |
Product details
| Manufacturer | WEG |
|---|---|
| Manufacturer part number | 00318OT3H182T-SGH |
| KKM catalog reference | WEG-00318OT3H182T-SGH |
| Product category | Motor |
| Published specifications | 2 attributes listed |
| Related part numbers | 5 other part numbers in this family |
Request a quote for this part
Email [email protected] or call (825) 454-5367 for pricing and availability.
Frequently Asked Questions
How much does 00318OT3H182T-SGH cost?
00318OT3H182T-SGH is listed at CA$999.75 (CAD) and can be ordered directly from this page with Add to Cart. That figure is a reference price and can change: your card is authorized at checkout and charged only once our order desk confirms the part, stock, and final price, and we email you first if anything has moved. Larger quantities or custom terms — email [email protected] for a volume quote.
Who manufactures the 00318OT3H182T-SGH?
00318OT3H182T-SGH is a WEG part. KKM Solutions sources WEG components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
Is 00318OT3H182T-SGH discontinued, and can I still get one?
KKM Solutions does not publish a manufacturer lifecycle status for 00318OT3H182T-SGH — check WEG's own product page for whether it is current, superseded, or end-of-life. It does not change what we can do: we source current-production, superseded and long-obsolete parts the same way, and where a part is genuinely unavailable we identify a form-fit-function equivalent. Send the part number through the quote form on this page, or use our obsolete part lookup at https://kkmsolutions.com/tools/obsolete-part-lookup/.
What are the key specifications of 00318OT3H182T-SGH?
Key specifications include Tag: WEG Electric; Weight: 65.0 lb. The full specification table on this page lists every published attribute for this part.
How quickly can 00318OT3H182T-SGH ship?
In-stock items are dispatched the same business day for orders placed by 11 AM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Variants & Related Part Numbers
Other WEG part numbers in this family:
- 00318OT3H182JM-S — Weg 00318OT3H182JM-S NEMA Premium ODP three-phase motor, 3HP 1800RPM 575V 182JM close…
- 00318OT3H182JM-SG — Weg Electric 00318OT3H182JM-SG, 3 Hp, 1800 Rpm, 182/4JM Frame, 575 Vac, ODP,…
- 00318OT3H182T-S — Weg 00318OT3H182T-S NEMA Premium efficiency three-phase motor, 3HP, 1800 RPM, 575V, 60Hz,…
- 00318OT3H182T-SG — Weg 00318OT3H182T-SG NEMA Premium ODP three-phase motor, 3 HP at 1800 RPM,…
- 00318OT3H182TC-S — Weg 00318OT3H182TC-S NEMA Premium efficiency three-phase motor with open drip-proof enclosure, 3HP,…
Related Products
WEG Weg Electric 00318OT3H182JM-SG, 3 Hp, 1800 Rpm, 182/4JM Frame,…
WEG Weg Electric 00318OT3P182T-SGH, 3 Hp, 1800 Rpm, 182/4T Frame,200…
WEG Weg Electric 00318OT3E182T-SGH, 3 Hp, 1800 Rpm, 182/4T Frame,…
WEG Weg Electric 00318OT3P182TF2-S, 3 Hp, 1800 Rpm, 182/4T Frame,…

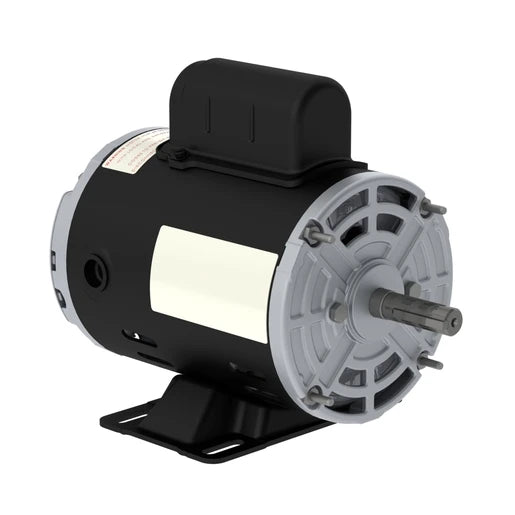

WEG Weg Electric, 00318OS1DCD56H-S, 3 Hp, 1800 Rpm, 230 Vac,…
