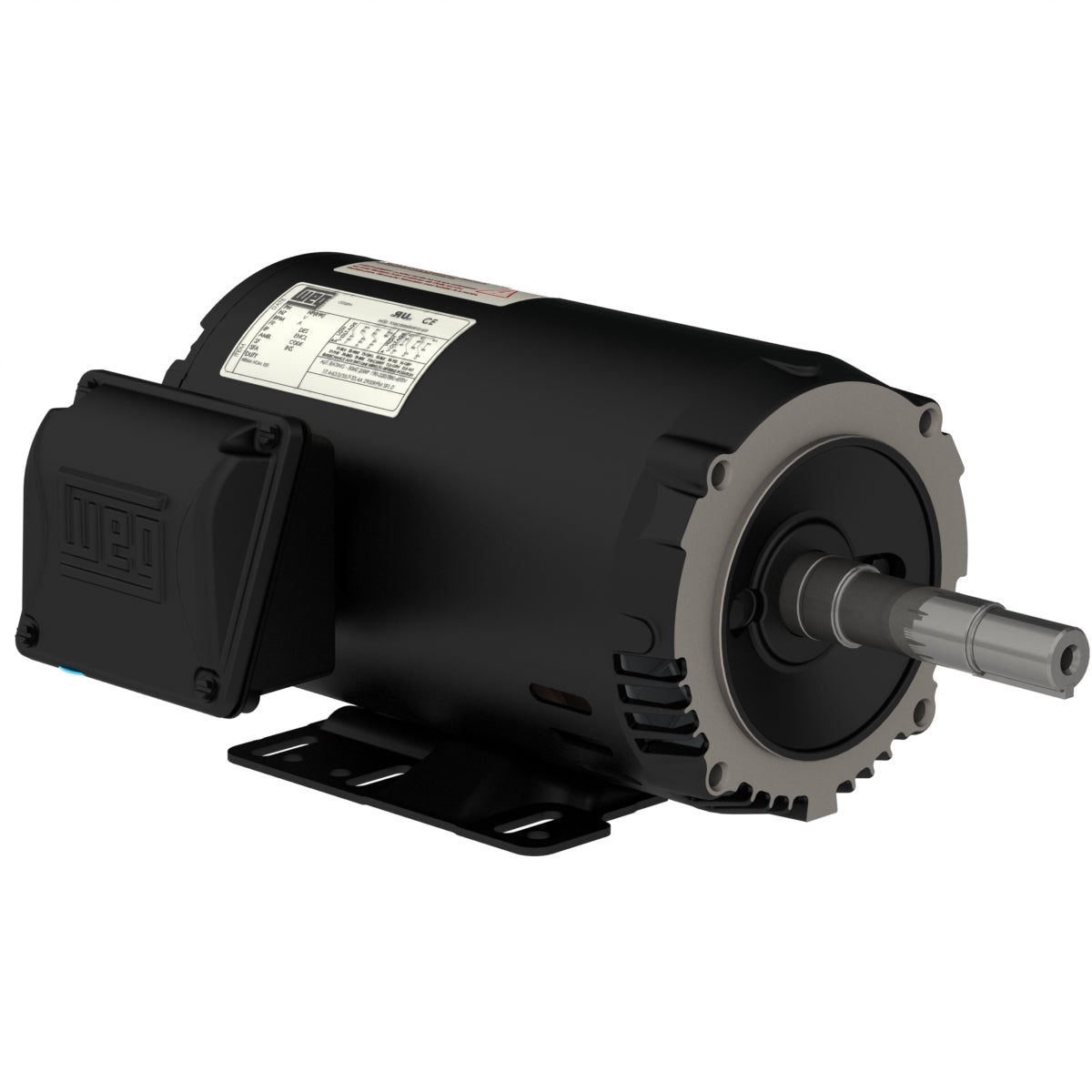

WEG 00236OT3H145JM-SG — Motor
Weg Electric 00236OT3H145JM-SG, 2 Hp, 143/5JM Frame, 3600 RPM, 575 Vac, ODP, 3 PH, Foot-mounted, Rolled Steel JM Pump.
Overview
00236OT3H145JM-SG, 2 Hp, 143/5JM Frame, 3600 RPM, 575 Vac, ODP, 3 PH, Foot-mounted, Rolled Steel JM Pump. Engineering Data The Rolled Steel motors line were developed for applications that demand performance, robustness and low weight integrated into a single product. The electrical and mechanical concept of the line make the motor present an optimum cost-benefit, providing reliability and energy savings. Product features Standard NEMA MG-1 Frequency 60 Hz Voltage 575 V Number of poles 2 Synchronous speed 3600 rpm Output rating 2 HP Mounting Foot-mounted Flange C Mounting F-1 Terminal box¹ Left position Enclosure IC01 - ODP Frame 143/5JM Output 2 HP (1.5 kW) Number of Poles 2 Frequency 60 Hz Rated speed 3510 rpm Slip 2.50 % Rated voltage 575 V Rated current 1.94 A L. R. Amperes 17.2 A LRC 8.9x(Code K) No load current 0.734 A Rated torque 2.99 ft.lb Locked rotor torque 220 % Breakdown torque 330 % Locked rotor time 25s (cold) 14s (hot) Moment of inertia (J) 0.1151 sq.ft.lb Design B Insulation Class F Service factor 1.15 Temperature rise 80 K Duty Cycle Cont.(S1) Starting Method Direct On Line Ambient temperature -20°C to +40°C Altitude 1000 m.a.s.l. Enclosure IC01 - ODP Mounting F-1 Rotation¹ Both (CW and CCW) Noise level² 62.0 dB(A)
Specifications
| Tag | WEG Electric |
|---|---|
| Weight | 38.0 lb |
Product details
| Manufacturer | WEG |
|---|---|
| Manufacturer part number | 00236OT3H145JM-SG |
| KKM catalog reference | WEG-00236OT3H145JM-SG |
| Product category | Motor |
| Published specifications | 2 attributes listed |
| Related part numbers | 3 other part numbers in this family |
Request a quote for this part
Email [email protected] or call (825) 454-5367 for pricing and availability.
Frequently Asked Questions
How much does 00236OT3H145JM-SG cost?
00236OT3H145JM-SG is listed at CA$943.40 (CAD) and can be ordered directly from this page with Add to Cart. That figure is a reference price and can change: your card is authorized at checkout and charged only once our order desk confirms the part, stock, and final price, and we email you first if anything has moved. Larger quantities or custom terms — email [email protected] for a volume quote.
Who manufactures the 00236OT3H145JM-SG?
00236OT3H145JM-SG is a WEG part. KKM Solutions sources WEG components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
Is 00236OT3H145JM-SG discontinued, and can I still get one?
KKM Solutions does not publish a manufacturer lifecycle status for 00236OT3H145JM-SG — check WEG's own product page for whether it is current, superseded, or end-of-life. It does not change what we can do: we source current-production, superseded and long-obsolete parts the same way, and where a part is genuinely unavailable we identify a form-fit-function equivalent. Send the part number through the quote form on this page, or use our obsolete part lookup at https://kkmsolutions.com/tools/obsolete-part-lookup/.
What are the key specifications of 00236OT3H145JM-SG?
Key specifications include Tag: WEG Electric; Weight: 38.0 lb. The full specification table on this page lists every published attribute for this part.
How quickly can 00236OT3H145JM-SG ship?
In-stock items are dispatched the same business day for orders placed by 11 AM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Variants & Related Part Numbers
Other WEG part numbers in this family:
- 00236OT3H145JM-S — Weg 00236OT3H145JM-S NEMA Premium efficiency three-phase motor, 2HP 3600RPM, 575V, 60Hz, 145JM…
- 00236OT3H145T-S — Weg 00236OT3H145T-S NEMA Premium ODP three-phase motor, 2HP, 3600RPM, 575V, 60Hz, 145T…
- 00236OT3H145TC-S — WEG 00236OT3H145TC-S WEG Motor (2 HP, 3600 RPM, 3 Phase, 143/5TC, ODP,…
Related Products
WEG Weg Electric 00236OS3EJPR56J-S48P, 2 Hp, 56J Frame, 3600 RPM,…
WEG Weg Electric 00236OT3V145T-S, 2 Hp, 3600 Rpm, 143/5T Frame,…

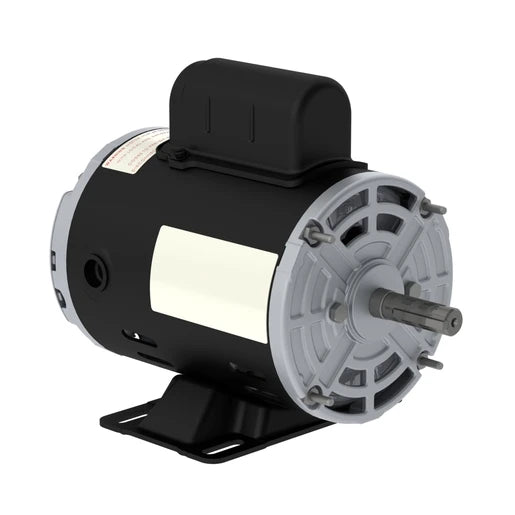

WEG Weg Electric, 00236OS1BCD56H-S, 2 Hp, 3600 Rpm, 115/208-230 Vac,…

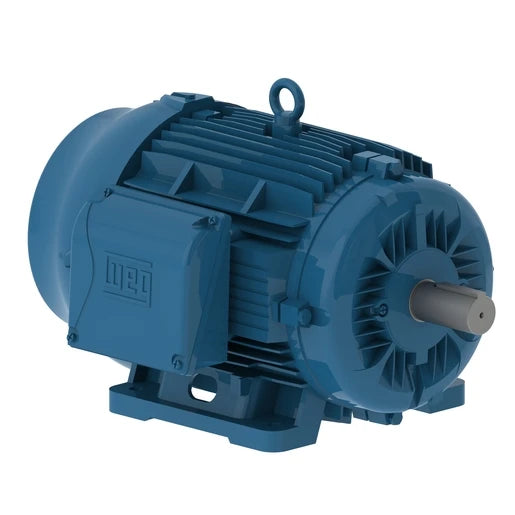

WEG Weg Electric 00309ET3E215T-W22G, 3 Hp, 900 Rpm, 213/5T FR,…

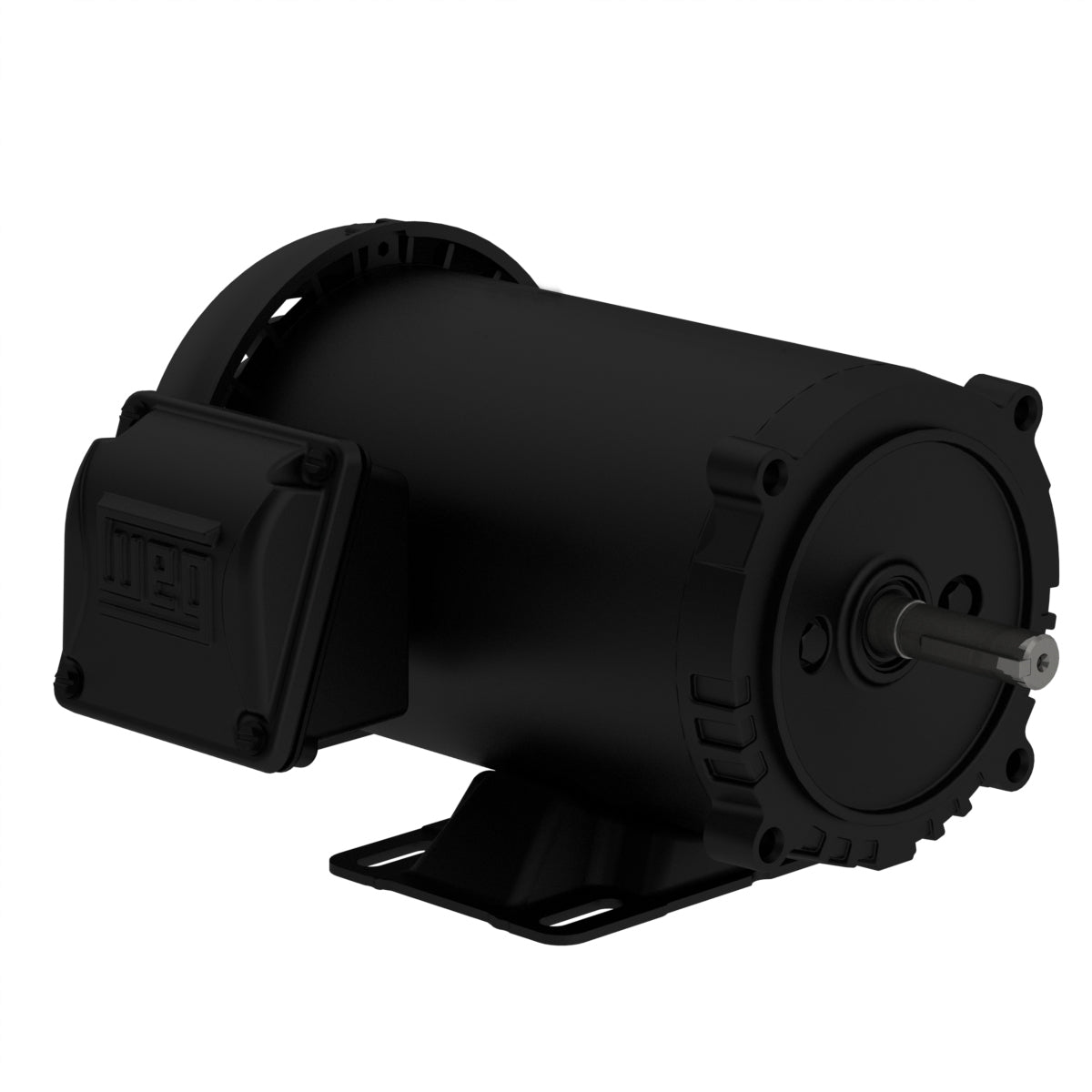

WEG Weg Electric 00236ET3V56C-S, 2 Hp, 3600 Rpm, 56HC FR,…
