WEG 00236ES1E145JM-W22 — Close Coupled Pump Motors
WEG 00236ES1E145JM-W22 WEG Motor, Close Coupled Pump Motor (2 HP, 145JM FRAME, 208-230/460 V, SINGLE PHASE, TEFC , 3520 RPM)
Overview
WEG Motor 00236ES1E145JM-W22, 2 HP, RPM: 3520, FRAME: 145JM, 208-230/460 V, SINGLE PHASE: 60 Hz, : TEFC, Close Coupled Pump Motor Applications Pumps Features Close Coupled Pump Motor, Single Phase, Cast Iron, Standard Efficiency, TEFC Tech Specs Brand WEG Motors Model Number 00236ES1E145JM-W22 HP 2 HP RPM 3520 FRAME 145JM VOLTAGE 208-230/460 V PHASE SINGLE FREQUENCY 60 Hz ENCLOSURE TEFC APPROXIMATE WEIGHT (lb) 55 FEET YES TERMINAL BOX LEFT FLANGE FC-149 RATED CURRENT 10.2-9.80/4.90 A LOCKED ROTOR CURRENT IL IN 8 LOCKED ROTOR CURRENT 78.4/39.2 A LOCKED ROTOR TORQUE 2.2 BREAKDOWN TORQUE 2.3 EFFICIENCY 50 71 EFFICIENCY 75 76 EFFICIENCY 100 79 POWER FACTOR 50 0.71 POWER FACTOR 75 0.81 POWER FACTOR 100 0.86 SERVICE FACTOR 1.15 INERTIA KGM2 0.00233 kgm INERTIA SQ FT 0.05529 sq.ft. LOCKED ROTOR TIME 6 s NOISE LEVEL - ALTITUDE 1000 DUTY CYCLE S1 AMBIENT TEMPERATURE -20C - +40C DEGREE OF PROTECTION IP55 NO-LOAD CURRENT 4.90/2.45 A INSULATION CLASS F FULL LOAD TORQUE NM 3.99 Nm FULL LOAD TORQUE FT 2.94 .ft SLIP 0.0222 DESIGN - TEMPERATURE RISE 80 K BEARINGS D E 6206 ZZ BEARINGS N D E 6203 ZZ REGREASING INTERVAL D E - REGREASING INTERVAL N D E - GREASE AMOUNT D E - GREASE AMOUNT N D E -
Specifications
| Tag | WEG Pump Motors |
|---|---|
| Weight | 55.0 lb |
Product details
| Manufacturer | WEG |
|---|---|
| Manufacturer part number | 00236ES1E145JM-W22 |
| KKM catalog reference | WEG-00236ES1E145JM-W22 |
| Product category | Close Coupled Pump Motors |
| Published specifications | 2 attributes listed |
| Related part numbers | 2 other part numbers in this family |
Request a quote for this part
Email [email protected] or call (825) 454-5367 for pricing and availability.
Frequently Asked Questions
How much does 00236ES1E145JM-W22 cost?
00236ES1E145JM-W22 is listed at CA$1,008.91 (CAD) and can be ordered directly from this page with Add to Cart. That figure is a reference price and can change: your card is authorized at checkout and charged only once our order desk confirms the part, stock, and final price, and we email you first if anything has moved. Larger quantities or custom terms — email [email protected] for a volume quote.
Who manufactures the 00236ES1E145JM-W22?
00236ES1E145JM-W22 is a WEG part. KKM Solutions sources WEG components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
Is 00236ES1E145JM-W22 discontinued, and can I still get one?
KKM Solutions does not publish a manufacturer lifecycle status for 00236ES1E145JM-W22 — check WEG's own product page for whether it is current, superseded, or end-of-life. It does not change what we can do: we source current-production, superseded and long-obsolete parts the same way, and where a part is genuinely unavailable we identify a form-fit-function equivalent. Send the part number through the quote form on this page, or use our obsolete part lookup at https://kkmsolutions.com/tools/obsolete-part-lookup/.
What are the key specifications of 00236ES1E145JM-W22?
Key specifications include Tag: WEG Pump Motors; Weight: 55.0 lb. The full specification table on this page lists every published attribute for this part.
How quickly can 00236ES1E145JM-W22 ship?
In-stock items are dispatched the same business day for orders placed by 11 AM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Variants & Related Part Numbers
Other WEG part numbers in this family:
- 00236ES1E145JP-W22 — WEG 00236ES1E145JP-W22 2HP 1-Phase JP Close-Coupled Pump Motor
- 00236ES1E145T-S — WEG 00236ES1E145T-S 2HP Single Phase TEFC motor is the perfect option for…
Related Products
WEG WEG 00236ET3H145JM-S WEG Close Coupled Pump Motor (2 HP,…

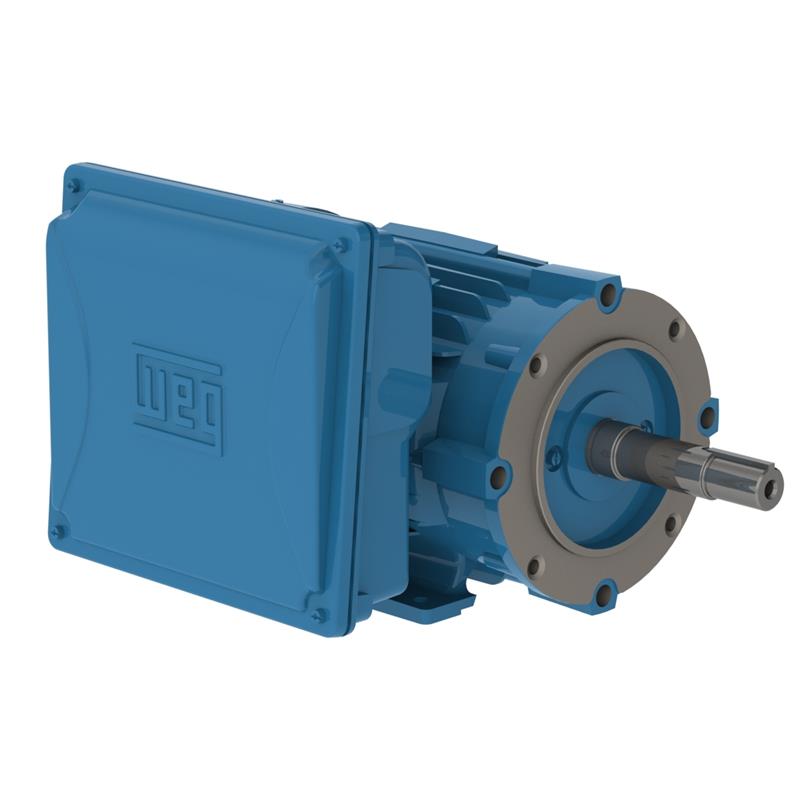

WEG WEG 00336ES1E145JM-W22 WEG Motor, Close Coupled Pump Motor (3…
