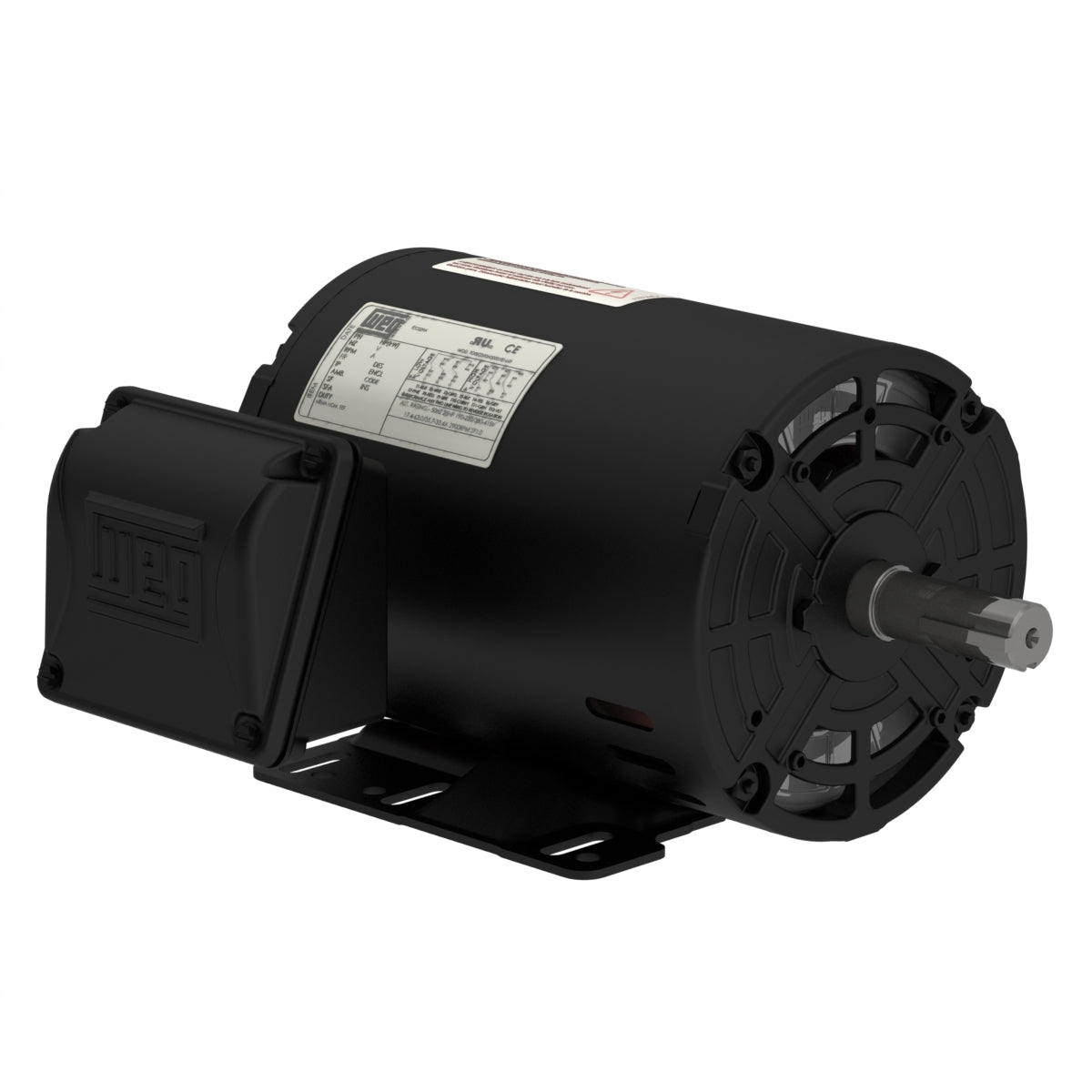

WEG 00218OT3H145T-SG — Motor
Weg Electric 00218OT3H145T-SG, 2 Hp, 1800 Rpm, 143/5T FR, 575 Vac, ODP, 3 PH, Foot-mounted, Rolled Steel.
Overview
00218OT3H145T-SG, 2 Hp, 1800 Rpm, 143/5T FR, 575 Vac, ODP, 3 PH, Foot-mounted, Rolled Steel. Engineering Data W01 is a Rolled Steel motor that is perfect for applications where performance, robustness and light-weight are required in an all-one solution. These motors are supplied with Aegis® bearing protection ring to avoid current flow along the motor shaft, across the bearing and return to the frame thus preventing premature bearing wear and failure due to electric currents flowing through them. Product features Standard NEMA MG-1 Frequency 60 Hz Voltage 575 V Number of poles 4 Synchronous speed 1800 rpm Output rating 2 HP Mounting Foot-mounted Flange Without Mounting F-1 Terminal box¹ Left position Enclosure IC01 - ODP Frame 143/5T Output 2 HP (1.5 kW) Number of Poles 4 Frequency 60 Hz Rated speed 1740 rpm Slip 3.33 % Rated voltage 575 V Rated current 2.15 A L. R. Amperes 16.6 A LRC 7.7x(Code K) No load current 1.10 A Rated torque 6.04 ft.lb Locked rotor torque 260 % Breakdown torque 320 % Locked rotor time 30s (cold) 17s (hot) Moment of inertia (J) 0.1168 sq.ft.lb Design B Insulation Class F Service factor 1.15 Temperature rise 80 K Duty Cycle Cont.(S1) Starting Method Direct On Line Ambient temperature -20°C to +40°C Altitude 1000 m.a.s.l. Enclosure IC01 - ODP Mounting F-1 Rotation¹ Both (CW and CCW) Noise level² 52.0 dB(A)
Specifications
| Tag | WEG Electric |
|---|---|
| Weight | 43.0 lb |
Product details
| Manufacturer | WEG |
|---|---|
| Manufacturer part number | 00218OT3H145T-SG |
| KKM catalog reference | WEG-00218OT3H145T-SG |
| Product category | Motor |
| Published specifications | 2 attributes listed |
| Related part numbers | 4 other part numbers in this family |
Request a quote for this part
Email [email protected] or call (825) 454-5367 for pricing and availability.
Frequently Asked Questions
How much does 00218OT3H145T-SG cost?
00218OT3H145T-SG is listed at CA$828.09 (CAD) and can be ordered directly from this page with Add to Cart. That figure is a reference price and can change: your card is authorized at checkout and charged only once our order desk confirms the part, stock, and final price, and we email you first if anything has moved. Larger quantities or custom terms — email [email protected] for a volume quote.
Who manufactures the 00218OT3H145T-SG?
00218OT3H145T-SG is a WEG part. KKM Solutions sources WEG components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
Is 00218OT3H145T-SG discontinued, and can I still get one?
KKM Solutions does not publish a manufacturer lifecycle status for 00218OT3H145T-SG — check WEG's own product page for whether it is current, superseded, or end-of-life. It does not change what we can do: we source current-production, superseded and long-obsolete parts the same way, and where a part is genuinely unavailable we identify a form-fit-function equivalent. Send the part number through the quote form on this page, or use our obsolete part lookup at https://kkmsolutions.com/tools/obsolete-part-lookup/.
What are the key specifications of 00218OT3H145T-SG?
Key specifications include Tag: WEG Electric; Weight: 43.0 lb. The full specification table on this page lists every published attribute for this part.
How quickly can 00218OT3H145T-SG ship?
In-stock items are dispatched the same business day for orders placed by 11 AM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
