WEG 00218ET3E145TF2-S — Motor
Weg Electric 00218ET3E145TF2-S, 2 Hp, 1800 Rpm, 143/5T Frame, 230/460//190-220/380-415 Vac, TEFC, 3 PH, Foot-mounted, Rolled Steel NEMA Premium Efficiency.
Overview
00218ET3E145TF2-S, 2 Hp, 1800 Rpm, 143/5T Frame, 230/460//190-220/380-415 Vac, TEFC, 3 PH, Foot-mounted, Rolled Steel NEMA Premium Efficiency. Engineering Data W01 is a Rolled Steel motor that is perfect for applications where performance, robustness and light-weight are required in an all-one solution. Product features Standard NEMA MG-1 Frequency 60//50 Hz Voltage 230/460//190-220/380-415 V Number of poles 4 Degree of Protection IP55 Synchronous speed 1800 rpm Output rating 2 HP Mounting Foot-mounted Flange Without Mounting F-2 Terminal box¹ Right position Frame 143/5T Output 2 HP (1.5 kW) Number of Poles 4 Frequency 60 Hz Rated speed 1745 rpm Slip 3.06 % Rated voltage 230/460 V Rated current 5.44/2.72 A L. R. Amperes 44.6/22.3 A LRC 8.2x(Code K) No load current 2.80/1.40 A Rated torque 6.02 ft.lb Locked rotor torque 270 % Breakdown torque 300 % Locked rotor time 27s (cold) 15s (hot) Moment of inertia (J) 0.1296 sq.ft.lb Design B Insulation Class F Temperature rise 80 K Service factor 1.15 (1.00 @ 208V) Duty Cycle Cont.(S1) Starting Method Direct On Line Ambient temperature -20°C to +40°C Altitude 1000 m.a.s.l. Degree of Protection IP55 Enclosure IC411 - TEFC Mounting F-2 Rotation¹ Both (CW and CCW) Noise level² 52.0 dB(A)
Specifications
| Tag | WEG Electric |
|---|---|
| Weight | 43.0 lb |
Product details
| Manufacturer | WEG |
|---|---|
| Manufacturer part number | 00218ET3E145TF2-S |
| KKM catalog reference | WEG-00218ET3E145TF2-S |
| Product category | Motor |
| Published specifications | 2 attributes listed |
| Related part numbers | 14 other part numbers in this family |
Request a quote for this part
Email [email protected] or call (825) 454-5367 for pricing and availability.
Frequently Asked Questions
How much does 00218ET3E145TF2-S cost?
00218ET3E145TF2-S is listed at CA$698.38 (CAD) and can be ordered directly from this page with Add to Cart. That figure is a reference price and can change: your card is authorized at checkout and charged only once our order desk confirms the part, stock, and final price, and we email you first if anything has moved. Larger quantities or custom terms — email [email protected] for a volume quote.
Who manufactures the 00218ET3E145TF2-S?
00218ET3E145TF2-S is a WEG part. KKM Solutions sources WEG components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
Is 00218ET3E145TF2-S discontinued, and can I still get one?
KKM Solutions does not publish a manufacturer lifecycle status for 00218ET3E145TF2-S — check WEG's own product page for whether it is current, superseded, or end-of-life. It does not change what we can do: we source current-production, superseded and long-obsolete parts the same way, and where a part is genuinely unavailable we identify a form-fit-function equivalent. Send the part number through the quote form on this page, or use our obsolete part lookup at https://kkmsolutions.com/tools/obsolete-part-lookup/.
What are the key specifications of 00218ET3E145TF2-S?
Key specifications include Tag: WEG Electric; Weight: 43.0 lb. The full specification table on this page lists every published attribute for this part.
How quickly can 00218ET3E145TF2-S ship?
In-stock items are dispatched the same business day for orders placed by 11 AM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Variants & Related Part Numbers
Other WEG part numbers in this family:
- 00218ET3E145HP — Weg 00218ET3E145HP NEMA Premium TEFC three-phase motor, 2HP 1800RPM 208-230/460V 60Hz, 145HP…
- 00218ET3E145JM-SG — WEG 00218ET3E145JM-SG 2HP Three Phase TEFC AEGIS Shaft Grounding Ring SGR JM…
- 00218ET3E145JP-S — WEG 00218ET3E145JP-S 2HP Three Phase JP Pump Motor
- 00218ET3E145JP-SG — WEG 00218ET3E145JP-SG 2HP Three Phase TEFC AEGIS Shaft Grounding Ring SGR JP…
- 00218ET3E145JP-W22 — WEG 00218ET3E145JP-W22 2HP Three Phase JP Pump Motor
- 00218ET3E145T-S — WEG 00218ET3E145T-S 2HP Three Phase General Purpose Motor is the perfect option…
- 00218ET3E145T-SG — WEG 00218ET3E145T-SG 2HP Three Phase AEGIS Shaft Grounding Ring Rolled Steel Motor
- 00218ET3E145T-W22 — WEG 00218ET3E145T-W22 2HP Three Phase General Purpose Cast Iron W22 motors are…
- 00218ET3E145T-W22G — Weg 00218ET3E145T-W22G NEMA Premium efficiency three-phase motor, 2HP, 1800 RPM, 145T cast…
- 00218ET3E145TC-S — WEG 00218ET3E145TC-S 2HP Three Phase General Purpose Rolled Steel Motor is the…
- 00218ET3E145TC-S-FS — WEG 00218ET3E145TC-S New
- 00218ET3E145TC-W22 — WEG 00218ET3E145TC-W22 2HP Three Phase General Purpose Cast Iron Motor, the W22…
- 00218ET3E145TC-W22G — Weg Electric 00218ET3E145TC-W22G, 2 Hp, 1200 Rpm, 143/5TC FR, 230/460//380 Vac, TEFC,…
- 00218ET3E145TF2-W22 — Weg 00218ET3E145TF2-W22 2HP 1800 RPM three-phase TEFC motor with 145T NEMA frame…
Related Products

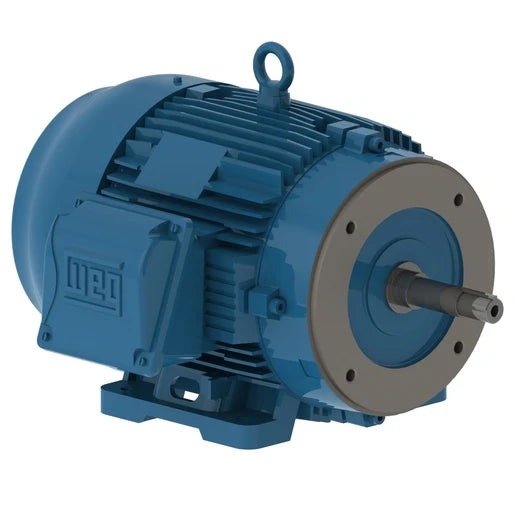

WEG Weg Electric 00218ET3E145TC-W22G, 2 Hp, 1200 Rpm, 143/5TC FR,…
WEG Weg Electric 00218ET3EBMQ145T-W22, 20 Hp, 900 Rpm, 284/6T Frame,…

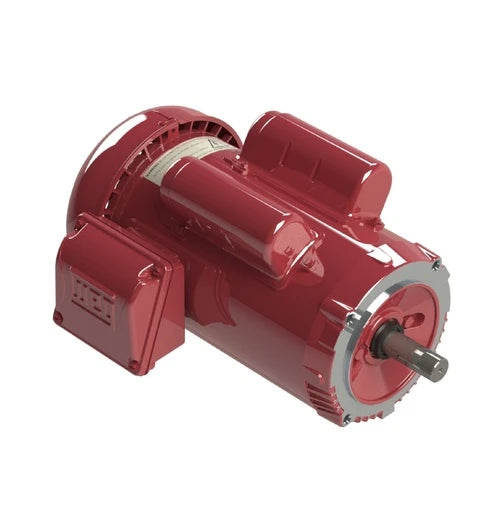

WEG Weg Electric 00218ES1RFDR145TC-S, 2 HP, 143/5TC FR, 1Ph, 115/230…
