WEG 00158OT3P145T-S — General Purpose Motors

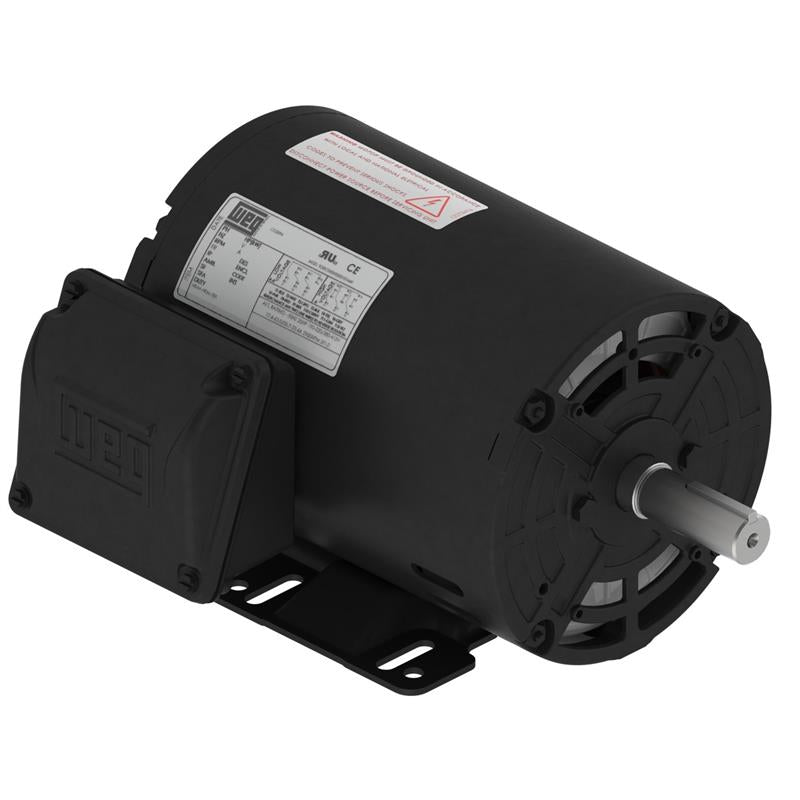

WEG 00158OT3P145T-S WEG Motor (1.5 HP, 1800 RPM, 3 Phase, 60 Hz, 143/5T Frame, ODP, 200 V, Foot-Mount)
Overview
WEG 00158OT3P145T-S, 1.5 HP, 1800 RPM, 3 Phase, 60 Hz, 143/5T Frame, ODP, 200 V, Foot-Mount Applications WEG Open Drip Proof (ODP) motor is a general purpose line designed for environments where dirt and moisture are minimal. The ODP cast iron frame is designed to provide maximum ventilation and heat dissipation, offering lowvibration levels, high mechanical stiffness and durability. Widely used in applications such as compressors, pumps and chillers, the ODP motor line meets or exceeds the efficiency levels determined by International Standardsand the minimum efficiency level programs in worldwide. Features Rated Output: 0.25 to 25 HP Number of Poles: 2 through 6 Class F insulation Frame Sizes: NEMA 56 to 254/6T Efficiency levels: NEMA Premium Frequency: 60 Hz (dual rated 50 Hz 190-220/380-415V) IP21 standard F1 mount as standard Foot mount / C-face / Footless availability Enclosure: ODP Aluminum endshields Specifications Brand WEG Catalog Number 00158OT3P145T-S Type General Purpose Motor HP 1.5 RPM 1800 Phase 3 Frequency 60 Hz Frame 143/5T Enclosure ODP Voltage 200 Mounting Foot-Mount Full Load Amps 4.8 Full Load Efficiency 86.5 Frame Material Rolled Steel Service Factor 1.15 "C" Dimensions 12.362 Warranty 1 Year Support Documents (pdf) Features
Specifications
| Tag | WEG Motors |
|---|---|
| Weight | 50.0 lb |
Product details
| Manufacturer | WEG |
|---|---|
| Manufacturer part number | 00158OT3P145T-S |
| KKM catalog reference | WEG-00158OT3P145T-S |
| Product category | General Purpose Motors |
| Published specifications | 2 attributes listed |
| Related part numbers | 1 other part number in this family |
Request a quote for this part
Email [email protected] or call (825) 454-5367 for pricing and availability.
Frequently Asked Questions
How much does 00158OT3P145T-S cost?
00158OT3P145T-S is listed at CA$588.31 (CAD) and can be ordered directly from this page with Add to Cart. That figure is a reference price and can change: your card is authorized at checkout and charged only once our order desk confirms the part, stock, and final price, and we email you first if anything has moved. Larger quantities or custom terms — email [email protected] for a volume quote.
Who manufactures the 00158OT3P145T-S?
00158OT3P145T-S is a WEG part. KKM Solutions sources WEG components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
Is 00158OT3P145T-S discontinued, and can I still get one?
KKM Solutions does not publish a manufacturer lifecycle status for 00158OT3P145T-S — check WEG's own product page for whether it is current, superseded, or end-of-life. It does not change what we can do: we source current-production, superseded and long-obsolete parts the same way, and where a part is genuinely unavailable we identify a form-fit-function equivalent. Send the part number through the quote form on this page, or use our obsolete part lookup at https://kkmsolutions.com/tools/obsolete-part-lookup/.
What are the key specifications of 00158OT3P145T-S?
Key specifications include Tag: WEG Motors; Weight: 50.0 lb. The full specification table on this page lists every published attribute for this part.
How quickly can 00158OT3P145T-S ship?
In-stock items are dispatched the same business day for orders placed by 11 AM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Variants & Related Part Numbers
Other WEG part numbers in this family:
- 00158OT3P145TC-S — Weg 00158OT3P145TC-S 1.5HP 1800RPM NEMA Premium ODP three-phase motor with 145TC C-face…
Related Products
WEG WEG 00212ET3H184T-S WEG Motor (2 HP, 1200 RPM, 3…
WEG WEG 00158ET3H145TC-S WEG Motor (1.5 HP, 1800 RPM, 3…
WEG WEG 00212OT3H184T-S WEG Motor (2 HP, 1200 RPM, 3…

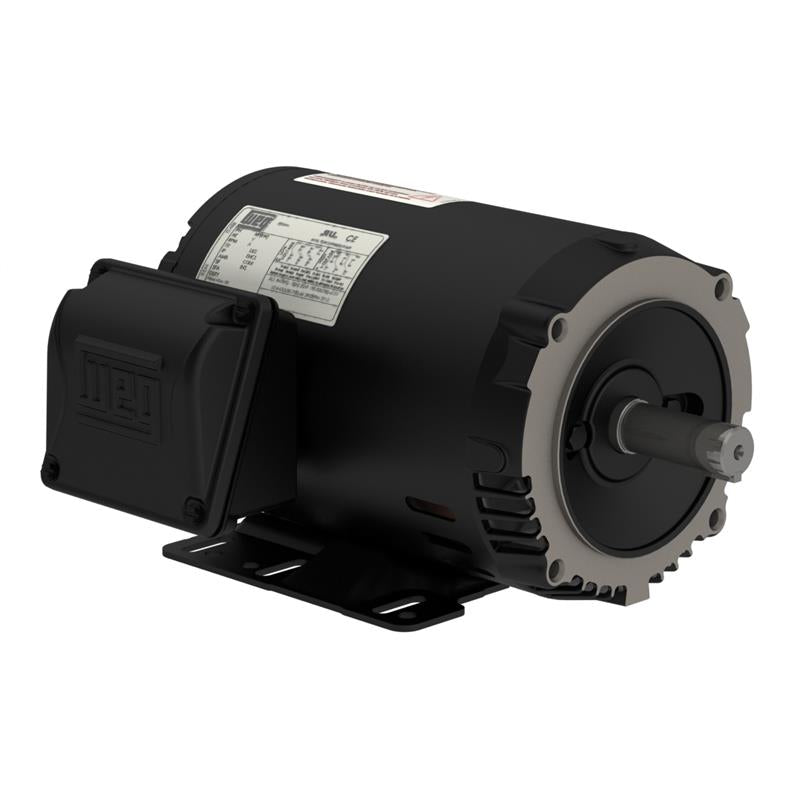

WEG WEG 00156OT3H143TC-S WEG Motor (1.5 HP, 3600 RPM, 3…
