WEG 00158ET3HAL90L-W22 — Tru Metric Motors
WEG 00158ET3HAL90L-W22 WEG Motor (2 HP, 1800 RPM, 3 Phase, 90S/L Frame, TEFC Enclosure, 575 Voltage)
Overview
WEG 00158ET3HAL90L-W22, 2 HP, 1.5 KW, 1800 RPM, 3 Phase, 90S/L Frame, TEFC Enclosure, 575 Voltage Applications This line is designed and built according to European IEC34 and IEC79 standards. Features 60 Hz (1.15 service factor) and 50 Hz (1.0 service factor) Class F insulation (Impregnation Resin and Magnet wire are class H) F2 mounted as standard (F1 convertible) Stainless Steel Nameplate - Laser etched with High contrast background Regreasable ball bearings (Frames 160 and up) Gasketed conduit box Suitable for WYE/Delta Start (W and Y voltage code motors) Specifications Brand WEG Catalog Number 00158ET3HAL90L-W22 Type IEC Tru-Metric Motor HP 2 KW 1.5 RPM 1800 Phase 3 C Dimension 12.953 Service Factor 1.25 Frame 90S/L Enclosure TEFC Full Load Amps 2.23 Mount Foot Mount Voltage 575 Warranty 1 Year Support Documents (pdf) Features
Specifications
| Tag | WEG Motors |
|---|---|
| Weight | 52.0 lb |
Product details
| Manufacturer | WEG |
|---|---|
| Manufacturer part number | 00158ET3HAL90L-W22 |
| KKM catalog reference | WEG-00158ET3HAL90L-W22 |
| Product category | Tru Metric Motors |
| Published specifications | 2 attributes listed |
| Related part numbers | 1 other part number in this family |
Request a quote for this part
Email [email protected] or call (825) 454-5367 for pricing and availability.
Frequently Asked Questions
How much does 00158ET3HAL90L-W22 cost?
00158ET3HAL90L-W22 is listed at CA$686.58 (CAD) and can be ordered directly from this page with Add to Cart. That figure is a reference price and can change: your card is authorized at checkout and charged only once our order desk confirms the part, stock, and final price, and we email you first if anything has moved. Larger quantities or custom terms — email [email protected] for a volume quote.
Who manufactures the 00158ET3HAL90L-W22?
00158ET3HAL90L-W22 is a WEG part. KKM Solutions sources WEG components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
Is 00158ET3HAL90L-W22 discontinued, and can I still get one?
KKM Solutions does not publish a manufacturer lifecycle status for 00158ET3HAL90L-W22 — check WEG's own product page for whether it is current, superseded, or end-of-life. It does not change what we can do: we source current-production, superseded and long-obsolete parts the same way, and where a part is genuinely unavailable we identify a form-fit-function equivalent. Send the part number through the quote form on this page, or use our obsolete part lookup at https://kkmsolutions.com/tools/obsolete-part-lookup/.
What are the key specifications of 00158ET3HAL90L-W22?
Key specifications include Tag: WEG Motors; Weight: 52.0 lb. The full specification table on this page lists every published attribute for this part.
How quickly can 00158ET3HAL90L-W22 ship?
In-stock items are dispatched the same business day for orders placed by 11 AM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Variants & Related Part Numbers
Other WEG part numbers in this family:
- 00158ET3HAL90L — Weg 00158ET3HAL90L NEMA Premium TEFC three-phase motor, 1.5HP, 1800RPM, 575V, 60Hz, IEC…
Related Products
WEG WEG .5509EP3EAL90-W22L WEG Motor, IEC Tru-Metric Motor (0.75 HP,…
WEG WEG 00318ET3HAL100L-W22 WEG Motor (4 HP, 1800 RPM, 3…
WEG WEG 00518ET3HAL132S-W22 WEG Motor (7.5 HP, 1800 RPM, 3…

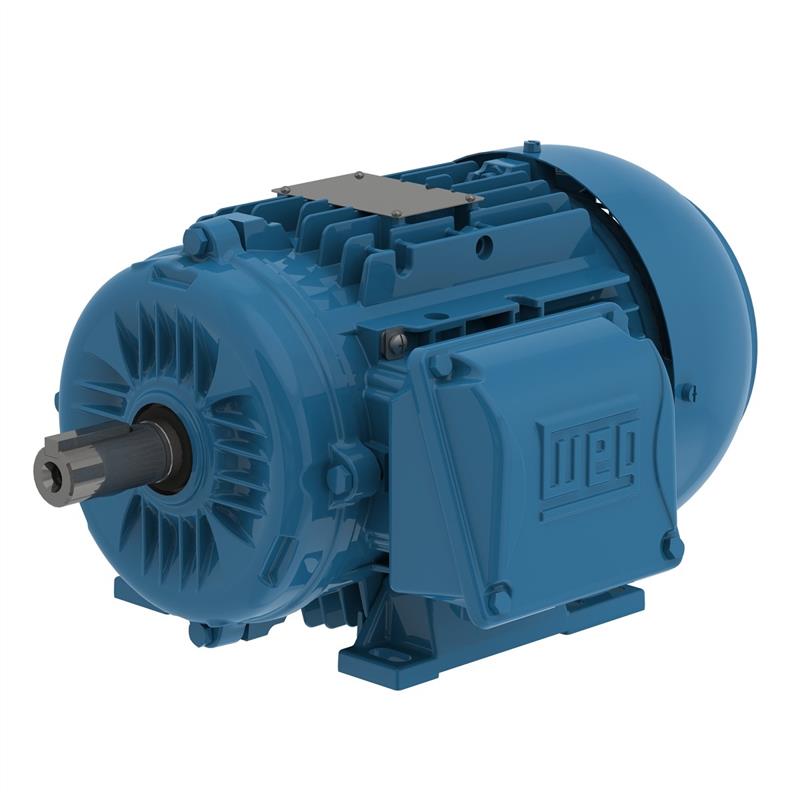

WEG WEG 00718ET3EAL132M-W22 WEG Motor (10 HP, 1800//1500 RPM, 3…
