WEG 00156ET3E143TC-W22G — Motor
Weg Electric 00156ET3E143TC-W22G, 1 1/2 Hp, 3600 Rpm, 143/5TC FR, 230/460//380 Vac, TEFC, 3 PH, Foot-mounted, NEMA Premium Efficiency, 18909047
Overview
Weg Electric 00156ET3E143TC-W22G, 1 1/2 Hp, 3600 Rpm, 143/5TC FR, 230/460//380 Vac, TEFC, 3 PH, Foot-mounted, NEMA Premium Efficiency, 18909047 SPECIFICATIONS Manufacturer Part Number 00156ET3E143TC-W22G Motor ApplicationGeneral Purpose Phase Three Motor Design Three-Phase HP 1-1/2 Nameplate RPM3600 rpm No. of Speeds 1 Voltage230/460V AC Full Load Amps3.92/1.96 A Frame 143TC Usable @ 208V Yes Usable @ 200V No Hz60 Hz Motor Service Factor 1.25 Max. Ambient Temp.40 °C Motor Thermal Protection None Duty Cycle Continuous Ins. Class F NEMA Design B Motor Enclosure DesignTotally Enclosed Fan Cooled Motor Shaft Rotation CW/CCW Motor Mounting TypeC-Face; Rigid Base Motor Mounting PositionAll Angle Inverter Rated Yes Motor Shaft Design Keyed Motor Frame MaterialCast Iron Shaft Dia.7/8 in Shaft Length2-1/4 in Motor Bearings Ball Length Less Shaft11-1/8 in Overall Length13-3/8 in Weight47 lb
Specifications
| Tag | WEG Electric |
|---|---|
| Weight | 47.0 lb |
Product details
| Manufacturer | WEG |
|---|---|
| Manufacturer part number | 00156ET3E143TC-W22G |
| KKM catalog reference | WEG-00156ET3E143TC-W22G |
| Product category | Motor |
| Published specifications | 2 attributes listed |
| Related part numbers | 13 other part numbers in this family |
Request a quote for this part
Email [email protected] or call (825) 454-5367 for pricing and availability.
Frequently Asked Questions
How much does 00156ET3E143TC-W22G cost?
00156ET3E143TC-W22G is listed at CA$931.61 (CAD) and can be ordered directly from this page with Add to Cart. That figure is a reference price and can change: your card is authorized at checkout and charged only once our order desk confirms the part, stock, and final price, and we email you first if anything has moved. Larger quantities or custom terms — email [email protected] for a volume quote.
Who manufactures the 00156ET3E143TC-W22G?
00156ET3E143TC-W22G is a WEG part. KKM Solutions sources WEG components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
Is 00156ET3E143TC-W22G discontinued, and can I still get one?
KKM Solutions does not publish a manufacturer lifecycle status for 00156ET3E143TC-W22G — check WEG's own product page for whether it is current, superseded, or end-of-life. It does not change what we can do: we source current-production, superseded and long-obsolete parts the same way, and where a part is genuinely unavailable we identify a form-fit-function equivalent. Send the part number through the quote form on this page, or use our obsolete part lookup at https://kkmsolutions.com/tools/obsolete-part-lookup/.
What are the key specifications of 00156ET3E143TC-W22G?
Key specifications include Tag: WEG Electric; Weight: 47.0 lb. The full specification table on this page lists every published attribute for this part.
How quickly can 00156ET3E143TC-W22G ship?
In-stock items are dispatched the same business day for orders placed by 11 AM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Variants & Related Part Numbers
Other WEG part numbers in this family:
- 00156ET3E143HP-W22 — Weg 00156ET3E143HP-W22 1.5HP 3600RPM three-phase TEFC motor with 143HP frame, 230/460V, NEMA…
- 00156ET3E143JM-SG — WEG 00156ET3E143JM-SG 1.5HP Three Phase TEFC AEGIS Shaft Grounding Ring SGR JM…
- 00156ET3E143JM-W22 — WEG 00156ET3E143JM-W22 1.5HP Three Phase JM Pump Motor
- 00156ET3E143JP-S — WEG 00156ET3E143JP-S 1.5HP Three Phase JP Pump Motor
- 00156ET3E143JP-SG — WEG 00156ET3E143JP-SG 1.5HP Three Phase TEFC AEGIS Shaft Grounding Ring SGR JP…
- 00156ET3E143JP-W22 — WEG 00156ET3E143JP-W22 1.5HP Three Phase JP Pump Motor
- 00156ET3E143T-S — WEG 00156ET3E143T-S 1.5HP Three Phase General Purpose Motor is the perfect option…
- 00156ET3E143T-SG — WEG 00156ET3E143T-SG 1.5HP Three Phase AEGIS Shaft Grounding Ring Rolled Steel Motor
- 00156ET3E143T-W22 — WEG 00156ET3E143T-W22 1.5HP Three Phase General Purpose Cast Iron W22 motors are…
- 00156ET3E143T-W22G — Weg Electric 00156ET3E143T-W22G, 1 1/2 Hp, 3600 Rpm, 143/5T FR, 230/460//380 Vac,…
- 00156ET3E143T-W22S — Weg 00156ET3E143T-W22S 1.5HP 3600RPM 143T frame TEFC three-phase motor, 208-230/460V 60Hz. NEMA…
- 00156ET3E143TC-S — WEG 00156ET3E143TC-S 1.5HP Three Phase General Purpose Rolled Steel Motor is the…
- 00156ET3E143TC-W22 — WEG 00156ET3E143TC-W22 1.5HP Three Phase General Purpose Cast Iron Motor, the W22…
Related Products
WEG Weg Electric 00156ET3E143T-W22G, 1 1/2 Hp, 3600 Rpm, 143/5T…

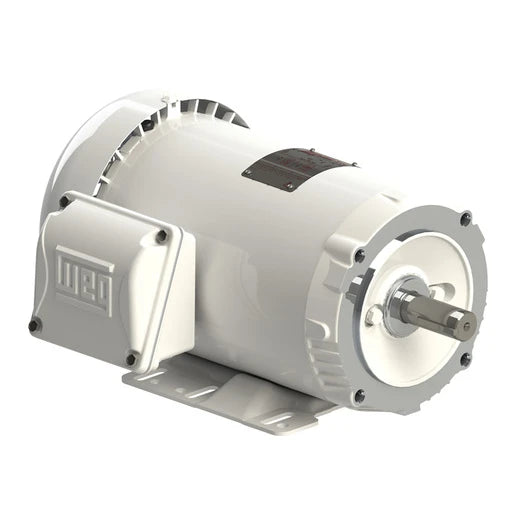

WEG Weg Electric, 00156ET3EHW143JM-S, 1.5 HP, 143/5JM FR, 3Ph, 230/460//190-220/380-415…
WEG Weg Electric 00152ET3V182T-W22, 1.5 Hp, 182/4T Frame, 1200 RPM,…

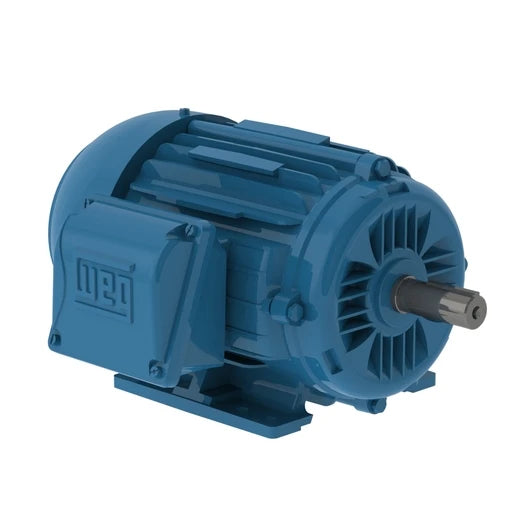

WEG Weg Electric 00156ET3ELL143T-W22G, 1 1/2 Hp, 3600 Rpm, 143/5T…
