WEG 00118OT3H143JM-SG — Motor
Weg Electric 00118OT3H143JM-SG, 1 Hp, 1800 Rpm, 143/5JM FR, 575 Vac, 3 PH, ODP, Foot-mounted, Rolled Steel.
Overview
00118OT3H143JM-SG, 1 Hp, 1800 Rpm, 143/5JM FR, 575 Vac, 3 PH, ODP, Foot-mounted, Rolled Steel. Engineering Data Standard NEMA MG-1 Frequency 60 Hz Voltage 575 V Number of poles 4 Synchronous speed 1800 rpm Output rating 1 HP Mounting Foot-mounted Flange C Mounting F-1 Terminal box¹ Left position Enclosure IC01 - ODP Frame 143/5JM Output 1 HP (0.75 kW) Number of Poles 4 Frequency 60 Hz Rated speed 1760 rpm Slip 2.22 % Rated voltage 575 V Rated current 1.21 A L. R. Amperes 9.66 A LRC 8.0x(Code L) No load current 0.766 A Rated torque 2.98 ft.lb Locked rotor torque 290 % Breakdown torque 360 % Locked rotor time 39s (cold) 22s (hot) Moment of inertia (J) 0.1101 sq.ft.lb Design B Insulation Class F Service factor 1.15 Temperature rise 80 K Duty Cycle Cont.(S1) Starting Method Direct On Line Ambient temperature -20°C to +40°C Altitude 1000 m.a.s.l. Enclosure IC01 - ODP Mounting F-1 Rotation¹ Both (CW and CCW) Noise level² 52.0 dB(A)
Specifications
| Tag | WEG Electric |
|---|---|
| Weight | 36.0 lb |
Product details
| Manufacturer | WEG |
|---|---|
| Manufacturer part number | 00118OT3H143JM-SG |
| KKM catalog reference | WEG-00118OT3H143JM-SG |
| Product category | Motor |
| Published specifications | 2 attributes listed |
| Related part numbers | 4 other part numbers in this family |
Request a quote for this part
Email [email protected] or call (825) 454-5367 for pricing and availability.
Frequently Asked Questions
How much does 00118OT3H143JM-SG cost?
00118OT3H143JM-SG is listed at CA$820.24 (CAD) and can be ordered directly from this page with Add to Cart. That figure is a reference price and can change: your card is authorized at checkout and charged only once our order desk confirms the part, stock, and final price, and we email you first if anything has moved. Larger quantities or custom terms — email [email protected] for a volume quote.
Who manufactures the 00118OT3H143JM-SG?
00118OT3H143JM-SG is a WEG part. KKM Solutions sources WEG components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
Is 00118OT3H143JM-SG discontinued, and can I still get one?
KKM Solutions does not publish a manufacturer lifecycle status for 00118OT3H143JM-SG — check WEG's own product page for whether it is current, superseded, or end-of-life. It does not change what we can do: we source current-production, superseded and long-obsolete parts the same way, and where a part is genuinely unavailable we identify a form-fit-function equivalent. Send the part number through the quote form on this page, or use our obsolete part lookup at https://kkmsolutions.com/tools/obsolete-part-lookup/.
What are the key specifications of 00118OT3H143JM-SG?
Key specifications include Tag: WEG Electric; Weight: 36.0 lb. The full specification table on this page lists every published attribute for this part.
How quickly can 00118OT3H143JM-SG ship?
In-stock items are dispatched the same business day for orders placed by 11 AM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Variants & Related Part Numbers
Other WEG part numbers in this family:
- 00118OT3H143JM-S — Weg 00118OT3H143JM-S NEMA Premium efficiency three-phase motor, 1HP 1800RPM, 575V 60Hz, 143JM…
- 00118OT3H143T-S — Weg 00118OT3H143T-S 1HP 1800RPM three-phase NEMA Premium efficiency motor with Open Drip…
- 00118OT3H143T-SG — Weg Electric 00118OT3H143T-SG, 1 Hp, 1800 Rpm, 143/5T FR, 575 Vac, 3…
- 00118OT3H143TC-S — Weg 00118OT3H143TC-S NEMA Premium efficiency three-phase open drip-proof motor, 1 HP, 1800…
Related Products
WEG Weg Electric 00118OT3E143T-SGH, 1 Hp, 1800 Rpm, 143/5T Frame,…
WEG Weg Electric 00118OT3H143T-SG, 1 Hp, 1800 Rpm, 143/5T FR,…
WEG Weg Electric 00118OS1BRBFBW56-S, 1 Hp, 1800 Rpm, 56 FR,…

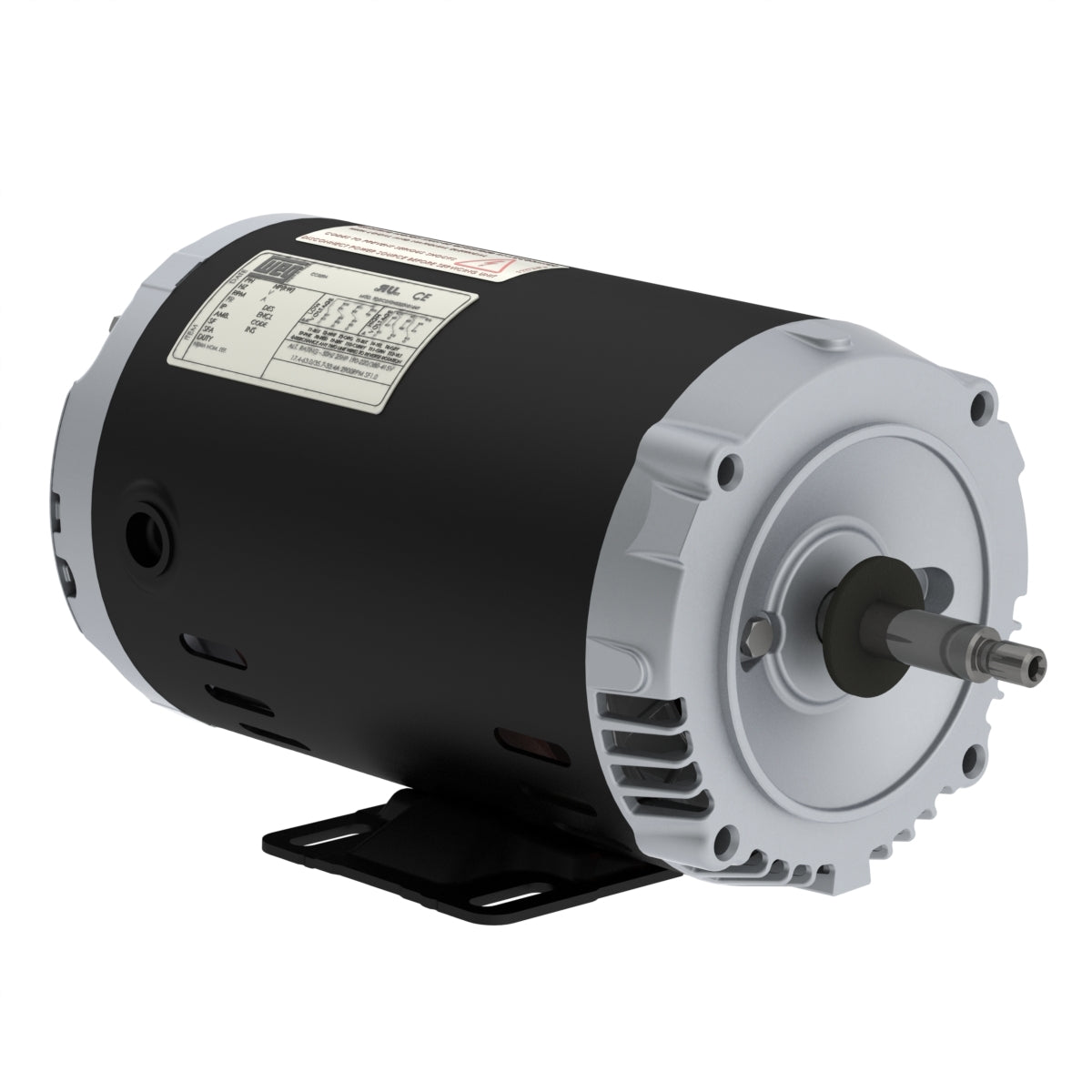

WEG Weg Electric 00118OT3J56-S, 1 Hp, 1800 Rpm, 56 FR,…
