WAGO 257-501 — PCB Interconnect
Stackable PCB terminal block; push-button; 2.5 mm²; Pin spacing 7.5/7.62 mm; 1-pole; CAGE CLAMP®; commoning option; gray
PCB terminal block, 257 Series, push-button Connecting conductors is quick and easy with this PCB terminal block (item number 257-501). It is a universal connector that can be used almost anywhere, for example, as a pluggable PCB connector, panel feedthrough header, connector for rail-mount terminal blocks, or a floating connector for different mounting methods. Ensure that the strip lengths are between 5 and 6 mm when connecting conductors to this PCB terminal block. Featuring one conductor terminal along with CAGE CLAMP®, this product outperforms the competition. Our CAGE CLAMP® connection provides a dependable and maintenance-free way to connect all types of conductors. You do not need to prepare the conductor in any way, such as crimping ferrules. The dimensions are (10.3 x 24.4 x 14.2) mm (width x height x depth). This PCB terminal block is suitable for conductor cross sections ranging from 0.08 mm² to 2.5 mm². The contact surface is coated with tin. This PCB terminal block is operated with a push-button. The PCB terminal block is designed for THT soldering. Insert the conductor at a 0° angle..
| Size | 7.62 mm |
|---|
Request a quote for this part
Email [email protected] or call (825) 454-5367 for pricing and availability.
Frequently Asked Questions
How do I get pricing for 257-501?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email [email protected], and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the 257-501?
257-501 is a WAGO part. KKM Solutions sources WAGO components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
Is 257-501 discontinued, and can I still get one?
KKM Solutions does not publish a manufacturer lifecycle status for 257-501 — check WAGO's own product page for whether it is current, superseded, or end-of-life. It does not change what we can do: we source current-production, superseded and long-obsolete parts the same way, and where a part is genuinely unavailable we identify a form-fit-function equivalent. Send the part number through the quote form on this page, or use our obsolete part lookup at https://kkmsolutions.com/tools/obsolete-part-lookup/.
How quickly can 257-501 ship?
In-stock items are dispatched the same business day for orders placed by 11 AM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Variants & Related Part Numbers
Other WAGO part numbers in this family:

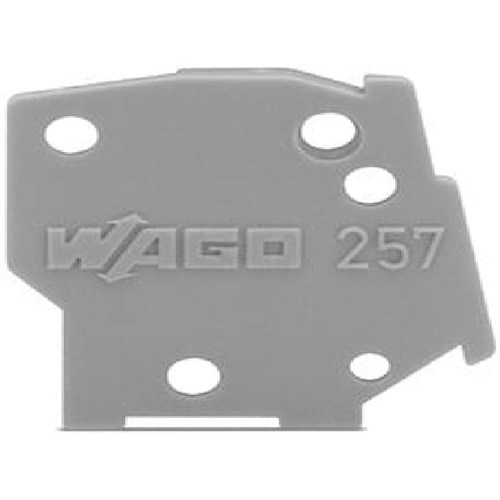

- 257-500 — WAGO - 257-500 - End plate
- 257-502 — WAGO - 257-502 - PCB terminal block
- 257-503 — WAGO - 257-503 - PCB terminal block
- 257-504 — WAGO - 257-504 - PCB terminal block
- 257-505 — WAGO - 257-505 - PCB terminal block
- 257-506 — WAGO - 257-506 - PCB terminal block
- 257-507 — WAGO - 257-507 - PCB terminal block
Related Products
WAGO WAGO - 257-500 - End plate
WAGO WAGO - 257-502 - PCB terminal block
WAGO WAGO - 257-504 - PCB terminal block

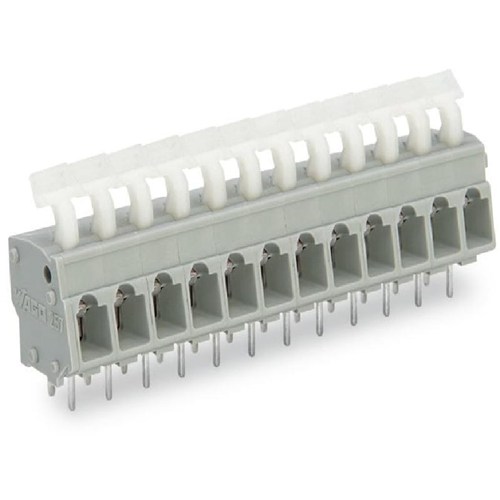

WAGO WAGO - 257-459 - PCB terminal block
