WAGO 2203-7641 Multilevel Installation Terminal Block 2.5 mm² 24 A 3-Level Gray
WAGO 2203-7641 — 2203 DIN rail terminal block: approvals CCA and KEMA/KEUR (DEKRA Certification B.V.), EN 60947, fine-stranded conductor 0.25-4 mm² / 22-12 AWG, DIN-35 rail; Wiring direction: Front-entry mounting.
The WAGO 2203-7641 is a DIN rail terminal block from the 2203 range. It is supplied as a multilevel installation terminal block. Published specifications for this part number include rated 24 A; Max current at cross-section: 29 A, DIN-35 rail; Wiring direction: Front-entry mounting, width 5.2 mm / 0.205 in; Height: 95.6 mm / 3.764 in; Depth: 46.6 mm / 1.835 in, approvals CCA and KEMA/KEUR (DEKRA Certification B.V.), EN 60947, fine-stranded conductor 0.25-4 mm² / 22-12 AWG. Further catalogue data covers connection technology, fine-stranded with insulated ferrule, housing material, nominal cross-section, nominal voltage (potential-ground), nominal voltage (potential-potential), number of levels, overvoltage category. KKM Solutions sources WAGO components to order. Request a quote from KKM Solutions for current pricing, lead time and availability.
| Approvals | CCA and KEMA/KEUR (DEKRA Certification B.V.), EN 60947 |
|---|---|
| Connection technology | Push-in CAGE CLAMP; Actuation: Push-button |
| Fine-stranded conductor | 0.25-4 mm² / 22-12 AWG |
| Fine-stranded with insulated ferrule | 0.25-2.5 mm² / 22-14 AWG |
| Housing material | Polyamide (PA66); Flammability: UL94 V0; Color: Gray |
| Mounting | DIN-35 rail; Wiring direction: Front-entry |
| Nominal Cross Section | 2.5 mm² |
| Nominal voltage (potential-ground) | 250 V; Impulse withstand: 4 kV |
| Nominal voltage (potential-potential) | 400 V; Impulse withstand: 6 kV |
| Number of levels | 3; Clamping units: 4; Total potentials: 3 |
| Overvoltage category | III; Pollution degree: 3; Standard: IEC/EN 60947-7-1 |
| Potential marking | NT/L/PE |
| Rated current | 24 A; Max current at cross-section: 29 A |
| ROHS | Compliant, no exemption |
| Series | 2203 |
| Solid conductor | 0.25-4 mm² / 22-12 AWG |
| Source stock status | In stock at source |
| Strip length | 10-12 mm / 0.39-0.47 in |
| Type | Multilevel installation terminal block |
| Width | 5.2 mm / 0.205 in; Height: 95.6 mm / 3.764 in; Depth: 46.6 mm / 1.835 in mm |
Request a quote for this part
Email [email protected] or call (825) 454-5367 for pricing and availability.
Frequently Asked Questions
How much does 2203-7641 cost?
2203-7641 is listed at CA$2.36 (CAD) and can be ordered directly from this page with Add to Cart. That figure is a reference price and can change: your card is authorized at checkout and charged only once our order desk confirms the part and final price, and we email you first if anything has moved. Larger quantities or custom terms — email [email protected] for a volume quote.
Who manufactures the 2203-7641?
2203-7641 is a WAGO part. KKM Solutions sources WAGO components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
Is 2203-7641 discontinued, and can I still get one?
KKM Solutions does not publish a manufacturer lifecycle status for 2203-7641 — check WAGO's own product page for whether it is current, superseded, or end-of-life. It does not change what we can do: we source current-production, superseded and long-obsolete parts the same way, and where a part is genuinely unavailable we identify a form-fit-function equivalent. Send the part number through the quote form on this page, or use our obsolete part lookup at https://kkmsolutions.com/tools/obsolete-part-lookup/.
What are the key specifications of 2203-7641?
Key specifications include Approvals: CCA and KEMA/KEUR (DEKRA Certification B.V.), EN 60947; Connection technology: Push-in CAGE CLAMP; Actuation: Push-button; Fine-stranded conductor: 0.25-4 mm² / 22-12 AWG; Fine-stranded with insulated ferrule: 0.25-2.5 mm² / 22-14 AWG. The full specification table on this page lists every published attribute for this part.
How quickly can 2203-7641 ship?
In-stock items are dispatched the same business day for orders placed by 11 AM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Variants & Related Part Numbers
Other WAGO part numbers in this family:
Related Products
WAGO WAGO 2202-1611/1000-541 2-Conductor Fuse Terminal Block 2.5mm² LED 6.3A
WAGO WAGO 2203-7642 Multilevel Installation Terminal Block 2.5mm² 24A L/L…
WAGO WAGO 2203-7646 Multilevel Installation Terminal Block N/L/PE 2.5mm² 24A

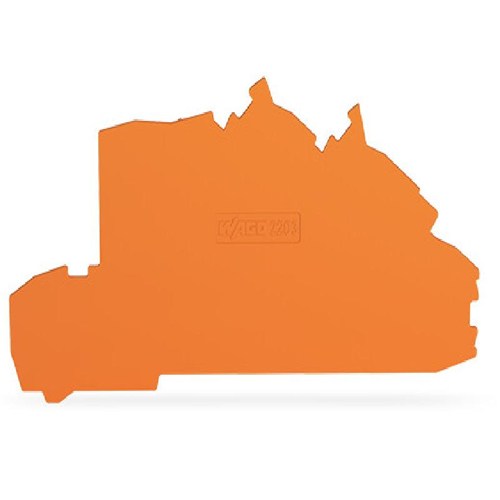

WAGO WAGO - 2203-7692 - End and intermediate plate
