H8163-0800-3-3 Veris Panel Meters

Part number H8163-0800-3-3 from Veris, listed in Panel Meters. KKM Solutions quotes this part with pricing and availability confirmed per order.

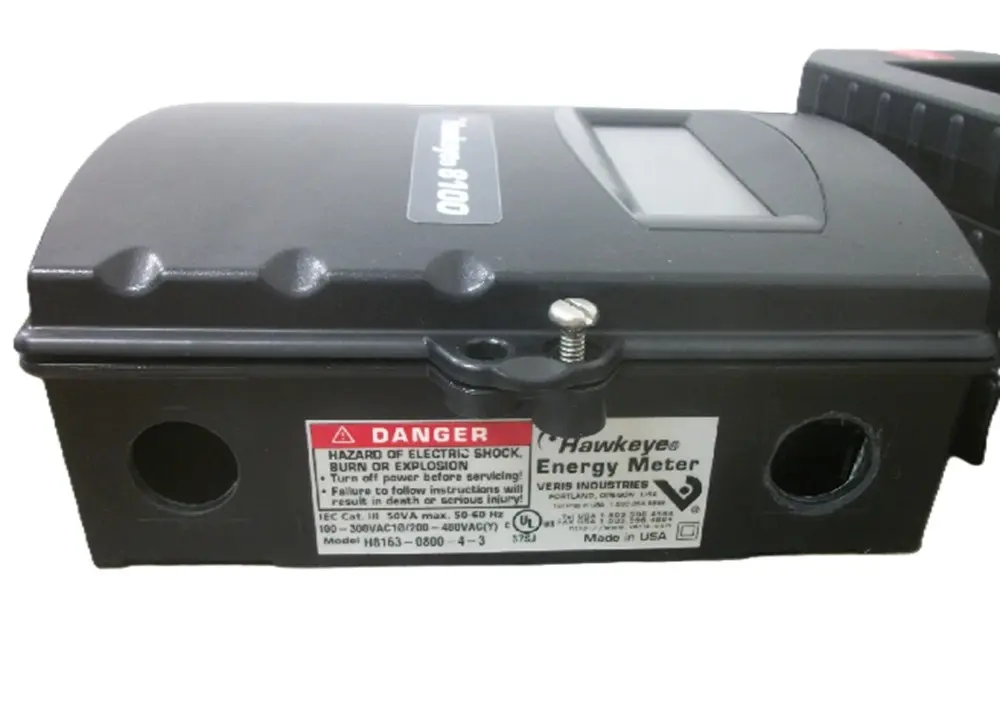

Veris H8163-0800-3-3 Revenue Grade Power MeterCommercial Energy Meter for 120-480V with Pulse Output and Phase Loss Alarm - 3x 800A Medium Current Transformers.The H81xx Series Energy Meters are easy to install and provide exceptional system accuracy, making them ideal for all submetering applications.Each meter is factory-matched with one to three split-core CTs. The meter/CT pairs are system-calibrated to provide excellent total system accuracies of 1% from 2% to 100% of the amperage rating of the CTs (e.g., 2-100 amps with 100 amp CTs). Matching serial numbers assure that the meter and CT were calibrated together (matching does not apply if using 100A CTs).The H81xx is easy to install. The split-core CTs eliminate the need to remove electrical conductors, reducing installation time. The meter is also capable of detecting and correcting phase reversal, eliminating the need for concern about CT load orientation. The convenient color coding of the CTs and voltage leads make correct connection simple.FeaturesRevenue Grade measurementsHigh resolution backlit LCD display provides clear readings at a distance... reduces the risk of misinterpretation of the data. Back-lighting can be disabled if desiredH8163 provides a pulse output from 1/10 to 1 pulse per kWh for easy connection to existing control or data acquisition systemsProvides a phase-loss alarm... protects equipment (H8163)With the optional communications board (H81xx-CB), the H81xx can easily be added to a Modbus, BACnet or N2 control system network to report multiple variables including kW, kWh, kVAR, PF, Amps and Volts, providing crucial power information at a reduced installation costSplit-core CTs eliminate the need to remove electrical conductors...reduces installation timeEnergy meters automatically detect and correct phase reversal, eliminating the need to be concerned with CT load orientationCTs and voltage leads are color coded making it easy to determine correct connectionApplicationsCommercial Tenant SubmeteringPerformance ContractingAllocating CostsReal-Time Power Monitoring Via Local Display or Through Control/Data Acquisition Systems. Veris. Veris Industries. H8163-0800-3-3.
