H8036-0800-3 Veris Panel Meters

Part number H8036-0800-3 from Veris, listed in Panel Meters. KKM Solutions quotes this part with pricing and availability confirmed per order.

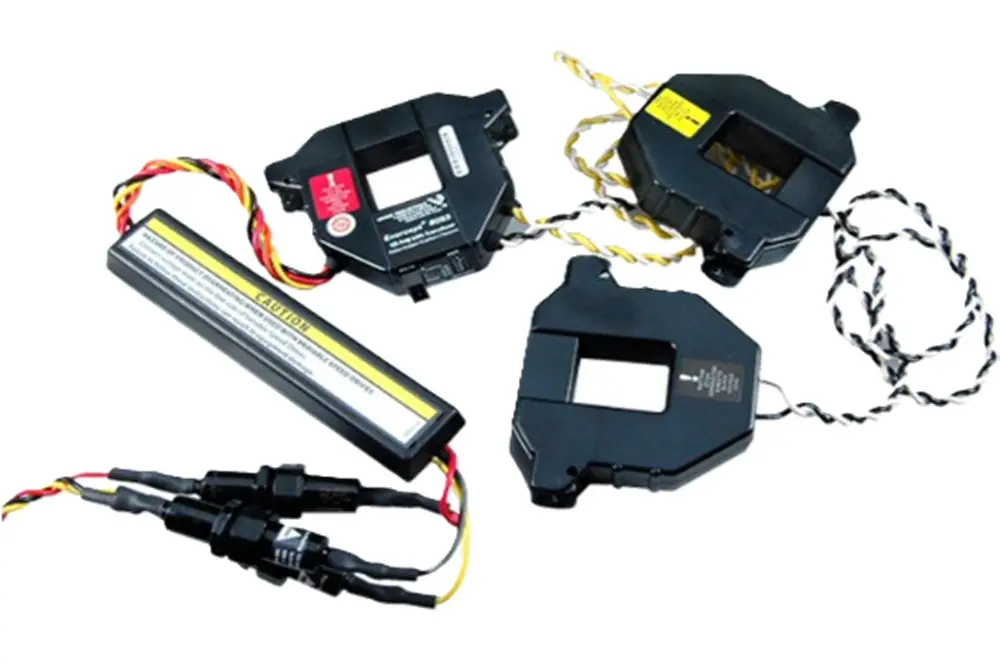

Three Phase Enercept Power Transducer with Modbus - 800A, Medium.The Enercept H8035 is an innovative three-phase networked (Modbus RTU) power transducer that combines electronics and high accuracy industrial grade CTs in a single package. The need for external electrical enclosures is eliminated, greatly reducing installation time and cost. Color-coordination between voltage leads and CTs makes phase matching easy. Additionally, these transducers automatically detect and compensate for phase reversal, eliminating the concern of CT load orientation. Up to 63 Transducers can be daisy-chained on a single RS-485 network. APPLICATIONS Energy managing & performance contracting Submetering for commercial tenants Activity-based costing in commercial and industrial facilities Real-time power monitoring The world's most cost-effective meter Monitor energy parameters (kW, kWh) at up to 63 locations on a single RS-485 network...greatly reduces wiring time and cost Fast split-core installation eliminates the need to remove conductors...saves time and labor Precision electronics and current transformers in a single package-reduces the number of installed components- huge labor savings Smart electronics eliminate CT orientation concerns-fast trouble-free installation ±1% total system accuracy, (10% to 100% of CT rating)FeaturesRevenue Grade measurementsPrecision electronics and current transformers in a single package...reduces the number of installed components...creating significant labor savingsMonitor energy parameters (kW, kWh, kVAR, PF, Amps, Volts) at up to 63 locations on a single RS-485 network...greatly reduces wiring time and cost Fastsplit core installation eliminates the need to remove conductors...savestime and laborSmart electronics eliminate CT orientation concerns...fast trouble-free installationCSI approved...eases submission process for California Solar InitiativeApplicationsEnergy managing & performance contractingSubmetering for commercial tenantsActivity-based costing in commercial and industrial facilitiesReal-time power monitoringThe world's most cost-effective meter. Veris. Veris Industries. H8036-0800-3.
