US Motors UN3T2BC 3 HP 4-Pole TE 3-Phase 1770 RPM Electric Motor
US Motors UN3T2BC - AC Motors - Horsepower: 3 HP; Speed: 1770 RPM; Poles: 4.
The US Motors UN3T2BC is part of the AC Motors range in our industrial catalog. The manufacturer's published data for this part number specifies Horsepower: 3 HP and Speed: 1770 RPM.
Key manufacturer data on file for this item includes Poles: 4; Insulation Class: F; Service Factor: 1; Locked-Rotor Torque: 400; Motor Type: UTNX; Mounting: HORZ-FOOTED; Rotation: DUAL; Phasetype: 3_PHASE; Motor Enclosure: TE; Kilowatts: 2.2; Number Speeds: 1; Hertz: 60. The complete technical table is shown in the Specifications tab on this page.
| Ambient | 40 |
|---|---|
| Assembly Position | F1 |
| Breakdown Torque | 573 |
| Breakdown Torque Uom | PERCENT OF FLT |
| Frme | 182 |
| Full Load Amps Primary | 10.1/5 |
| Hertz | 60 |
| Horsepower | 3 HP |
| Insulation Class | F |
| Kilowatts | 2.2 |
| Kva Code Letter | N |
| Locked Rotor Amps | 46 |
| Locked Rotor Torque Uom | PERCENT OF FLT |
| Locked-Rotor Torque | 400 |
| Motor Enclosure | TE |
| Motor Type | UTNX |
| Mounting | HORZ-FOOTED |
| Nema Nominal Efficiency | 87.5 |
| Number Speeds | 1 |
| Opposite End Bearing | 6206-2Z-J/C3 |
| Phasetype | 3_PHASE |
| Poles | 4 |
| Rotation | DUAL |
| Rpm 2 | 1770 |
| Service Factor | 1 |
| Shaft Code | TC |
| Shaft End Bearing | 6206-2Z-J/C3 |
| Shipping Weight | 65 |
| Speed | 1770 RPM |
| Startcapmfd | N\A |
| Volts | 460 |
| Volts 2 | 230 |
| Volts Primary | 230/460 |
Request a quote for this part
Email [email protected] or call (825) 454-5367 for pricing and availability.
Frequently Asked Questions
How do I get pricing for UN3T2BC?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email [email protected], and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the UN3T2BC?
UN3T2BC is a US Motors part. KKM Solutions sources US Motors components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
Is UN3T2BC discontinued, and can I still get one?
KKM Solutions does not publish a manufacturer lifecycle status for UN3T2BC — check US Motors's own product page for whether it is current, superseded, or end-of-life. It does not change what we can do: we source current-production, superseded and long-obsolete parts the same way, and where a part is genuinely unavailable we identify a form-fit-function equivalent. Send the part number through the quote form on this page, or use our obsolete part lookup at https://kkmsolutions.com/tools/obsolete-part-lookup/.
What are the key specifications of UN3T2BC?
Key specifications include Ambient: 40; Assembly Position: F1; Breakdown Torque: 573; Breakdown Torque Uom: PERCENT OF FLT. The full specification table on this page lists every published attribute for this part.
How quickly can UN3T2BC ship?
In-stock items are dispatched the same business day for orders placed by 11 AM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Variants & Related Part Numbers
Other US Motors part numbers in this family:
- UN3T2GC — US Motors UN3T2GC
Related Products

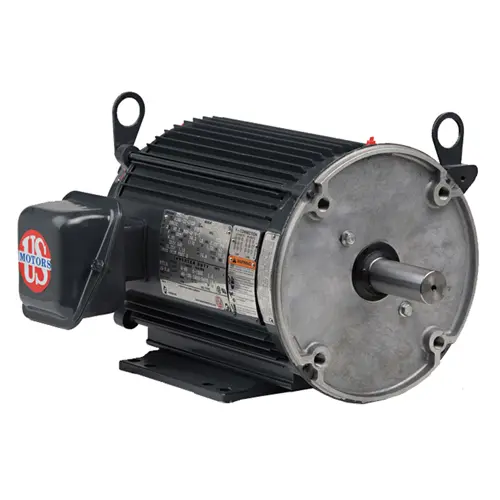

US Motors US Motors UN32T2BC-HS35A 1.5 HP 4-Pole TENV 3-Phase 1760…
