US Motors UN2T2BC-HS35A 2 HP 4-Pole TENV 3-Phase 1750 RPM Electric Motor
| Ambient | 40 |
|---|---|
| Assembly Position | F1 |
| Breakdown Torque | 543 |
| Breakdown Torque Uom | PERCENT OF FLT |
| Frme | 145 |
| Full Load Amps Primary | 5.6/2.8 |
| Hertz | 60 |
| Horsepower | 2 HP |
| Insulation Class | F |
| Kilowatts | 1.5 |
| Kva Code Letter | M |
| Locked Rotor Amps | 28 |
| Locked Rotor Torque Uom | PERCENT OF FLT |
| Locked-Rotor Torque | 425 |
| Motor Enclosure | TENV |
| Motor Type | UTNX |
| Mounting | HORZ-FOOTED |
| Nema Nominal Efficiency | 86.5 |
| Number Speeds | 1 |
| Opposite End Bearing | 6203-2Z-J/C3 |
| Phasetype | 3_PHASE |
| Poles | 4 |
| Rotation | DUAL |
| Rpm 2 | 1750 |
| Service Factor | 1 |
| Shaft Code | TC |
| Shaft End Bearing | 6205-2Z-J/C3 |
| Shipping Weight | 60 |
| Speed | 1750 RPM |
| Startcapmfd | N\A |
| Volts | 460 |
| Volts 2 | 230 |
| Volts Primary | 230/460 |
Frequently Asked Questions
How do I get pricing for UN2T2BC-HS35A?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the UN2T2BC-HS35A?
UN2T2BC-HS35A is a US Motors part. KKM Solutions sources US Motors components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
What are the key specifications of UN2T2BC-HS35A?
Key specifications include Ambient: 40; Assembly Position: F1; Breakdown Torque: 543; Breakdown Torque Uom: PERCENT OF FLT. The full specification table on this page lists every published attribute for this part.
How quickly can UN2T2BC-HS35A ship?
In-stock items are dispatched the same business day for orders placed by 3 PM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Related Products
US Motors US Motors UN2T2BC 2 HP 4-Pole TENV 3-Phase 1750…
US Motors US Motors UJ7C2K21P 7.5 HP 4-Pole TE 1-Phase 1725…

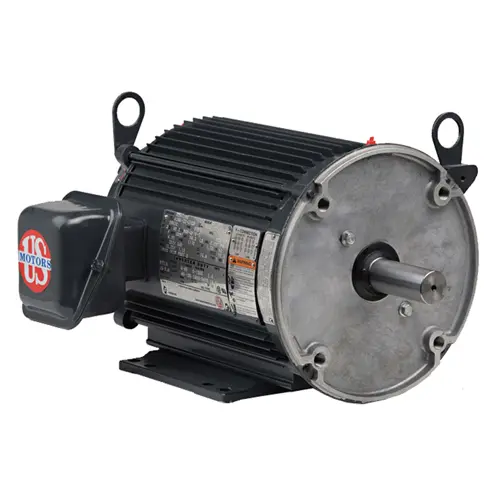

US Motors US Motors UN7T2BC-HS35A 7.5 HP 4-Pole TENV 3-Phase 1775…
