U34P3GC US Motors 75 HP 6-Pole TEFC 3-Phase 1165 RPM Electric Motor
US Motors U34P3GC - AC Motors - Horsepower: .75 HP; Speed: 1165 RPM; Poles: 6.
Overview
The US Motors U34P3GC is part of the AC Motors range in our industrial catalog. The manufacturer's published data for this part number specifies Horsepower: .75 HP and Speed: 1165 RPM.
The specification set recorded for this part number covers Poles: 6; Insulation Class: F; Service Factor: 1.25; Locked-Rotor Torque: 359; Motor Type: UTE; Mounting: HORZ-FOOTED; Rotation: DUAL; Phasetype: 3_PHASE; Motor Enclosure: TEFC; Kilowatts: 0.6; Number Speeds: 1; Hertz: 60. See the Specifications tab on this page for the full technical table.
Specifications
| Ambient | 40 |
|---|---|
| Assembly Position | F1 |
| Breakdown Torque | 470 |
| Breakdown Torque Uom | PERCENT OF FLT |
| Frame | 56 |
| Full Load Amps Primary | 1.2 |
| Hertz | 60 |
| Horsepower | .75 HP |
| Insulation Class | F |
| Kilowatts | 0.6 |
| Kva Code Letter | M |
| Locked Rotor Amps | 7.7 |
| Locked Rotor Torque Uom | PERCENT OF FLT |
| Locked-Rotor Torque | 359 |
| Motor Enclosure | TEFC |
| Motor Type | UTE |
| Mounting | HORZ-FOOTED |
| Nema Nominal Efficiency | 82.5 |
| Number Speeds | 1 |
| Opposite End Bearing | 6203-2Z-J/C3 |
| Phasetype | 3_PHASE |
| Poles | 6 |
| Rotation | DUAL |
| Service Factor | 1.25 |
| Service Factor Amps Primary | 1.3 |
| Shaft Code | C |
| Shaft End Bearing | 6203-2Z-J/C3 |
| Shipping Weight | 30 |
| Speed | 1165 RPM |
| Startcapmfd | N\A |
| Volts | 575 |
| Volts Primary | 575 |
Product details
| Manufacturer | US Motors |
|---|---|
| Manufacturer part number | U34P3GC |
| KKM catalog reference | US-MOTORS-U34P3GC |
| Product category | General Purpose AC Motors |
| Published specifications | 32 attributes listed |
Request a quote for this part
Email [email protected] or call (825) 454-5367 for pricing and availability.
Frequently Asked Questions
How do I get pricing for U34P3GC?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email [email protected], and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the U34P3GC?
U34P3GC is a US Motors part. KKM Solutions sources US Motors components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
What is the lifecycle status of U34P3GC?
We do not hold a published lifecycle status for U34P3GC. US Motors's publishes whether a catalog number is current, superseded or end-of-life on its own product page, and our order desk confirms the current status with the manufacturer at quote time — you are told if the part is superseded or discontinued before you commit. Either way we source current-production, superseded and long-obsolete parts the same way; where a part is genuinely unavailable we identify a form-fit-function equivalent. Send the part number through the quote form on this page, or use our obsolete part lookup at https://kkmsolutions.com/tools/obsolete-part-lookup/.
What are the key specifications of U34P3GC?
Key specifications include Ambient: 40; Assembly Position: F1; Breakdown Torque: 470; Breakdown Torque Uom: PERCENT OF FLT. The full specification table on this page lists every published attribute for this part.
How quickly can U34P3GC ship?
In-stock items are dispatched the same business day for orders placed by 11 AM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Related Products

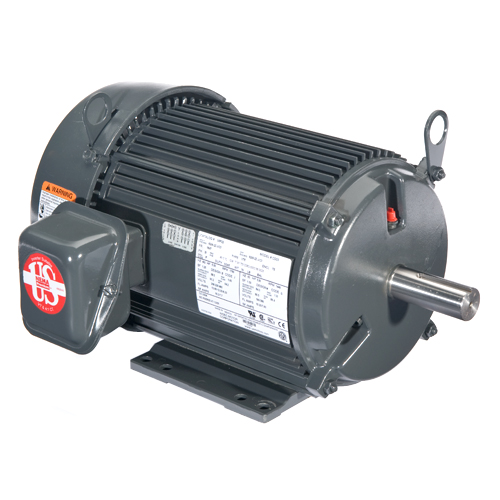

US Motors US Motors U32V1B 1.5 HP 2-Pole TEFC 3-Phase 3505…

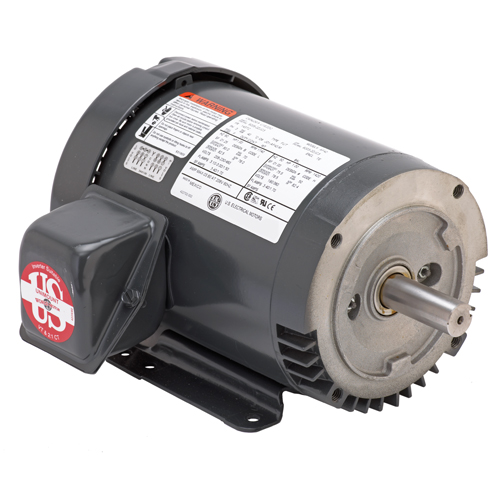

US Motors US Motors U34S1AC .75 HP 2-Pole TEFC 3-Phase 3500…

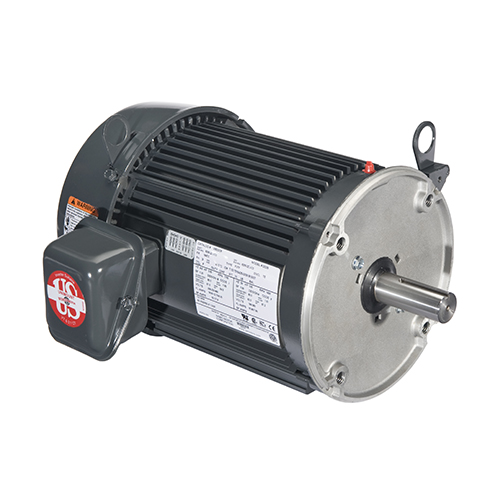

US Motors US Motors U32P3DCR 1.5 HP 6-Pole TE 3-Phase 1175…
US Motors US Motors U3P1AHZ 3 HP 2-Pole TEFC 3-Phase 3450…

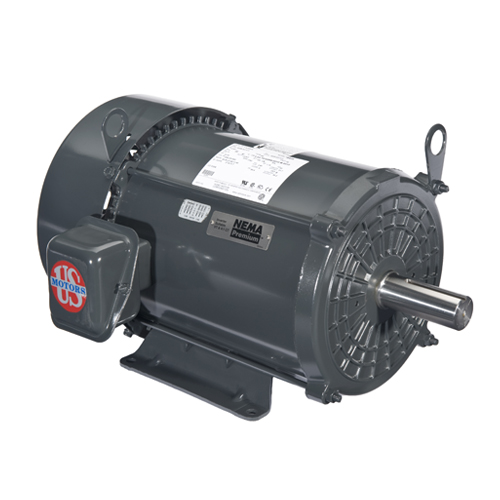

US Motors US Motors U32P1GH 1.5 HP 2-Pole TEFC 3-Phase 3515…
