US Motors U10P1H 10 HP 2-Pole TEFC 3-Phase 3525 RPM Electric Motor
US Motors U10P1H - AC Motors - Horsepower: 10 HP; Speed: 3525 RPM; Poles: 2.
This listing covers the US Motors U10P1H, a part number in the AC Motors category. The manufacturer's published data for this part number specifies Horsepower: 10 HP and Speed: 3525 RPM.
The specification set recorded for this part number covers Poles: 2; Insulation Class: F; Service Factor: 1.25; Locked-Rotor Torque: 150; Motor Type: UTE; Mounting: HORZ-FOOTED; Rotation: DUAL; Phasetype: 3_PHASE; Motor Enclosure: TEFC; Kilowatts: 7.5; Number Speeds: 1; Hertz: 60. The complete technical table is shown in the Specifications tab on this page.
| Ambient | 40 |
|---|---|
| Assembly Position | F1 |
| Breakdown Torque | 263 |
| Breakdown Torque Uom | PERCENT OF FLT |
| Frme | 215 |
| Full Load Amps Primary | 27.5 |
| Hertz | 60 |
| Horsepower | 10 HP |
| Insulation Class | F |
| Kilowatts | 7.5 |
| Kva Code Letter | G |
| Locked Rotor Amps | 168.9 |
| Locked Rotor Torque Uom | PERCENT OF FLT |
| Locked-Rotor Torque | 150 |
| Motor Enclosure | TEFC |
| Motor Type | UTE |
| Mounting | HORZ-FOOTED |
| Nema Nominal Efficiency | 90.2 |
| Number Speeds | 1 |
| Opposite End Bearing | 6206-2Z-J/C3 |
| Phasetype | 3_PHASE |
| Poles | 2 |
| Rotation | DUAL |
| Service Factor | 1.25 |
| Service Factor Amps Primary | 35 |
| Shaft Code | T |
| Shaft End Bearing | 6208-2Z-J/C3 |
| Shipping Weight | 120 |
| Speed | 3525 RPM |
| Startcapmfd | N\A |
| Volts | 200 |
| Volts Primary | 200 |
Request a quote for this part
Email [email protected] or call (825) 454-5367 for pricing and availability.
Frequently Asked Questions
How do I get pricing for U10P1H?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email [email protected], and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the U10P1H?
U10P1H is a US Motors part. KKM Solutions sources US Motors components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
Is U10P1H discontinued, and can I still get one?
KKM Solutions does not publish a manufacturer lifecycle status for U10P1H — check US Motors's own product page for whether it is current, superseded, or end-of-life. It does not change what we can do: we source current-production, superseded and long-obsolete parts the same way, and where a part is genuinely unavailable we identify a form-fit-function equivalent. Send the part number through the quote form on this page, or use our obsolete part lookup at https://kkmsolutions.com/tools/obsolete-part-lookup/.
What are the key specifications of U10P1H?
Key specifications include Ambient: 40; Assembly Position: F1; Breakdown Torque: 263; Breakdown Torque Uom: PERCENT OF FLT. The full specification table on this page lists every published attribute for this part.
How quickly can U10P1H ship?
In-stock items are dispatched the same business day for orders placed by 11 AM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Variants & Related Part Numbers
Other US Motors part numbers in this family:
- U10P1D — US Motors U10P1D 10 HP 2-Pole TEFC 3-Phase 3530 RPM Electric Motor
- U10P2D — US Motors U10P2D
- U10P2G — US Motors U10P2G 10 HP 4-Pole TEFC 3-Phase 1760 RPM Electric Motor
- U10P3DC — US Motors U10P3DC 10 HP 6-Pole TEFC 3-Phase 1180 RPM Electric Motor
- U10P3DCR — US Motors U10P3DCR 10 HP 6-Pole TEFC 3-Phase 1180 RPM Electric Motor
Related Products
US Motors US Motors TS603 2 HP 2-Pole ODP 1-Phase 3450…

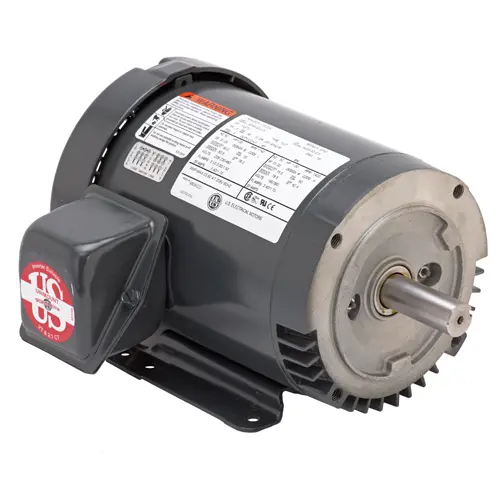

US Motors US Motors U12S1AC .5 HP 2-Pole TEFC 3-Phase 3500…
