US Motors CVWG25V2B 25 HP 4-Pole TEAO-IP55 3-Phase 1775 RPM Electric Motor
US Motors CVWG25V2B - AC Motors - Horsepower: 25 HP; Speed: 1775 RPM; Poles: 4.
The US Motors CVWG25V2B is part of the AC Motors range in our industrial catalog. The manufacturer's published data for this part number specifies Horsepower: 25 HP and Speed: 1775 RPM.
Published specifications for this part include Poles: 4; Insulation Class: F; Service Factor: 1.15; Locked-Rotor Torque: 210; Motor Type: TCNI; Mounting: HORZ-FOOTED; Rotation: DUAL; Phasetype: 3_PHASE; Motor Enclosure: TEAO-IP55; Kilowatts: 18.6; Number Speeds: 1; Hertz: 60. The complete technical table is shown in the Specifications tab on this page.
| Ambient | 40 |
|---|---|
| Assembly Position | F1 |
| Breakdown Torque | 280 |
| Breakdown Torque Uom | PERCENT OF FLT |
| Frme | 284 |
| Full Load Amps Primary | 58/29.2 |
| Hertz | 60 |
| Horsepower | 25 HP |
| Insulation Class | F |
| Kilowatts | 18.6 |
| Kva Code Letter | G |
| Locked Rotor Amps | 195.5 |
| Locked Rotor Torque Uom | PERCENT OF FLT |
| Locked-Rotor Torque | 210 |
| Motor Enclosure | TEAO-IP55 |
| Motor Type | TCNI |
| Mounting | HORZ-FOOTED |
| Nema Nominal Efficiency | 93.6 |
| Number Speeds | 1 |
| Opposite End Bearing | 6210-2RS-J/C3 |
| Phasetype | 3_PHASE |
| Poles | 4 |
| Rotation | DUAL |
| Rpm 2 | 1775 |
| Service Factor | 1.15 |
| Service Factor Amps Primary | 67/33 |
| Shaft Code | T |
| Shaft End Bearing | 6310-2RS-J/C3 |
| Shipping Weight | 380 |
| Speed | 1775 RPM |
| Startcapmfd | N\A |
| Volts | 460 |
| Volts 2 | 230 |
| Volts Primary | 230/460 |
Request a quote for this part
Email [email protected] or call (825) 454-5367 for pricing and availability.
Frequently Asked Questions
How do I get pricing for CVWG25V2B?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email [email protected], and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the CVWG25V2B?
CVWG25V2B is a US Motors part. KKM Solutions sources US Motors components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
Is CVWG25V2B discontinued, and can I still get one?
KKM Solutions does not publish a manufacturer lifecycle status for CVWG25V2B — check US Motors's own product page for whether it is current, superseded, or end-of-life. It does not change what we can do: we source current-production, superseded and long-obsolete parts the same way, and where a part is genuinely unavailable we identify a form-fit-function equivalent. Send the part number through the quote form on this page, or use our obsolete part lookup at https://kkmsolutions.com/tools/obsolete-part-lookup/.
What are the key specifications of CVWG25V2B?
Key specifications include Ambient: 40; Assembly Position: F1; Breakdown Torque: 280; Breakdown Torque Uom: PERCENT OF FLT. The full specification table on this page lists every published attribute for this part.
How quickly can CVWG25V2B ship?
In-stock items are dispatched the same business day for orders placed by 11 AM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Variants & Related Part Numbers
Other US Motors part numbers in this family:
- CVWG25V2B6 — US Motors CVWG25V2B6 25 HP 4-Pole TEAO-IP55 3-Phase 1775 RPM Electric Motor
Related Products
US Motors US Motors CVW50V3B6 50 HP 6-Pole TEAO-IP55 3-Phase 1190…
US Motors US Motors CVWG30V3B 30 HP 6-Pole TEAO 3-Phase 1180…
US Motors US Motors CVW30V3B6 30 HP 6-Pole TEAO-IP55 3-Phase 1180…
US Motors US Motors CVWG3V3B2 3 HP 6-Pole TEAO-IP55 3-Phase 1180…

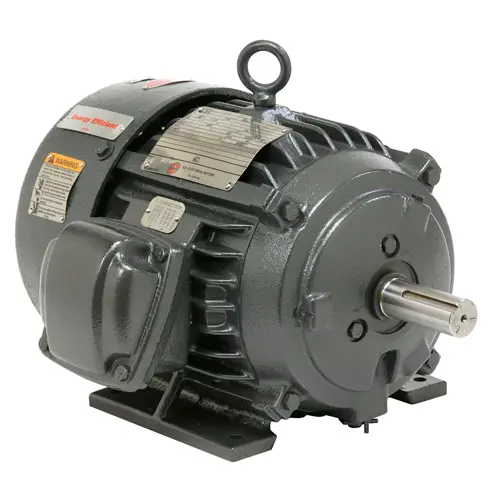

US Motors US Motors CP13 1 1/2 HP 4-Pole TEFC 3-Phase…
