US Motors 8D7P1C 7.5 HP 2-Pole TEFC-IP55 3-Phase 3533 RPM Electric Motor
US Motors 8D7P1C - AC Motors - Horsepower: 7.5 HP; Speed: 3533 RPM; Poles: 2.
This listing covers the US Motors 8D7P1C, a part number in the AC Motors category. The manufacturer's published data for this part number specifies Horsepower: 7.5 HP and Speed: 3533 RPM.
The specification set recorded for this part number covers Poles: 2; Insulation Class: F; Service Factor: 1.15; Locked-Rotor Torque: 152; Motor Type: CE; Mounting: HORZ-FOOTED; Rotation: DUAL; Phasetype: 3_PHASE; Motor Enclosure: TEFC-IP55; Kilowatts: 5.6; Number Speeds: 1; Hertz: 60. The complete technical table is shown in the Specifications tab on this page.
| Ambient | 40 |
|---|---|
| Assembly Position | F1 |
| Breakdown Torque | 273 |
| Breakdown Torque Uom | PERCENT OF FLT |
| Frme | 213 |
| Full Load Amps Primary | 9.2 |
| Hertz | 60 |
| Horsepower | 7.5 HP |
| Insulation Class | F |
| Kilowatts | 5.6 |
| Kva Code Letter | G |
| Locked Rotor Amps | 57.7 |
| Locked Rotor Torque Uom | PERCENT OF FLT |
| Locked-Rotor Torque | 152 |
| Motor Enclosure | TEFC-IP55 |
| Motor Type | CE |
| Mounting | HORZ-FOOTED |
| Nema Nominal Efficiency | 89.5 |
| Number Speeds | 1 |
| Opposite End Bearing | 6208-J/C3 |
| Phasetype | 3_PHASE |
| Poles | 2 |
| Rotation | DUAL |
| Service Factor | 1.15 |
| Service Factor Amps Primary | 10.6 |
| Shaft Code | T |
| Shaft End Bearing | 6208-J/C3 |
| Shipping Weight | 150 |
| Speed | 3533 RPM |
| Startcapmfd | N\A |
| Volts | 460 |
| Volts Primary | 460 |
Request a quote for this part
Email [email protected] or call (825) 454-5367 for pricing and availability.
Frequently Asked Questions
How do I get pricing for 8D7P1C?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email [email protected], and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the 8D7P1C?
8D7P1C is a US Motors part. KKM Solutions sources US Motors components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
Is 8D7P1C discontinued, and can I still get one?
KKM Solutions does not publish a manufacturer lifecycle status for 8D7P1C — check US Motors's own product page for whether it is current, superseded, or end-of-life. It does not change what we can do: we source current-production, superseded and long-obsolete parts the same way, and where a part is genuinely unavailable we identify a form-fit-function equivalent. Send the part number through the quote form on this page, or use our obsolete part lookup at https://kkmsolutions.com/tools/obsolete-part-lookup/.
What are the key specifications of 8D7P1C?
Key specifications include Ambient: 40; Assembly Position: F1; Breakdown Torque: 273; Breakdown Torque Uom: PERCENT OF FLT. The full specification table on this page lists every published attribute for this part.
How quickly can 8D7P1C ship?
In-stock items are dispatched the same business day for orders placed by 11 AM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Related Products

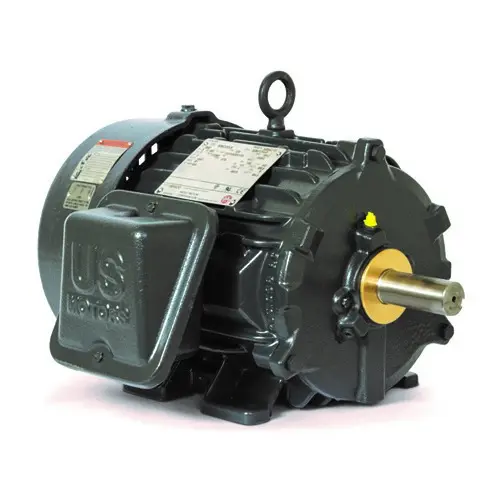

US Motors US Motors 8D5P3C 5 HP 6-Pole TEFC-IP55 3-Phase 1175…
