Turck TTMS-206A-CF-LI6-H1140-L600-0/100
Turck 100050214 - Temperature Sensors - Weight: 116 g; Ambient temperature: -40…+80 °C; Housing material: Stainless steel, 1.4404 (AISI 316L).
Overview
The Turck 100050214 is part of the Temperature Sensors range in our industrial catalog. The manufacturer's published data for this part number specifies Weight: 116 g and Ambient temperature: -40…+80 °C.
The specification set recorded for this part number covers Housing material: Stainless steel, 1.4404 (AISI 316L); Electrical connection: Connector, M12 × 1; Protection class: IP67; EAN: 4047101671070; Measuring range: 0…100 °C; Operating voltage: 5…32 VDC; Design: Without display (integrated probe); Process Connection: For compression fittings, thermowell or direct mounting; Country of origin: IT; Electrical output: Current output (2-wire); Current output: 4…20 mA; Approvals: CE. The complete technical table is shown in the Specifications tab on this page.
Specifications
| Ambient temperature | -40…+80 °C |
|---|---|
| Approvals | CE |
| Country of origin | IT |
| Current output | 4…20 mA |
| Design | Without display (integrated probe) |
| Detection type | medium contact |
| EAN | 4047101671070 |
| Electrical connection | Connector, M12 × 1 |
| Electrical output | Current output (2-wire) |
| Housing material | Stainless steel, 1.4404 (AISI 316L) |
| Immersion depth L | 100 mm |
| Measuring element | Pt1000 |
| Measuring range | 0…100 °C |
| Operating voltage | 5…32 VDC |
| Process Connection | For compression fittings, thermowell or direct mounting |
| Protection class | IP67 |
| Weight | 116 g |
Product details
| Manufacturer | Turck |
|---|---|
| Manufacturer part number | 100050214 |
| KKM catalog reference | TURCK-100050214 |
| Product category | Temperature Sensors |
| Published specifications | 17 attributes listed |
| Related part numbers | 16 other part numbers in this family |
Request a quote for this part
Email [email protected] or call (825) 454-5367 for pricing and availability.
Frequently Asked Questions
How do I get pricing for 100050214?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email [email protected], and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the 100050214?
100050214 is a Turck part. KKM Solutions sources Turck components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
What is the lifecycle status of 100050214?
We do not hold a published lifecycle status for 100050214. Turck's publishes whether a catalog number is current, superseded or end-of-life on its own product page, and our order desk confirms the current status with the manufacturer at quote time — you are told if the part is superseded or discontinued before you commit. Either way we source current-production, superseded and long-obsolete parts the same way; where a part is genuinely unavailable we identify a form-fit-function equivalent. Send the part number through the quote form on this page, or use our obsolete part lookup at https://kkmsolutions.com/tools/obsolete-part-lookup/.
What are the key specifications of 100050214?
Key specifications include Ambient temperature: -40…+80 °C; Approvals: CE; Country of origin: IT; Current output: 4…20 mA. The full specification table on this page lists every published attribute for this part.
How quickly can 100050214 ship?
In-stock items are dispatched the same business day for orders placed by 11 AM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Variants & Related Part Numbers
Other Turck part numbers in this family:
Related Products

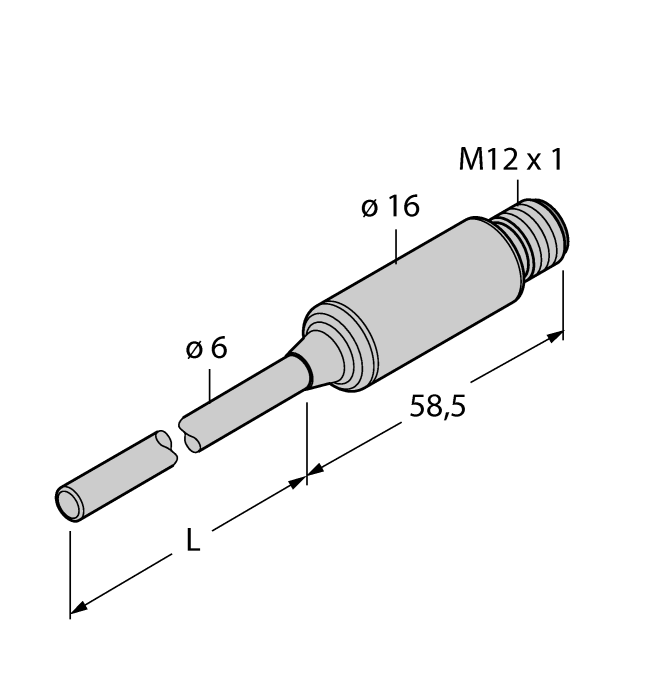

Turck Turck TTMS-206A-CF-LIUPN-H1140-L600
Turck Turck TTMS-206A-CF-LI6-H1140-L600-20/80
Turck Turck TTM-206A-CF-LIUPN-H1140-L100/S3680
Turck Turck TTM-206A-CF-LIUPN-H1140-L200/S3680
Turck Turck TP-504A-TRI1.5-H1141-L100/S3645

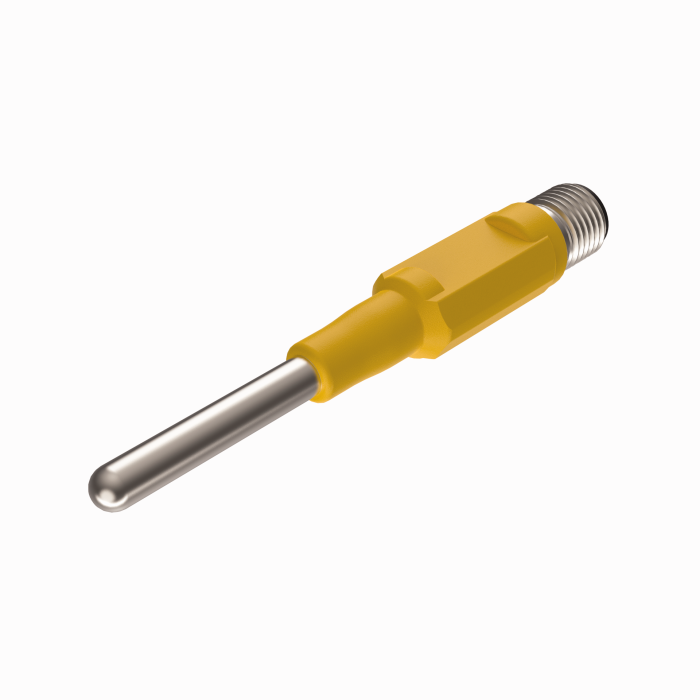

Turck Turck TTM-206A-CF-LIUPN-H1140-L050/S3681
