Turck FS101-300L-63-2LI-H1141
Overview
Screw-in adapter with process connection NPT 1/2″ male thread included in delivery | Electronics housing material/media-contacting 1.4404 (316L)/1.4571 (316Ti) | Immersion depth 41.9 mm | 4-digit 12-segment display, rotatable by 180° | Flow monitoring for liquid media | Protection classes IP66, IP67 and IP69K | Adjustment of flow speed via teach function | 17…33 VDC | Analog output 4…20 mA | Male connector, M12 × 1
Specifications
| Ambient temperature | -40…+80 °C |
|---|---|
| Approvals | CE, cULus |
| Bar length (L1) | 70 mm |
| Country of origin | DE |
| Current output | 4…20 mA |
| Design | With display (integrated probe) |
| EAN | 4047101655100 |
| Electrical connection | Connector, M12 × 1 |
| Function | Flow monitoring |
| Housing material | Stainless-steel/Plastic, 1.4404 (AISI 316L)/Grilamid TR90 UV/Elastollan C 65 A 15 HPM 000/Ultramid A3X2G5 |
| Immersion depth L | 41.9 mm |
| Medium | liquids |
| Medium temperature | -25…+85 °C |
| Operating voltage | 17…33 VDC |
| Output function | Analog output current |
| Process Connection | 1/2″ NPT male thread |
| Protection class | IP66/IP67/IP69K |
| Weight | 1100 g |
Product details
| Manufacturer | Turck |
|---|---|
| Manufacturer part number | 100049080 |
| KKM catalog reference | TURCK-100049080 |
| Product category | Flow Sensors & Meters |
| Published specifications | 18 attributes listed |
| Related part numbers | 5 other part numbers in this family |
Request a quote for this part
Email [email protected] or call (825) 454-5367 for pricing and availability.
Frequently Asked Questions
How do I get pricing for 100049080?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email [email protected], and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the 100049080?
100049080 is a Turck part. KKM Solutions sources Turck components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
What is the lifecycle status of 100049080?
We do not hold a published lifecycle status for 100049080. Turck's publishes whether a catalog number is current, superseded or end-of-life on its own product page, and our order desk confirms the current status with the manufacturer at quote time — you are told if the part is superseded or discontinued before you commit. Either way we source current-production, superseded and long-obsolete parts the same way; where a part is genuinely unavailable we identify a form-fit-function equivalent. Send the part number through the quote form on this page, or use our obsolete part lookup at https://kkmsolutions.com/tools/obsolete-part-lookup/.
What are the key specifications of 100049080?
Key specifications include Ambient temperature: -40…+80 °C; Approvals: CE, cULus; Bar length (L1): 70 mm; Country of origin: DE. The full specification table on this page lists every published attribute for this part.
How quickly can 100049080 ship?
In-stock items are dispatched the same business day for orders placed by 11 AM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Variants & Related Part Numbers
Other Turck part numbers in this family:
Related Products
Turck Turck FS101-300L-61-2UPN8-H1141
Turck Turck FS121-2UPN8-H1141

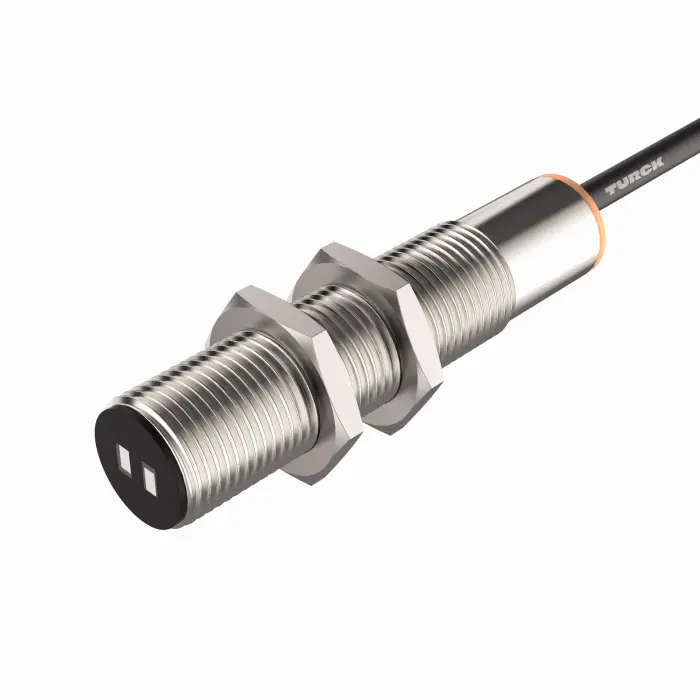

Turck Turck FCS-M18-IOL
