Turck B2N85H-QR20-CNX4-H1150
Overview
Rectangular, plastic, Ultem | Status displayed via LED | Angle detection over two axes with ±85° measuring range | Temperature detection from -40…85 °C | High protection class IP68/IP69K | Increased interference immunity 100 V/m acc. to ISO 11452-2, 200 mA acc. to ISO 11452-4 | Protection against conducted interference acc. to ISO 7637-2 severity degree Level 4 and load dump acc. to ISO 16750-2 for 12-V/24-V systems | Withstands rapid temperature change | 8…36 VDC | Connector, M12 × 1, 5-pin, CAN in | Acc. to CiA 301, CiA 305, CiA 410
Specifications
| Ambient temperature | -40…+85 °C |
|---|---|
| Communication Protocol | CANopen |
| Construction size | 71.6 x 62.6 x 20 mm |
| Country of origin | DE |
| EAN | 4047101628937 |
| Electrical connection | Connector, M12 × 1 |
| Housing material | Plastic, Ultem |
| Measuring principle | Acceleration |
| Measuring range | -85…85° |
| Number of measuring axes | 2 |
| Operating voltage | 8…36 VDC |
| Protection class | IP68/IP69K |
| Weight | 89 g |
Product details
| Manufacturer | Turck |
|---|---|
| Manufacturer part number | 100046443 |
| KKM catalog reference | TURCK-100046443 |
| Product category | Sensors & Encoders |
| Published specifications | 13 attributes listed |
| Related part numbers | 12 other part numbers in this family |
Request a quote for this part
Email [email protected] or call (825) 454-5367 for pricing and availability.
Frequently Asked Questions
How do I get pricing for 100046443?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email [email protected], and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the 100046443?
100046443 is a Turck part. KKM Solutions sources Turck components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
What is the lifecycle status of 100046443?
We do not hold a published lifecycle status for 100046443. Turck's publishes whether a catalog number is current, superseded or end-of-life on its own product page, and our order desk confirms the current status with the manufacturer at quote time — you are told if the part is superseded or discontinued before you commit. Either way we source current-production, superseded and long-obsolete parts the same way; where a part is genuinely unavailable we identify a form-fit-function equivalent. Send the part number through the quote form on this page, or use our obsolete part lookup at https://kkmsolutions.com/tools/obsolete-part-lookup/.
What are the key specifications of 100046443?
Key specifications include Ambient temperature: -40…+85 °C; Communication Protocol: CANopen; Construction size: 71.6 x 62.6 x 20 mm; Country of origin: DE. The full specification table on this page lists every published attribute for this part.
How quickly can 100046443 ship?
In-stock items are dispatched the same business day for orders placed by 11 AM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Variants & Related Part Numbers
Other Turck part numbers in this family:
Related Products
Turck Turck B1NF360V-QR20-CNX4-H1150
Turck Turck B2NF85H-QR20-CNX4-H1150
Turck Turck B1N360V-QR20-CNX4-H1150
Turck Turck B2NF85H-QR20-CNX4-2H1150

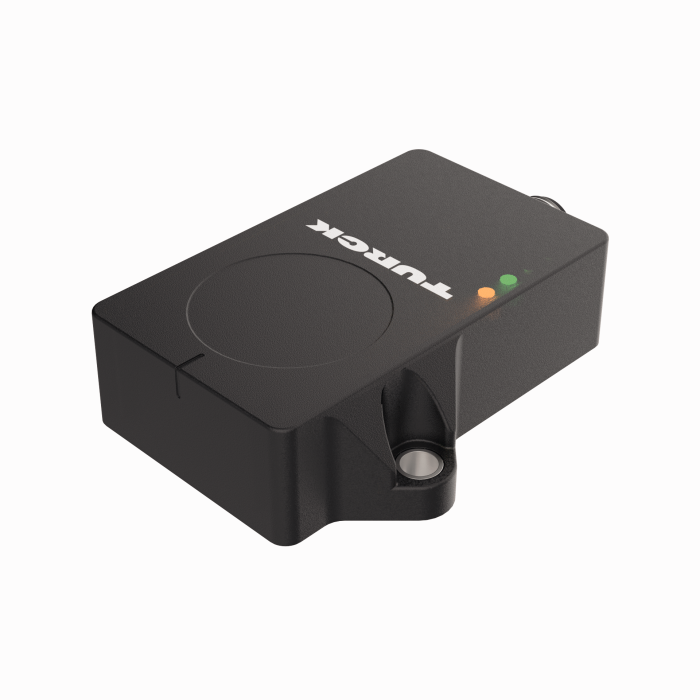

Turck Turck B1N360V-QR20-2LU3X3LD-H1151
