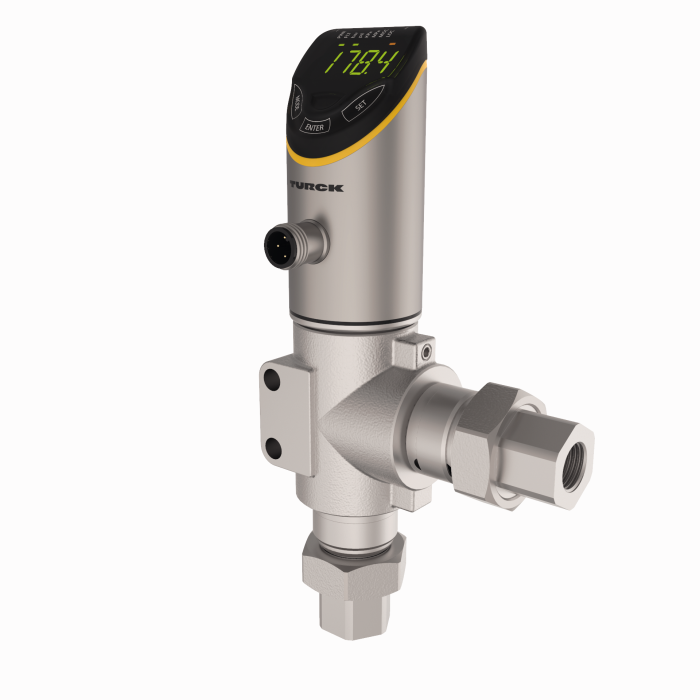

Turck PS326-003D-02-LI2UPN8-H1141
4-digit, 2-color (red/green), 12-segment display, rotatable by 180° | Housing is rotatable after mounting the process connection | Pressure range 0…2.5 bar diff. | 18…33 V DC | NO/NC contact, PNP/NPN output, analog output (current/voltage), IO-Link | L-type | Process connection 1/4 inch NPT-18 female thread | Connector device, M12 × 1
| Ambient temperature | -40…+80 °C |
|---|---|
| Approvals | CE, Metrological certification (RUS), cULus |
| Communication Protocol | IO-Link |
| Country of origin | DE |
| Current output | 4…20 mA |
| Design | With display (integrated probe) |
| EAN | 4047101534917 |
| Electrical connection | Connector, M12 × 1 |
| Electrical output | Switching output, Current output (3-wire), Voltage output (3-wire), IO-Link |
| Housing material | Stainless-steel/Plastic, 1.4404 (AISI 316L)/Grilamid TR90 UV/Elastollan C 65 A 15 HPM 000/Ultramid A3X2G5 |
| Materials (contact with media) | Stainless steel 1.4404 (AISI 316L), Al₂O₃, FKM |
| Medium temperature | -30…+80 °C |
| Operating voltage | 18…33 VDC |
| Pressure range bar | 0…2.5 bar |
| Pressure range psi | 0…36.26 psi |
| Pressure type | Differential Pressure |
| Process Connection | 1/4″ NPT-18 female thread |
| Protection class | IP66/IP67/IP69K |
| Voltage output | 0…10 V |
| Weight | 0 g |
Frequently Asked Questions
How do I get pricing for 100017554?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the 100017554?
100017554 is a Turck part. KKM Solutions sources Turck components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
What are the key specifications of 100017554?
Key specifications include Ambient temperature: -40…+80 °C; Approvals: CE, Metrological certification (RUS), cULus; Communication Protocol: IO-Link; Country of origin: DE. The full specification table on this page lists every published attribute for this part.
How quickly can 100017554 ship?
In-stock items are dispatched the same business day for orders placed by 3 PM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Related Products
Turck Turck PS510-400-03-2UPN8-H1141/X

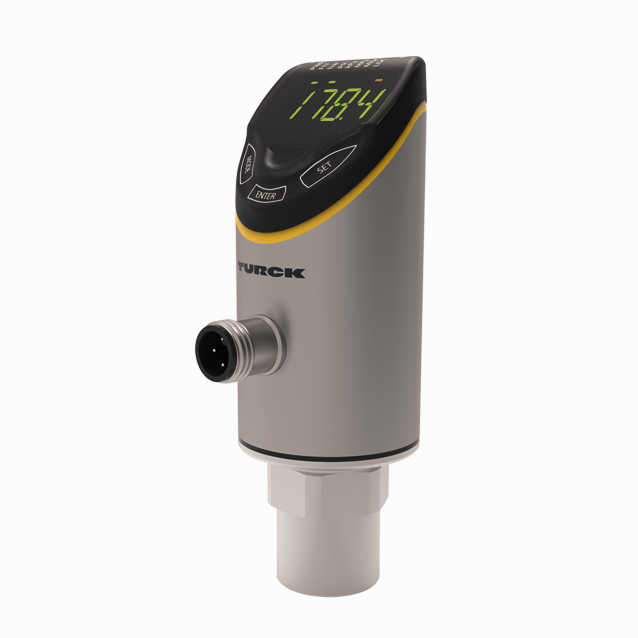

Turck Turck PS510-10V-01-LI2UPN8-H1141/X
Turck Turck PS310-1V-01-2UPN8-H1141

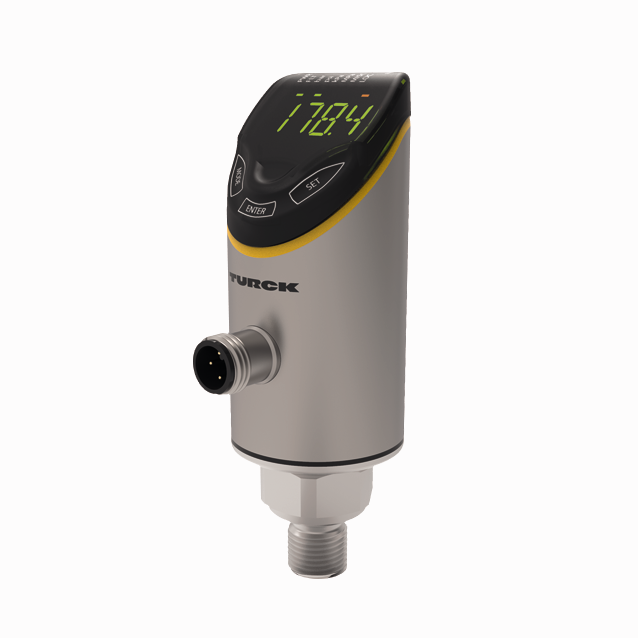

Turck Turck PS510-400-03-2UPN8-H1141
