Turck LS-534-1000-LIU24PN8X-H1181
Multiple output signals: one system for both level detection and continuous level monitoring | Low maintenance and quick commissioning without calibration | High flexibility due to cutable probe | Compact, rotatable display housing ensures easy installation | Small inactive areas, ideal for small containers | Process temperature to 212 °F | Process pressure up to 145 psi | Coaxial tubes available for non-metallic tanks | IO-Link 1.1 | 12…30 VDC | 1 × analog output 4… 20 mA/0… 10 V (automatic switchover depending on load) | 1 × transistor output (PNP) or IO-Link | 3 × transistor output (PNP/NPN switchable) | Dielectric constant: ≥ 5 for mono-rod probe/rope probe or ≥ 1.8 with coaxial tube | Process connection NPT 3/4" male thread | Probe length 1000 mm
| Ambient temperature | -20…+60 °C |
|---|---|
| Communication Protocol | IO-Link |
| Country of origin | DE |
| Current output | 4…20 mA |
| Detection type | medium contact |
| EAN | 4047101519136 |
| Electrical connection | Connector, M12 × 1 |
| Housing material | Plastic, PBT |
| Materials (contact with media) | Stainless steel 1.4404 (AISI 316L), PTFE, FKM |
| Measuring principle | Guided microwave |
| Medium | liquids |
| Medium temperature | -20…+100 °C |
| Operating voltage | 12…30 VDC |
| Output function | NO/NC, PNP/NPN, analog output |
| Pressure resistance | -1…10 bar |
| Probe length (L) | 1000 mm |
| Process Connection | 3/4″ NPT male thread |
| Protection class | IP67 |
| Voltage output | 0…10 V |
| Weight | 1000 g |
Frequently Asked Questions
How do I get pricing for 100015808?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the 100015808?
100015808 is a Turck part. KKM Solutions sources Turck components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
What are the key specifications of 100015808?
Key specifications include Ambient temperature: -20…+60 °C; Communication Protocol: IO-Link; Country of origin: DE; Current output: 4…20 mA. The full specification table on this page lists every published attribute for this part.
How quickly can 100015808 ship?
In-stock items are dispatched the same business day for orders placed by 3 PM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Related Products
Turck Turck LS-534-1000-LIU22PN8X-H1151
Turck Turck LS-551-1000-LIU24PN8X-H1181
Turck Turck LS-551-1000-LIU22PN8X-H1151
Turck Turck PT2PSIG-1503-U3-H1141/D840

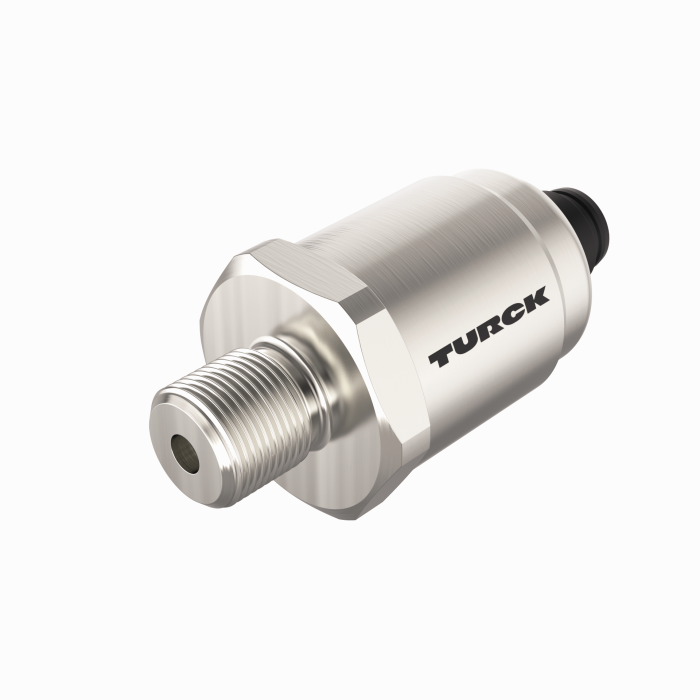

Turck Turck PT0.3V-1503-I2-H1143/D840
