Turck PT0.3R-1504-I2-H1143/D840
Overview
Ceramic measuring cell | Extremely high measuring accuracy | Compact and robust design | Excellent temperature behavior | Pressure range 0…300 mbar rel. | 10…30 VDC | Analog output 4…20 mA | Process connection G1/4″ male thread (back sealing) according to DIN EN ISO 1179-2 with FPM profile sealing ring | Connector device, M12 × 1
Specifications
| Ambient temperature | -25…+85 °C |
|---|---|
| Country of origin | CH |
| Current output | 4…20 mA |
| Design | Without display |
| EAN | 4047101511987 |
| Electrical connection | Connector, M12 × 1 |
| Electrical output | Current output (2-wire) |
| Housing material | Stainless-steel/Plastic, 1.4404 (AISI 316L)/polyarylamide 50 % GF UL 94 V-0 |
| Material pressure transducer | Ceramic Al₂O₃ |
| Medium temperature | -15…+85 °C |
| Operating voltage | 10…30 VDC |
| Pressure range bar | 0…0.3 bar |
| Pressure range psi | 0…4.35 psi |
| Pressure type | Relative pressure |
| Process Connection | G1/4″ male thread (back sealing) according to DIN EN ISO 1179-2 with FPM profile sealing ring |
| Protection class | IP67 |
| Weight | 89 g |
Product details
| Manufacturer | Turck |
|---|---|
| Manufacturer part number | 100008535 |
| KKM catalog reference | TURCK-100008535 |
| Product category | Pressure Sensors & Transmitters |
| Published specifications | 17 attributes listed |
| Related part numbers | 16 other part numbers in this family |
Request a quote for this part
Email [email protected] or call (825) 454-5367 for pricing and availability.
Frequently Asked Questions
How do I get pricing for 100008535?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email [email protected], and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the 100008535?
100008535 is a Turck part. KKM Solutions sources Turck components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
What is the lifecycle status of 100008535?
We do not hold a published lifecycle status for 100008535. Turck's publishes whether a catalog number is current, superseded or end-of-life on its own product page, and our order desk confirms the current status with the manufacturer at quote time — you are told if the part is superseded or discontinued before you commit. Either way we source current-production, superseded and long-obsolete parts the same way; where a part is genuinely unavailable we identify a form-fit-function equivalent. Send the part number through the quote form on this page, or use our obsolete part lookup at https://kkmsolutions.com/tools/obsolete-part-lookup/.
What are the key specifications of 100008535?
Key specifications include Ambient temperature: -25…+85 °C; Country of origin: CH; Current output: 4…20 mA; Design: Without display. The full specification table on this page lists every published attribute for this part.
How quickly can 100008535 ship?
In-stock items are dispatched the same business day for orders placed by 11 AM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Variants & Related Part Numbers
Other Turck part numbers in this family:
Related Products
Turck Turck PS510-600-03-2UPN8-H1141/X
Turck Turck PT0.25R-1001-I2-H1141
Turck Turck PS510-250-03-2UPN8-H1141/X
Turck Turck PS510-100-03-2UPN8-H1141/X
Turck Turck PS510-25V-03-2UPN8-H1141/X

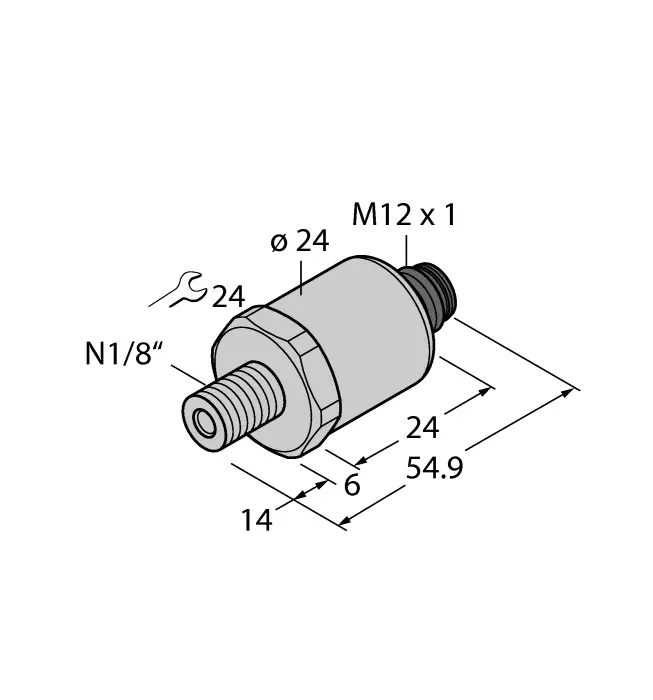

Turck Turck PT6A-1014-U6-H1143
