Turck TTMS-206TA-G1/2-LI6-H1140-L250-50/150
Miniature design | Analog output 4…20 mA | Factory setting -50 °C…150 °C | Process connection G1/2", male thread | Bendable probe (min. bending radius: 3x outer diameter; excluding 30-mm probe tip) | Probe tapered from 6 mm to 4.4 mm
| Ambient temperature | -40…+80 °C |
|---|---|
| Approvals | CE |
| Country of origin | IT |
| Current output | 4…20 mA |
| Design | Without display (integrated probe) |
| Detection type | medium contact |
| EAN | 4047101506334 |
| Electrical connection | Connector, M12 × 1 |
| Electrical output | Current output (2-wire) |
| Housing material | Stainless steel, 1.4404 (AISI 316L) |
| Measuring element | Pt1000 |
| Measuring range | -50…150 °C |
| Operating voltage | 5…32 VDC |
| Process Connection | G 1/2″ male thread |
| Protection class | IP67 |
| Weight | 131 g |
Frequently Asked Questions
How do I get pricing for 100005553?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the 100005553?
100005553 is a Turck part. KKM Solutions sources Turck components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
What are the key specifications of 100005553?
Key specifications include Ambient temperature: -40…+80 °C; Approvals: CE; Country of origin: IT; Current output: 4…20 mA. The full specification table on this page lists every published attribute for this part.
How quickly can 100005553 ship?
In-stock items are dispatched the same business day for orders placed by 3 PM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Related Products

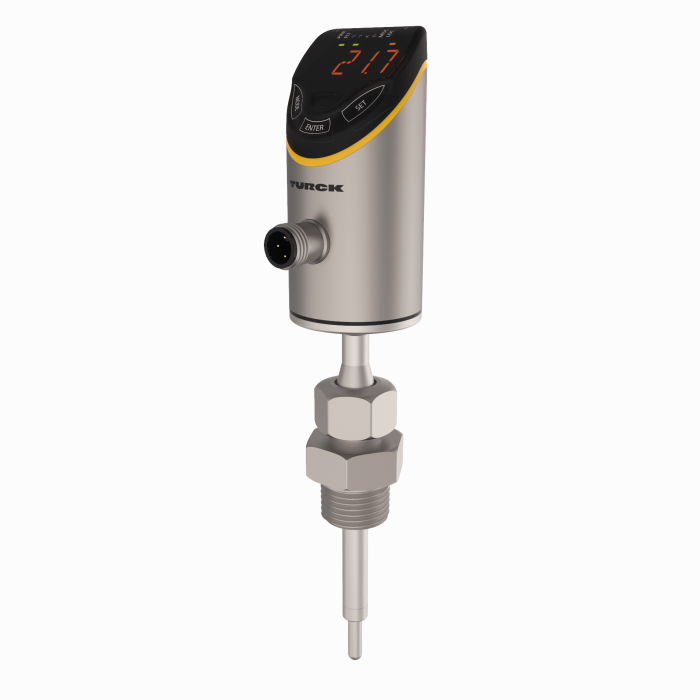

Turck Turck TS700-L050-16-LI2UPN8-H1141
Turck Turck TS700-L050-30-LI2UPN8-H1141

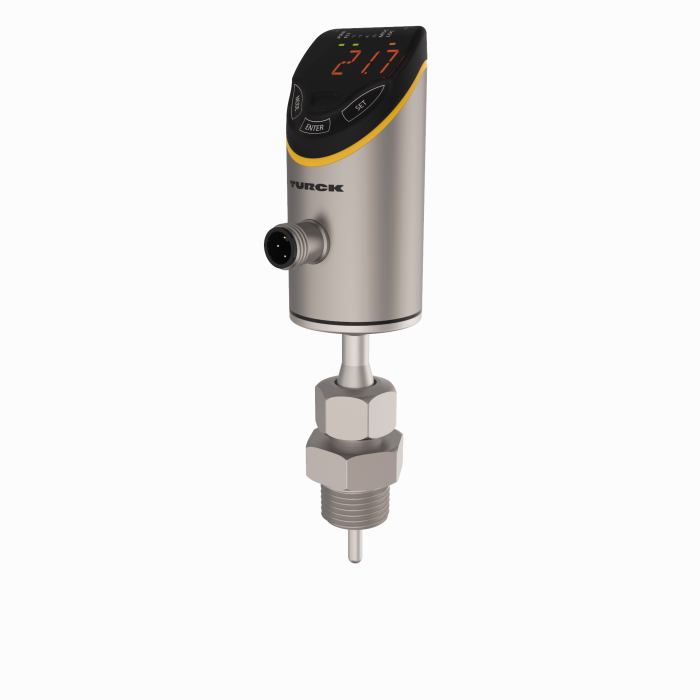

Turck Turck TS700-L016-16-LI2UPN8-H1141
