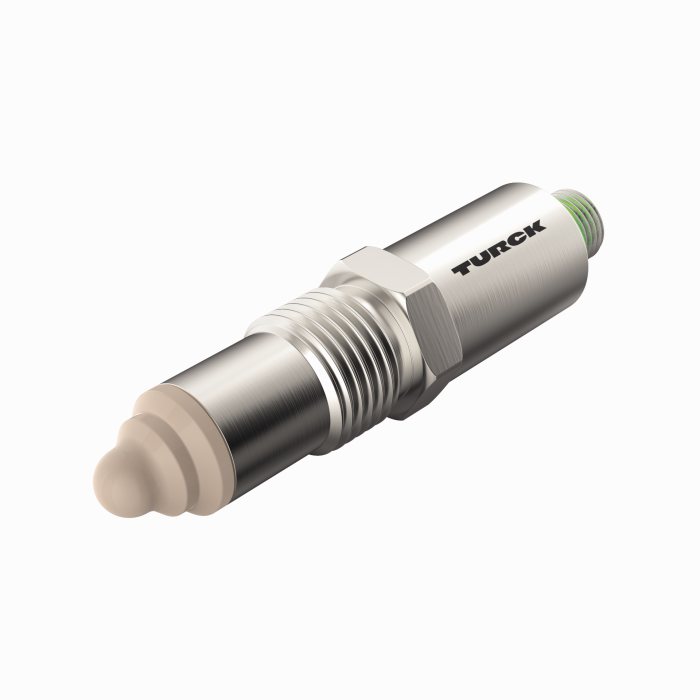

Turck NCLS-30-UN6X-H1141
Overview
Media-contacting detection of limit levels in tanks and pipes | Detection of different substances (liquid, viscous, granular, powder form) | Hygienic PEEK tip, CIP/SIP compatible | EHEDG certified (with NCLS-WA1 process adapter) | Highly visible ring LED | 12…32 VDC, power consumption: typically 1 W, max. 3 W | Two digital outputs, separately adjustable as NO/NC | PNP, NPN or push-pull, switchable | IO-Link for parameterization/process values | Process connection G1/2" male thread, hygienic (in combination with TURCK adapters) | 4-pin connector device, M12 × 1
Specifications
| Ambient temperature | -10…+70 °C |
|---|---|
| Approvals | CE, EHEDG |
| Communication Protocol | IO-Link |
| Construction size | G 1/2″ |
| Country of origin | DE |
| Design | Threaded barrel |
| EAN | 4047101496741 |
| Electrical connection | Connector, M12 × 1 |
| Function | Level detection |
| Housing material | Stainless steel, 1.4404 (AISI 316L) |
| Operating voltage | 12…32 VDC |
| Output function | NO/NC, NPN |
| Protection class | IP67/IP69K |
| Weight | 146 g |
Product details
| Manufacturer | Turck |
|---|---|
| Manufacturer part number | 100004249 |
| KKM catalog reference | TURCK-100004249 |
| Product category | Capacitive Proximity Sensors |
| Published specifications | 14 attributes listed |
| Related part numbers | 17 other part numbers in this family |
Request a quote for this part
Email [email protected] or call (825) 454-5367 for pricing and availability.
Frequently Asked Questions
How do I get pricing for 100004249?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email [email protected], and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the 100004249?
100004249 is a Turck part. KKM Solutions sources Turck components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
What is the lifecycle status of 100004249?
We do not hold a published lifecycle status for 100004249. Turck's publishes whether a catalog number is current, superseded or end-of-life on its own product page, and our order desk confirms the current status with the manufacturer at quote time — you are told if the part is superseded or discontinued before you commit. Either way we source current-production, superseded and long-obsolete parts the same way; where a part is genuinely unavailable we identify a form-fit-function equivalent. Send the part number through the quote form on this page, or use our obsolete part lookup at https://kkmsolutions.com/tools/obsolete-part-lookup/.
What are the key specifications of 100004249?
Key specifications include Ambient temperature: -10…+70 °C; Approvals: CE, EHEDG; Communication Protocol: IO-Link; Construction size: G 1/2″. The full specification table on this page lists every published attribute for this part.
How quickly can 100004249 ship?
In-stock items are dispatched the same business day for orders placed by 11 AM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Variants & Related Part Numbers
Other Turck part numbers in this family:
Related Products
Turck Turck NCLS-30-UP6X-H1141

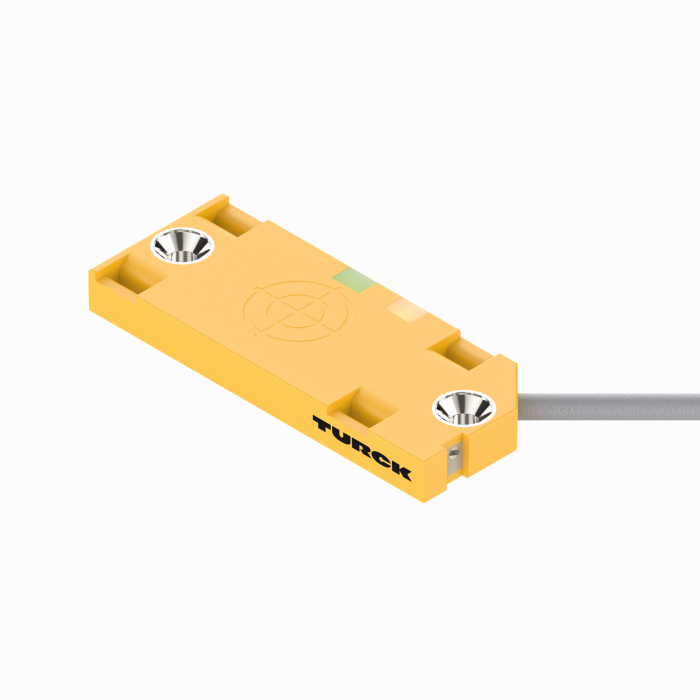

Turck Turck BCE10-QF5.5-AP6X2
