Turck PT15PSIV-2003-I2-H1144
Turck 100003868 - Pressure Sensors - Weight: 92 g; Ambient temperature: -30…+85 °C; Housing material: Stainless-steel/Plastic, 1.4404 (AISI 316L)/polyarylamide 50 % GF UL 94 V-0.
Overview

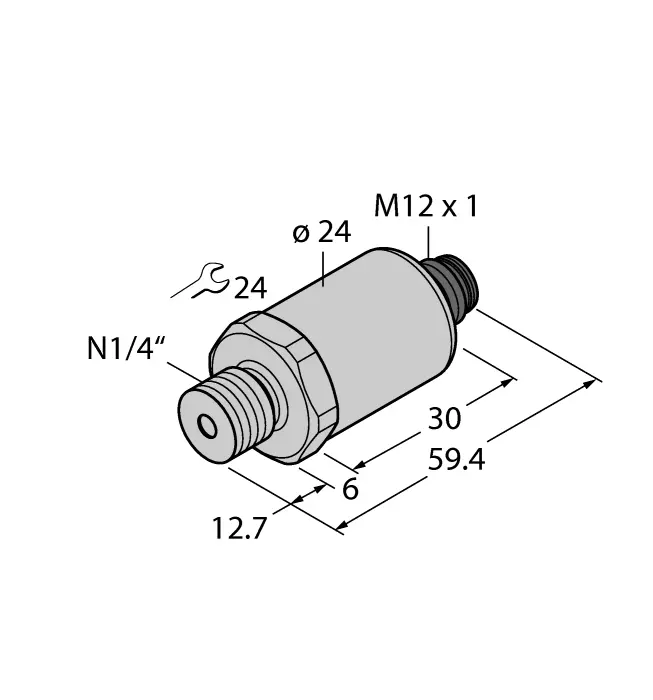

Fully welded metal measuring cell | Pressure range -15…15 psi rel. | 7…33 VDC | Analog output 4…20 mA | Process connection 1/4"-18 NPT male thread | Plug-in device, M12 × 1. Turck 100003868 — Pressure Sensors. Specs: Weight: 92 g · Ambient temperature: -30…+85 °C · Electrical connection: Connector, M12 × 1 · Protection class: IP67 · Operating voltage: 7…33 VDC · Design: Without display · Process Connection: 1/4″ NPT-18 male thread · Country of origin: CH. Quoted per order by KKM Solutions.
Specifications
| Ambient temperature | -30…+85 °C |
|---|---|
| Approvals | CE, Metrological certification (RUS), cULus |
| Country of origin | CH |
| Current output | 4…20 mA |
| Design | Without display |
| EAN | 4047101488517 |
| Electrical connection | Connector, M12 × 1 |
| Electrical output | Current output (2-wire) |
| Housing material | Stainless-steel/Plastic, 1.4404 (AISI 316L)/polyarylamide 50 % GF UL 94 V-0 |
| Material pressure transducer | Stainless steel 1.4016 (AISI 430) |
| Medium temperature | -40…+135 °C |
| Operating voltage | 7…33 VDC |
| Pressure range bar | -1.03…1.03 bar |
| Pressure range psi | -15…15 psi |
| Pressure type | Relative pressure |
| Process Connection | 1/4″ NPT-18 male thread |
| Protection class | IP67 |
| Weight | 92 g |
Product details
| Manufacturer | Turck |
|---|---|
| Manufacturer part number | 100003868 |
| KKM catalog reference | TURCK-100003868 |
| Product category | Pressure Sensors & Transmitters |
| Published specifications | 18 attributes listed |
| Related part numbers | 17 other part numbers in this family |
Request a quote for this part
Email [email protected] or call (825) 454-5367 for pricing and availability.
Frequently Asked Questions
How do I get pricing for 100003868?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email [email protected], and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the 100003868?
100003868 is a Turck part. KKM Solutions sources Turck components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
What is the lifecycle status of 100003868?
We do not hold a published lifecycle status for 100003868. Turck's publishes whether a catalog number is current, superseded or end-of-life on its own product page, and our order desk confirms the current status with the manufacturer at quote time — you are told if the part is superseded or discontinued before you commit. Either way we source current-production, superseded and long-obsolete parts the same way; where a part is genuinely unavailable we identify a form-fit-function equivalent. Send the part number through the quote form on this page, or use our obsolete part lookup at https://kkmsolutions.com/tools/obsolete-part-lookup/.
What are the key specifications of 100003868?
Key specifications include Ambient temperature: -30…+85 °C; Approvals: CE, Metrological certification (RUS), cULus; Country of origin: CH; Current output: 4…20 mA. The full specification table on this page lists every published attribute for this part.
How quickly can 100003868 ship?
In-stock items are dispatched the same business day for orders placed by 11 AM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
