Swagelok SS-45S8-SG — 2-Way Straight Pattern
Swagelok SS-45S8-SG - 2-Way Straight Pattern - Body material: 316 Stainless Steel; Connection 1 Type: Swagelok® Tube Fitting; Connection 2 Type: Swagelok® Tube Fitting.
The Swagelok SS-45S8-SG is part of the 2-Way Straight Pattern range in our industrial catalog. The manufacturer's published data for this part number specifies Body material: 316 Stainless Steel and Connection 1 Type: Swagelok® Tube Fitting.
Published specifications for this part include Connection 2 Type: Swagelok® Tube Fitting; Handle Color: Black; Handle Style: Lever; Cleaning Process: Standard Cleaning and Packaging (SC-10); Connection 1 Size: 1/2 in.; Connection 2 Size: 1/2 in.; Testing: Testing according to WS-22; CV Maximum: 12; Room Temperature Pressure Rating: 2500 PSIG @ 100°F /172 BAR @ 37°C; Low Emissions Certified: Yes; Ball/Stem Material: Alloy 400; Flow Path: Standard. See the Specifications tab on this page for the full technical table.
| Ball/Stem Material | Alloy 400 |
|---|---|
| Body material | 316 Stainless Steel |
| Cleaning Process | Standard Cleaning and Packaging (SC-10) |
| Connection 1 Size | 1/2 in. |
| Connection 1 Type | Swagelok® Tube Fitting |
| Connection 2 Size | 1/2 in. |
| Connection 2 Type | Swagelok® Tube Fitting |
| CV Maximum | 12 |
| Flow Path | Standard |
| Flow Pattern | 2-Way, Shutoff, Straight |
| Handle Color | Black |
| Handle Style | Lever |
| Low Emissions Certified | Yes |
| Orifice | 0.406 in /10.3 mm |
| Packing Material | Modified PTFE UHMWPE |
| Ring/Disc Material | PTFE-Coated Stainless Steel |
| Room Temperature Pressure Rating | 2500 PSIG @ 100°F /172 BAR @ 37°C |
| Service Class | General |
| Testing | Testing according to WS-22 |
Request a quote for this part
Email [email protected] or call (825) 454-5367 for pricing and availability.
Frequently Asked Questions
How do I get pricing for SS-45S8-SG?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email [email protected], and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the SS-45S8-SG?
SS-45S8-SG is a Swagelok part. KKM Solutions sources Swagelok components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
Is SS-45S8-SG discontinued, and can I still get one?
KKM Solutions does not publish a manufacturer lifecycle status for SS-45S8-SG — check Swagelok's own product page for whether it is current, superseded, or end-of-life. It does not change what we can do: we source current-production, superseded and long-obsolete parts the same way, and where a part is genuinely unavailable we identify a form-fit-function equivalent. Send the part number through the quote form on this page, or use our obsolete part lookup at https://kkmsolutions.com/tools/obsolete-part-lookup/.
What are the key specifications of SS-45S8-SG?
Key specifications include Ball/Stem Material: Alloy 400; Body material: 316 Stainless Steel; Cleaning Process: Standard Cleaning and Packaging (SC-10); Connection 1 Size: 1/2 in.. The full specification table on this page lists every published attribute for this part.
How quickly can SS-45S8-SG ship?
In-stock items are dispatched the same business day for orders placed by 11 AM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Variants & Related Part Numbers
Other Swagelok part numbers in this family:
- SS-45S12 — Swagelok Stainless Steel 1-Piece 40 Series Ball Valve, 6.4 Cv, 3/4 in.…
- SS-45S12-A — Swagelok Stainless Steel 1-Piece 40 Series Angle Pattern Ball Valve, 3.8 Cv,…
- SS-45S12MM — Swagelok Stainless Steel 1-Piece 40 Series Ball Valve, 12 Cv, 12 mm…
- SS-45S8 — Swagelok Stainless Steel 1-Piece 40 Series Ball Valve, 12 Cv, 1/2 in.…
- SS-45S8-1466 — Swagelok Stainless Steel 1-Piece 40 Series Ball Valve, 12 Cv, 1/2 in.…
- SS-45S8-33C — Swagelok Stainless Steel 1-Piece 40 Series Ball Valve, 12 Cv, 1/2 in.…
- SS-45S8-A — Swagelok Stainless Steel 1-Piece 40 Series Angle Pattern Ball Valve, 4.6 Cv,…
- SS-45S8-LL — Swagelok Stainless Steel 1-Piece 40 Series Ball Valve, 12 Cv, 1/2 in.…
- SS-45S8-SC11 — Swagelok Stainless Steel 1-Piece 40 Series Ball Valve, 12 Cv, 1/2 in.…
Related Products
Swagelok Swagelok Stainless Steel 1-Piece 40 Series Ball Valve, 6.0…
Swagelok Swagelok Stainless Steel 1-Piece 40 Series Ball Valve, 3.0…

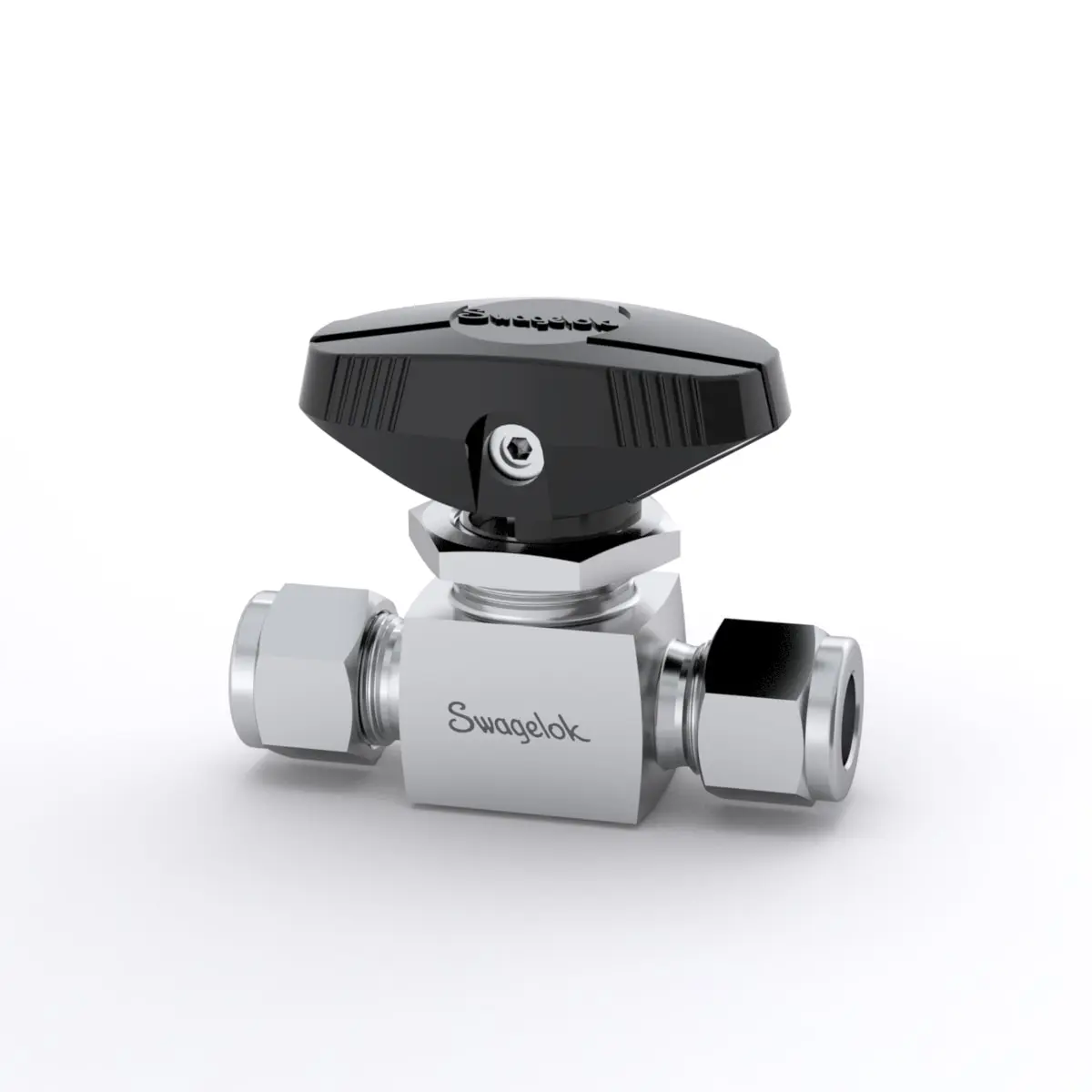

Swagelok Swagelok Stainless Steel 1-Piece 40G Series Ball Valve, 1.5…
