596647960 Stearns • Brake No. 4 Coil Kit (200-240V), # 5-96-6479-60
Overview
GENIUNE STEARNS REPLACEMENT COIL KIT No. 596647960Coil Part No. 6M4-H3-LA-323-00, 6M4H3LA32300, 10874468 No. 6 Coil Kit Kit Includes New Encapsulated Coil, New Plunger Guide and Instructions 200-240 Volt 50/60 HZ Class H Insulation New Engineered Polymer Plunger Guide Certified UL rated for cULus and cURus Fits: 48,000; 1-048-151; 55,000; 55,200; 55,500; 55,700; 57,500 Series New and Improved DesignStearns has designed a new coil kit to replace the following part numbers below. They have upgraded the coil insulation systems from Class 130(B) to Class 180(H). This will help reduce coil-strength variance, and withstand temperatures up to 38% higher then previous coils with Class B insulation. Upgraded injection molded coil encapsulation increases durability in many different environments. Replaces Coil Kits:596640227, 596645237, 596640237, 596645227Replaces Coil Part No.:634220719004, 634221709004, 634230709004, 634221719004 *Coils are not returnable if package is opened. Coils are part number specific to a particular brake if you are unsure if the coil is correct, please call or email us.
Specifications
| Voltage rating | 200-240V |
|---|
Product details
| Manufacturer | Stearns |
|---|---|
| Manufacturer part number | 596647960 |
| KKM catalog reference | STEARNS-596647960 |
| Product category | Motor Brakes & Accessories |
| Published specifications | 1 attribute listed |
| Related part numbers | 16 other part numbers in this family |
Request a quote for this part
Email [email protected] or call (825) 454-5367 for pricing and availability.
Frequently Asked Questions
How much does 596647960 cost?
596647960 is listed at CA$625.70 (CAD) and can be ordered directly from this page with Add to Cart. That figure is a reference price and can change: your card is authorized at checkout and charged only once our order desk confirms the part, stock, and final price, and we email you first if anything has moved. Larger quantities or custom terms — email [email protected] for a volume quote.
Who manufactures the 596647960?
596647960 is a Stearns part. KKM Solutions sources Stearns components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
What is the lifecycle status of 596647960?
We do not hold a published lifecycle status for 596647960. Stearns's publishes whether a catalog number is current, superseded or end-of-life on its own product page, and our order desk confirms the current status with the manufacturer at quote time — you are told if the part is superseded or discontinued before you commit. Either way we source current-production, superseded and long-obsolete parts the same way; where a part is genuinely unavailable we identify a form-fit-function equivalent. Send the part number through the quote form on this page, or use our obsolete part lookup at https://kkmsolutions.com/tools/obsolete-part-lookup/.
How quickly can 596647960 ship?
In-stock items are dispatched the same business day for orders placed by 11 AM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Variants & Related Part Numbers
Other Stearns part numbers in this family:
Related Products
Stearns 596647952 Stearns Brake No. 4 Coil Kit (115 Volts…

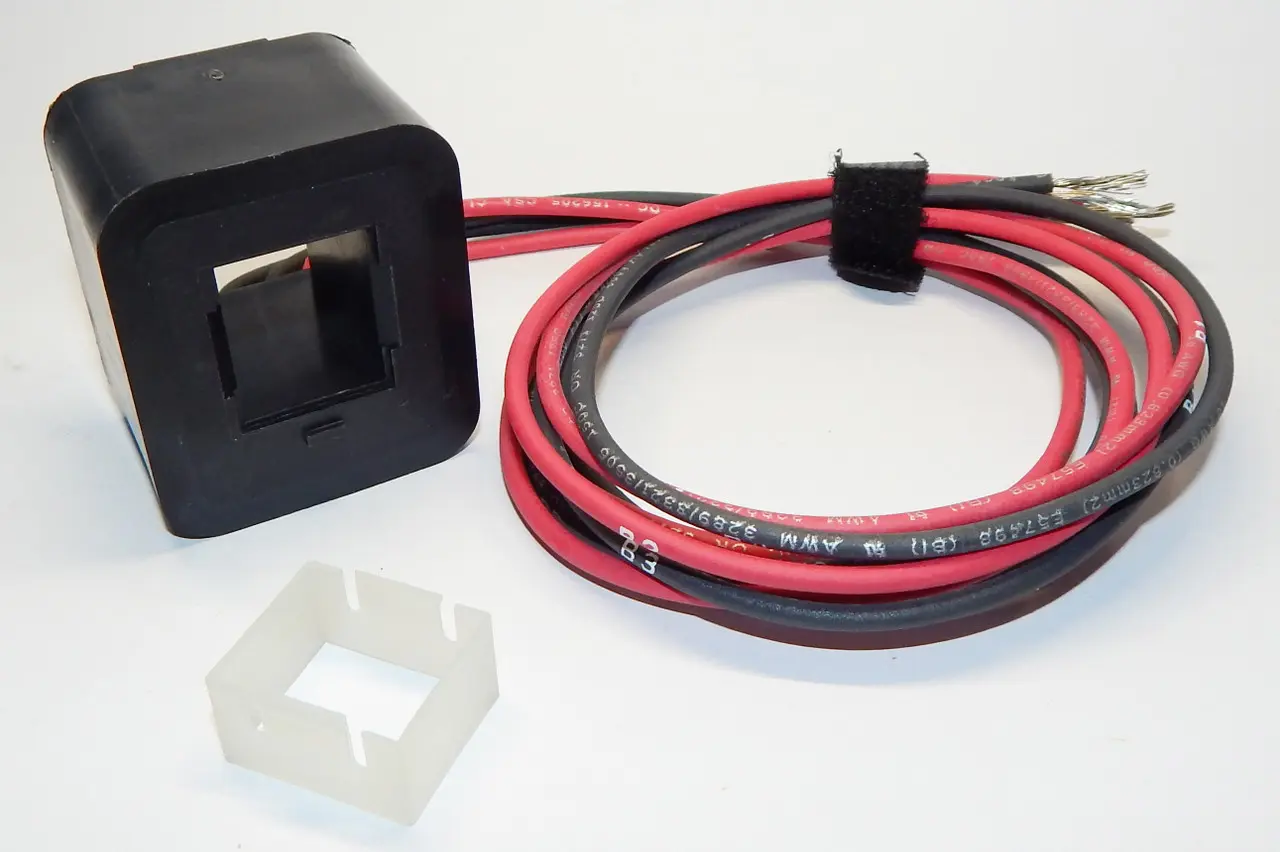

Stearns 596647986 Stearns Brake No. 4 Coil Kit (208-230/460V), #…
Stearns 566847500 Stearns Brake Friction Disc (8-004-710-00) # 5-66-8475-00

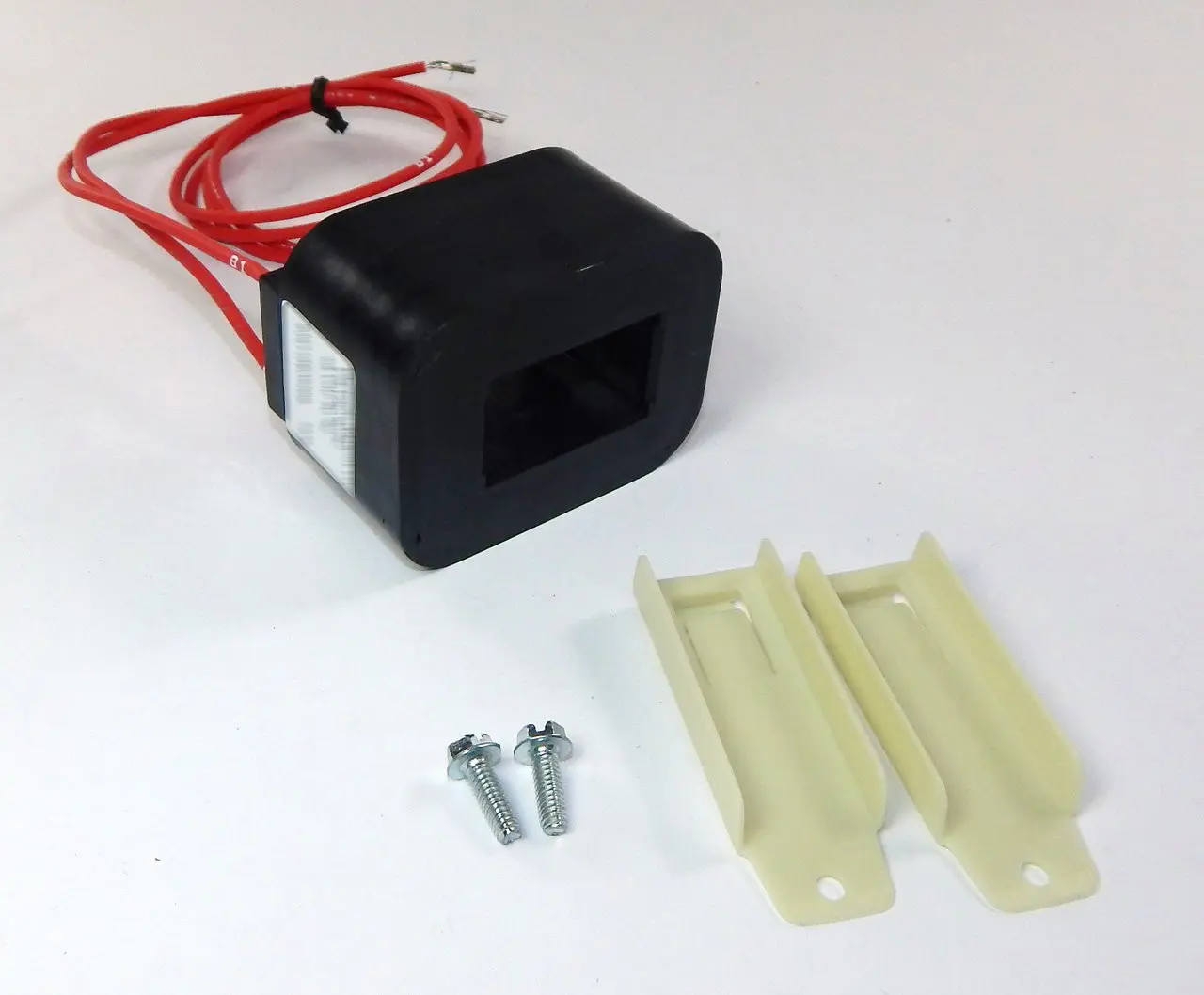

Stearns 596660948 • Stearns Brake No. 6 Coil Kit (415V…
Stearns 566847200 Stearns Brake Friction Disc (8-004-701-00) # 5-66-8472-00

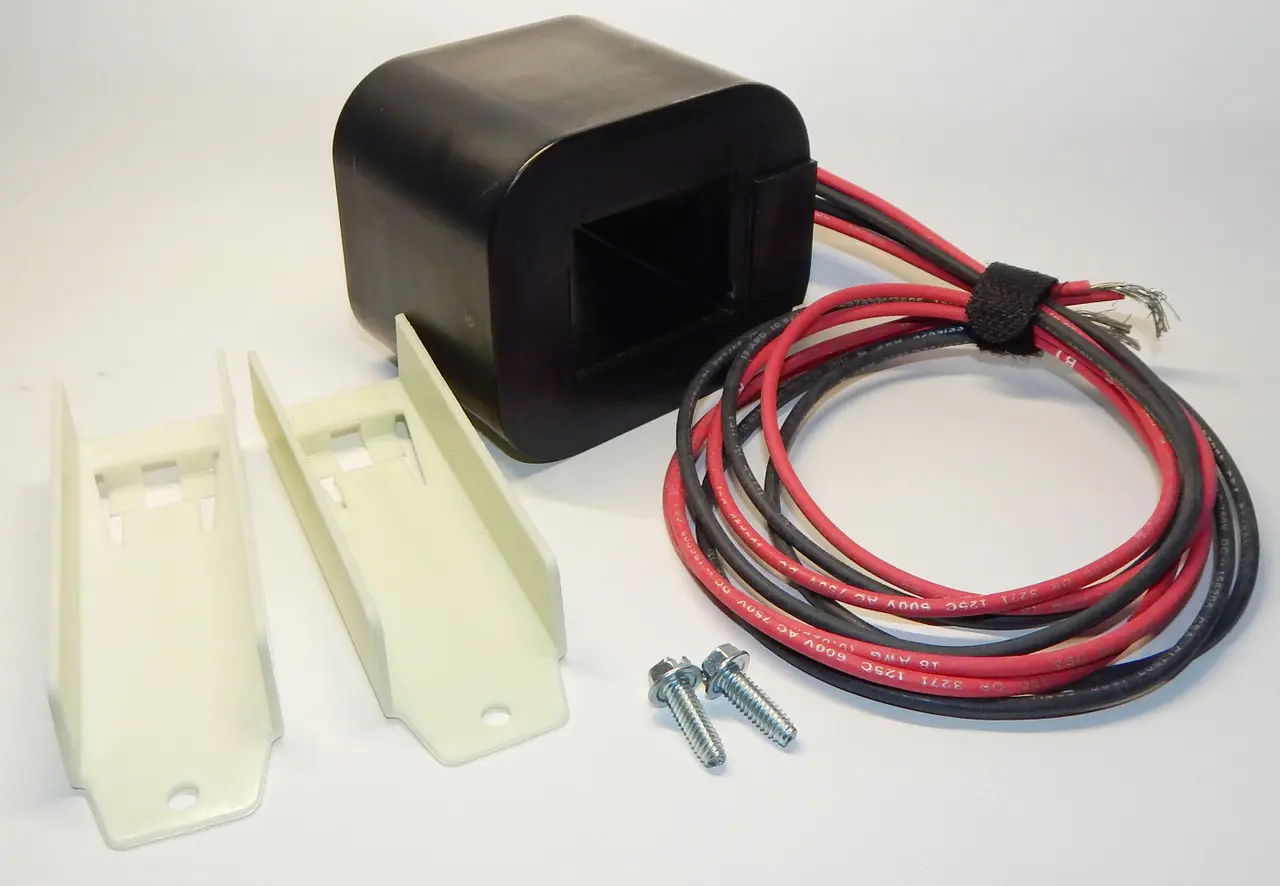

Stearns 596680969 Stearns Brake No. 8 Coil Kit (230/460V 50/60hz),…
