SPERONI VSS 4-6 Vertical Multistage Centrifugal Pump, 3HP, 2400GPH, 230V, 3PHASE, Model , SS304
KKM Solutions is an independent parts distributor, not an authorized SPERONI dealer — how we source.
Features Universal pumps for domestic or municipal water supply systems, for clean non-explosive liquids without solid or abrasive substances, for agricultural irrigation and sports application, for civil and industrial use, boiler feeding and condensate systems and for high pressure washing plants.
Overview
Part number SPERONI VSS 4-6 from SPERONI, listed in Pumps. Specifications on file: AC voltage 208V - 230V; Brands Speroni; category ac pumps Vertical Multistage Pumps; Horse power Ac 3 hp. KKM Solutions quotes this part with pricing and availability confirmed per order.
Operating Conditions Liquid temperature up to 230°F. Ambient temperature up to 104°F. Max working pressure: 360 PSI. Motor Two-Pole induction motor (n = 3450 min-1). Insulation Class F. Protection IP 55. Materials Suction casing : Stainless Steel Aisi 304. Delivery casing : Stainless Steel Aisi 304. Impeller : Stainless Steel Aisi 304. External jacket : Stainless Steel Aisi 304. Counter flanges : Stainless Steel Aisi 304. Upper cover : Stainless Steel Aisi 304. Pump shaft : Stainless Steel Aisi 303. Mechanical seal : Silicon/Graphite. Performance Curve Type Motor Pump Nominal Power (P2) Volt Phase Ampere Q = Capacity HP KW V PH A Gal/Min 8.8 11 13.2 17.6 22 26.4 30.8 35.2 39.6 VSS 4-6 3 2.2 230V 3 5.3 Ft. – 255.9 246.1 236.2 219.8 193.6 177.2 154.2 108.3 Dimensions Size (mm and inch) Weight (lbs.) A H B1 B2 D1 D2 C D E F G H I J K Flange 250 75 404 290 190 155 150 100 210 180 32 32 60 100 140 DN 32 1.25″ 77
Specifications
| AC voltage | 208V - 230V |
|---|---|
| Brands | Speroni |
| category ac pumps | Vertical Multistage Pumps |
| Horse power Ac | 3 hp |
| Material | Stainless Steel 304 |
| Phase | Three Phase |
| Pump Inlet and Outlet_Multistage | 1 1/4" |
Product details
Request a quote for this part
Email orderdesk@kkmsolutions.com or call (825) 454-5367 for pricing and availability.
Frequently Asked Questions
How much does SPERONI VSS 4-6 cost?
SPERONI VSS 4-6 is listed at CA$2,248.90 (CAD) and can be ordered directly from this page with Add to Cart. That figure is a reference price and can change: your card is authorized at checkout and charged only once our order desk confirms the part, stock, and final price, and we email you first if anything has moved. Larger quantities or custom terms — email orderdesk@kkmsolutions.com for a volume quote.
Who manufactures the SPERONI VSS 4-6?
SPERONI VSS 4-6 is a SPERONI part, sourced to the exact manufacturer specification.
What is the lifecycle status of SPERONI VSS 4-6?
No published lifecycle status is on file for SPERONI VSS 4-6. SPERONI lists whether a catalog number is current, superseded or end-of-life on its own product page, and our order desk confirms the status with the manufacturer at quote time, before you commit. Send the part number through the quote form on this page.
What are the key specifications of SPERONI VSS 4-6?
Key specifications include AC voltage: 208V - 230V; Brands: Speroni; category ac pumps: Vertical Multistage Pumps; Horse power Ac: 3 hp. The full specification table on this page lists every published attribute for this part.
How quickly can SPERONI VSS 4-6 ship?
Lead time is quoted per part and confirmed on your quote.
Related Products
SPERONI SPERONI 1.5HP Water Booster Pump with pressure tank ,…
Sea Land SeaLand MonoBlock Centrifugal water pump, 1.5 HP, 220V, 1PHASE,…
SPERONI SPERONI 1.3HP Stainless Steel Water Pressure Booster Pump with…
Sea Land SeaLand MonoBlock Centrifugal water pump, 2HP, 220V, 1PHASE, 60Hz,…
SPERONI SPERONI 1HP Stainless Steel Water Pressure Booster Pump with…

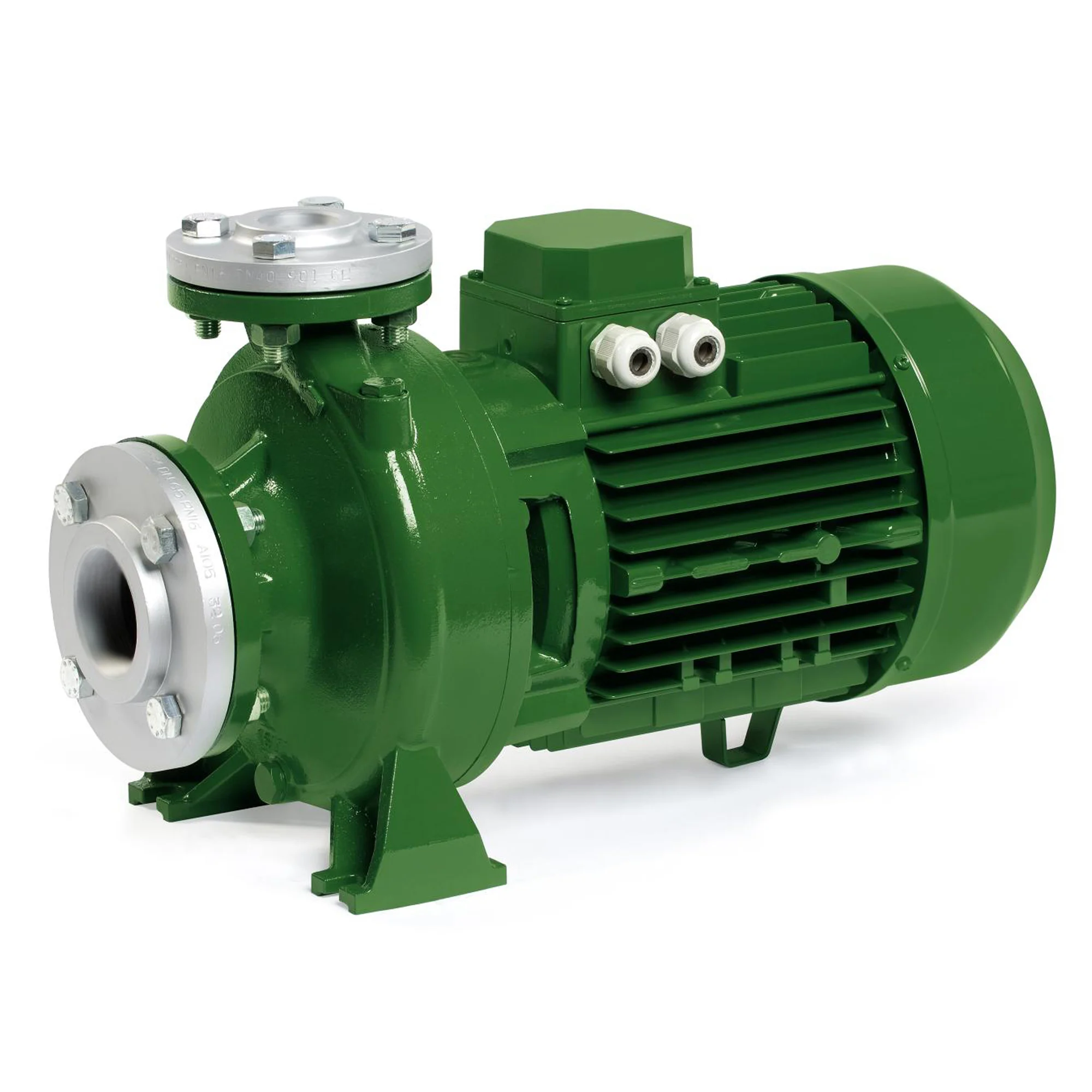

Sea Land SeaLand MonoBlock Centrifugal water pump, 3HP, 220V, 1PHASE, 60Hz,…
