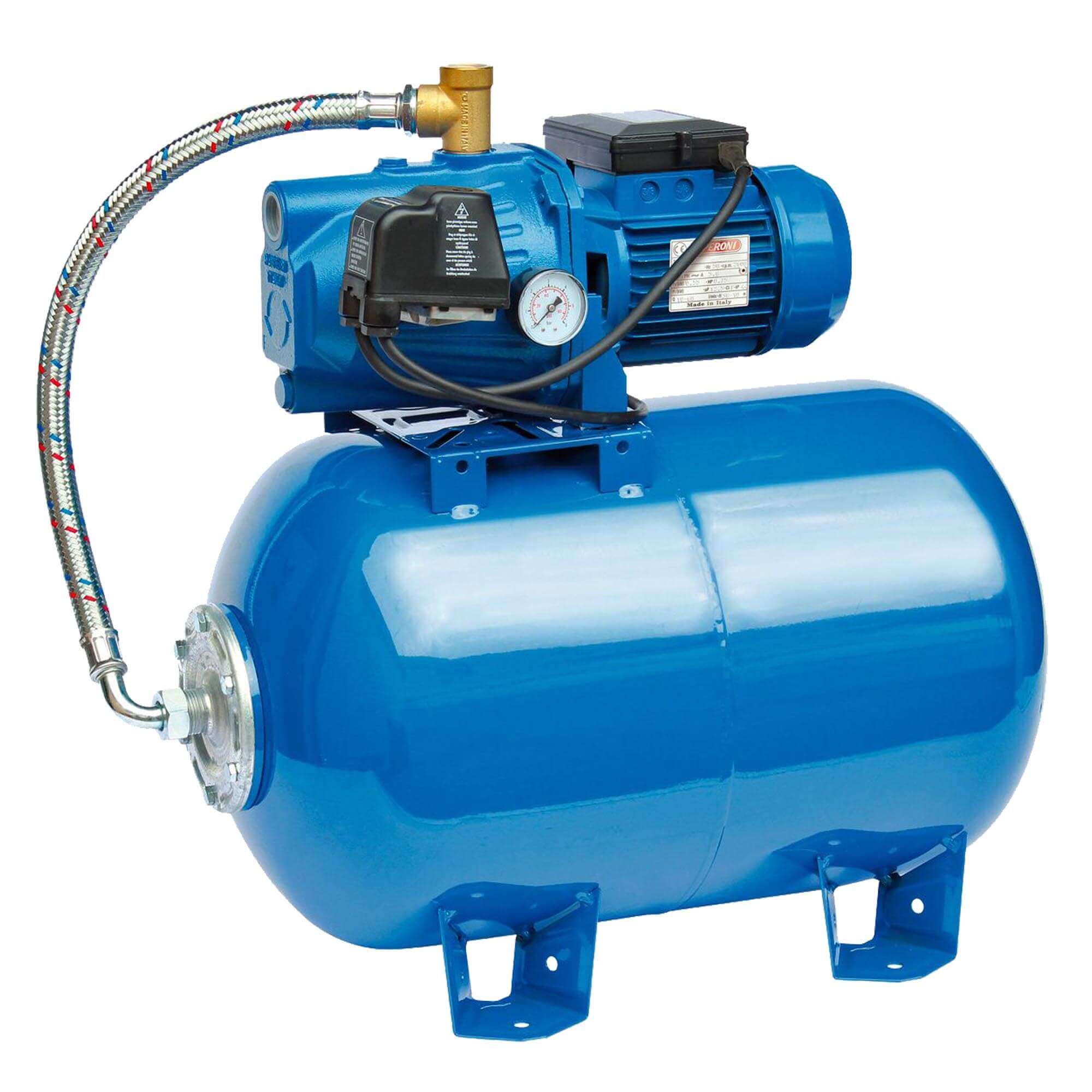

CAM80/22 SPERONI 0.8HP Stainless Steel Water Pressure Booster Pump with pressure tank , 792GPH, 110/220V

Part number CAM80/22 from SPERONI, listed in Pumps. Specifications on file: Brands Speroni; category ac pumps Booster Pumps; Horsepower 0.8hp; Material Tanks Iron. KKM Solutions quotes this part with pricing and availability confirmed per order.

Made in Italy Pump with Pressure Tank APPLICATION Automatic high pressure groups coupled with self priming jet pumps. They are very silent and reliable and particularly suitable to increase pressure from a water system, to supply water from wells and in domestic high pressure groups. OPERATING CONDITIONS Temperature max. liquid: 95° F (for other uses) Ambient temperature up to 104° F Total suction lift up to 8 mt Continuous duty MOTOR Single-phase 110/220V-60Hz Two-Pole induction motor (n = 3450 min-1) Insulation Class F Protection IP 44 MATERIALS Butyl membrane tank Flexible hose with connection Adjusted switch on/off pressure 20-40 psi with cable Pressure gauge Brass connection More Details: Model CAM80/22 Brand SPERONI Manufacturer’s Warranty 1 year Limited Warranty Impeller Material Noryl Port Size (in.) 1 Flow (GPH) 792 HP 0.8 Volts AMP 110/220V – 1 Phase 8.8/3.8 Max. Total Head (ft.) 125 Tank Capacity (gal.) 5.3 Max. Suction Lift (ft.) 26.2 Pressure range on pressure switch (PSI) 20-40 Suction Port (in.) 1 Discharge Port (in.) 1 Self-Priming Yes Dimensions L x W x H (in.) 21.3 x 11 x 19 Product Weight (lbs.) 45 PERFORMANCE CURVE SPARE PARTS
