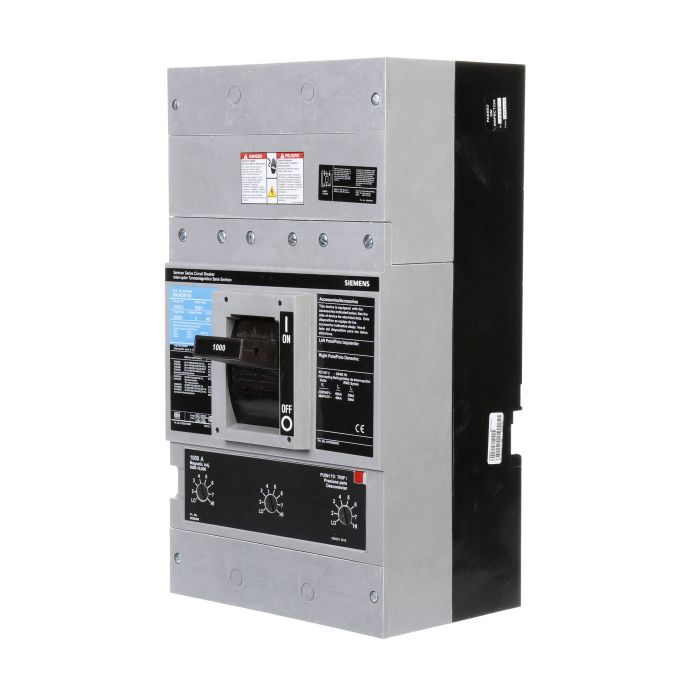

NXD63B100 Siemens Molded Case Circuit Breaker
KKM Solutions is an independent parts distributor, not an authorized Siemens dealer — how we source.
Overview
Part number NXD63B100 from Siemens, listed in Molded Case Circuit Breakers. Specifications on file: AIC Ratings 50kA@480V; Amp 1000; Breaker 3 Pole; Connection Bolt-On. KKM Solutions quotes this part with pricing and availability confirmed per order.
Overview Product Specifications - NXD63B100 - Siemens Molded Case Circuit Breaker Part Number: NXD63B100 Manufacturer: Siemens / ITE Family: Sentron Series Pole: 3 Amp 1000 Volt: 600 Phase: 3 Category: Molded Case / 3-Pole Connection: Bolt-On Type: NXD Functions: LI - Long-Time and Instantaneous Protection: Thermal Magnetic AIC Ratings: 50kA@480V Dimensions Dimensions (HxWxD): 9" x 16" x 6" Standards Product Description - NXD63B100 - Siemens Molded Case Circuit Breaker Siemens Sentron Series, type NXD, 3P, 3PH, 1000A, 600V, 50kA@480V, standard interrupting capacity, 40 degree C, bolt-on, complete with non-interchangeable trip unit, thermal magnetic molded case circuit breakers.
Specifications
| AIC Ratings | 50kA@480V |
|---|---|
| Amp | 1000 |
| Breaker | 3 Pole |
| Connection | Bolt-On |
| Dimensions (HxWxD) | 9" x 16" x 6" |
| Family | Sentron Series |
| Functions | LI - Long-Time and Instantaneous |
| Max Amp | 1000A |
| Phase | 3 |
| Pole | 3 |
| Protection | Thermal Magnetic |
| Size | Full Body |
| Type | NXD |
| Volt | 600 |
| Voltage | 600V |
Product details
| Manufacturer | Siemens |
|---|---|
| Manufacturer part number | NXD63B100 |
| Product category | Molded Case Circuit Breakers |
| Published specifications | 15 attributes listed |
| Related part numbers | 4 other part numbers in this family |
Request a quote for this part
Email orderdesk@kkmsolutions.com or call (825) 454-5367 for pricing and availability.
Frequently Asked Questions
How much does NXD63B100 cost?
NXD63B100 is listed at CA$9,913.19 (CAD) and can be ordered directly from this page with Add to Cart. That figure is a reference price and can change: your card is authorized at checkout and charged only once our order desk confirms the part, stock, and final price, and we email you first if anything has moved. Larger quantities or custom terms — email orderdesk@kkmsolutions.com for a volume quote.
Who manufactures the NXD63B100?
NXD63B100 is a Siemens part, sourced to the exact manufacturer specification.
What is the lifecycle status of NXD63B100?
No published lifecycle status is on file for NXD63B100. Siemens lists whether a catalog number is current, superseded or end-of-life on its own product page, and our order desk confirms the status with the manufacturer at quote time, before you commit. Send the part number through the quote form on this page.
What are the key specifications of NXD63B100?
Key specifications include AIC Ratings: 50kA@480V; Amp: 1000; Breaker: 3 Pole; Connection: Bolt-On. The full specification table on this page lists every published attribute for this part.
What voltage does NXD63B100 use?
Per the published specification for NXD63B100: Voltage: 600V. Confirm against the full specification table on this page, or ask our order desk to verify it with the manufacturer at quote time.
How quickly can NXD63B100 ship?
Lead time is quoted per part and confirmed on your quote.
