Siemens 6SL3210-5FE15-0UF0 Siemens

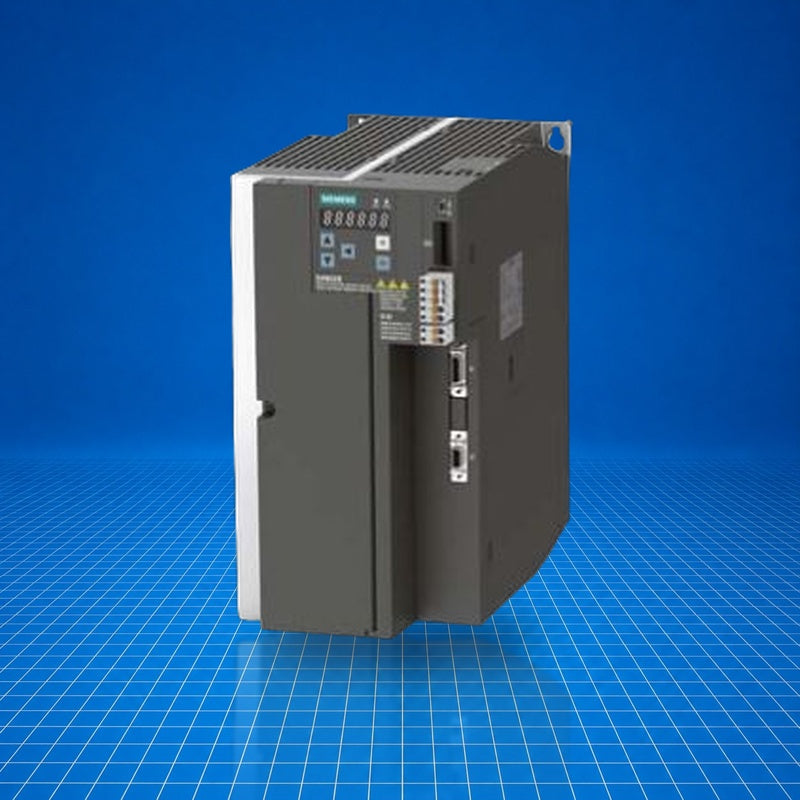

Product Overview The Siemens 6SL3210-5FE15-0UF0 is a SINAMICS V90 servo drive with integrated PROFINET interface, designed for controlling permanent-magnet synchronous motors up to 5 kW. Installed in control cabinets or enclosures with open-type/ IP20 protection, it regulates motor current and speed in industrial motion control systems. Typical applications include machine tools, packaging, and assembly line servo positioning where precise motor control is required. Part number 6SL3210-5FE15-0UF0 is supported by the SINAMICS V90 platform and shares mounting, cooling, and electrical characteristics common to its frame size FSC. Best Suited For Cabinet-mounted servo control for PM synchronous motors PROFINET-based motion integration Applications up to 5 kW motor power Replacement/upgrade within SINAMICS V90 family Industrial positioning systems Rated motor power 5.00 kW Rated current (IN) 12.60 A Max. output current 37.80 A Input voltage 380-480 V AC ±10 %/-15 % Communication interface PROFINET Technical Specifications I/O & Electrical Rated power 5.00 kW Rated current 12.60 A Max. output current 37.80 A Number of digital inputs 4 Number of digital outputs 2 Communication & Power Input voltage 380-480 V AC -15 %/+10 % Line frequency 45-66 Hz Communication PROFINET Physical & Environmental Frame size FSC Degree of protection IP20 / UL open type Net weight 5.65 kg Dimensions (W × H × D) 140 × 260 × 240 mm Ambient temperature, operation 0…45 °C Ambient temperature, storage -40…70 °C Cooling Fan Certifications CE KC cULus EAC C-Tick Compliance with CE, KC, cULus, EAC, C-Tick (RCM).
