Siemens 6ES5244-3AA21 Siemens
Overview
Product Overview The 6ES5244-3AA21 is a Siemens SIMATIC S5 IP 244 temperature control module designed for integration into the S5-115U automation platform. It executes closed-loop temperature regulation using analog inputs, monitoring limits, manipulated outputs, and sequence control via function blocks (FB 162). Installed in buffered-power slots, it integrates into process control architectures such as machine thermal management, injection-molding temperature regulation, or furnace control. 6ES5244-3AA21 links to S5 CPUs through standardized programming and telegram exchange, facilitating modular thermal control. Best Suited For S5-115U systems requiring discrete temperature regulation Applications with analog setpoint and process-value input Closed-loop control using FB 162 function block Retrofit of legacy SIMATIC S5 temperature control modules Module function Temperature control module (IP 244) Platform SIMATIC S5-115U Integration Requires FB 162 for control telegram exchange Mounting requirement Buffered-power slot only Technical Specifications I/O & Electrical Analog input resolution 10 mV (with bridge D) Input voltage range channels 13-14 0…20.48 V (bridge D set) or 0…10.24 V (bridge D not set) Sampling time channels 13-14 960 ms (bridge D), 800 ms (no bridge D) Communication & Power Telegram exchange Via CPU using FB 162 blocks Physical & Environmental Mounting Slot with buffered backup power only
Specifications
| Condition | Surplus - Tested (With Warranty) |
|---|
Product details
| Manufacturer | Siemens |
|---|---|
| Manufacturer part number | 6ES5244-3AA21 |
| KKM catalog reference | SIEMENS-6ES5244-3AA21 |
| Product category | SIMATIC S5 IP 244 temperature module |
| Published specifications | 1 attribute listed |
| Related part numbers | 4 other part numbers in this family |
Request a quote for this part
Email [email protected] or call (825) 454-5367 for pricing and availability.
Frequently Asked Questions
How much does 6ES5244-3AA21 cost?
6ES5244-3AA21 is listed at CA$1,376.53 (CAD) and can be ordered directly from this page with Add to Cart. That figure is a reference price and can change: your card is authorized at checkout and charged only once our order desk confirms the part, stock, and final price, and we email you first if anything has moved. Larger quantities or custom terms — email [email protected] for a volume quote.
Who manufactures the 6ES5244-3AA21?
6ES5244-3AA21 is a Siemens part. KKM Solutions sources Siemens components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
Is 6ES5244-3AA21 discontinued, and can I still get one?
KKM Solutions does not publish a manufacturer lifecycle status for 6ES5244-3AA21 — check Siemens's own product page for whether it is current, superseded, or end-of-life. It does not change what we can do: we source current-production, superseded and long-obsolete parts the same way, and where a part is genuinely unavailable we identify a form-fit-function equivalent. Send the part number through the quote form on this page, or use our obsolete part lookup at https://kkmsolutions.com/tools/obsolete-part-lookup/.
How quickly can 6ES5244-3AA21 ship?
In-stock items are dispatched the same business day for orders placed by 11 AM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Variants & Related Part Numbers
Other Siemens part numbers in this family:

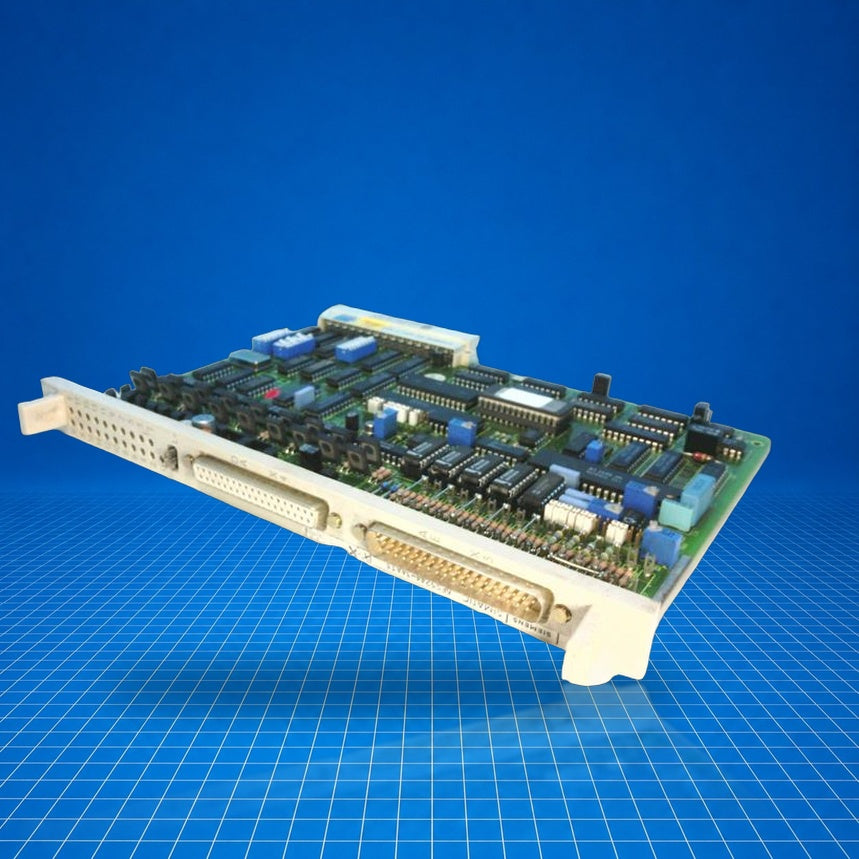

- 6ES5244-3AA13 — Siemens 6ES5244-3AA13 Siemens
- 6ES5244-3AA22 — 6ES5244-3AA22 Siemens
- 6ES5244-3AB3 — Siemens 6ES5244-3AB3 Siemens Never Used Surplus
- 6ES5244-3AB31 — SIEMENS 6ES5 244-3AB31
